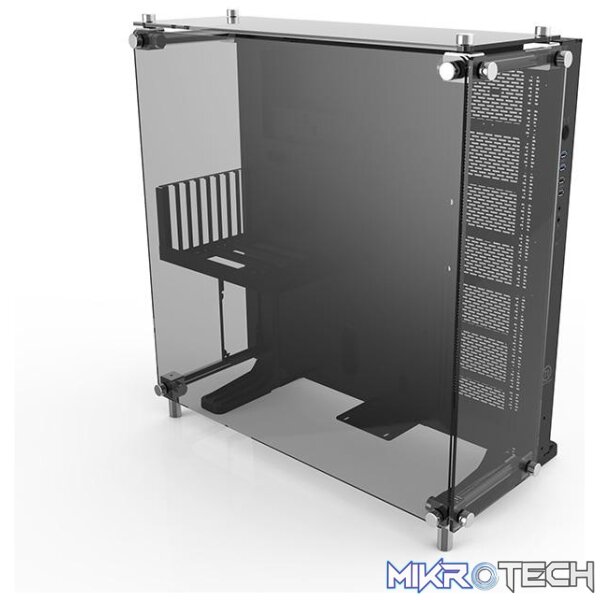

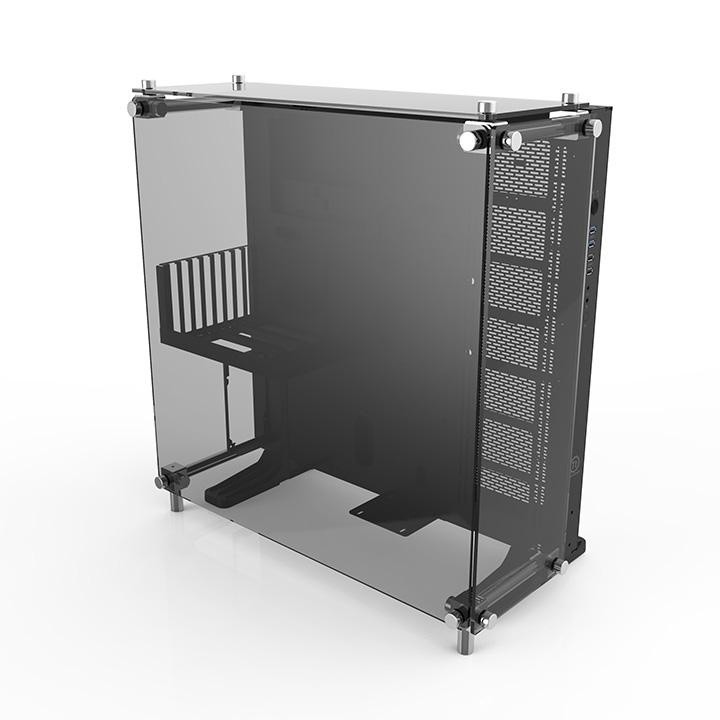

ThermalTake CASE, CORE P5 WALL-MT TG ATX

Description

Series
Core

CASE TYPE
Wall Mount

Dimension (H x W x D)
608 x 333 x 570 mm
(23.9 x 13.1 x 22.4 inch)

NET WEIGHT
16.3 kg

Color
Space Gray

MATERIAL
SGCC

Drive Bays
-Accessible
-Hidden
–
1 x 3.5’’ or 2.5’’ (HDD tray); 2 x 2.5” or 3.5”(HDD Bracket)
3 x 3.5’’ or 2.5’’ (Behind the M/B tray)

EXPANSION SLOTS
8

MOTHERBOARDS
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O Port
USB 3.0 x 4, HD Audio x 1

PSU
Standard PS2 PSU (optional)

FAN SUPPORT
Left Side:
4 x 120mm
3 x 140mm

RADIATOR SUPPORT
Left Side:
1 x 480mm
1 x 420mm

CLEARANCE
CPU cooler height limitation:
180mm
VGA length limitation:
280mm (With Reservoir)
320mm (Without Reservoir)
PSU length limitation:
200mm
