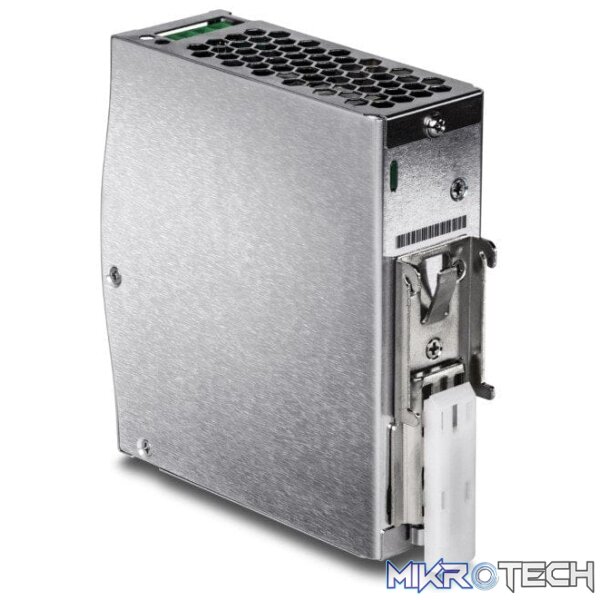

Trendnet 48V 120W Single Output Industrial DIN-Rail Power Supply

Trendnet TI-S12048 120W Single Output Industrial DIN-Rail Power Supply

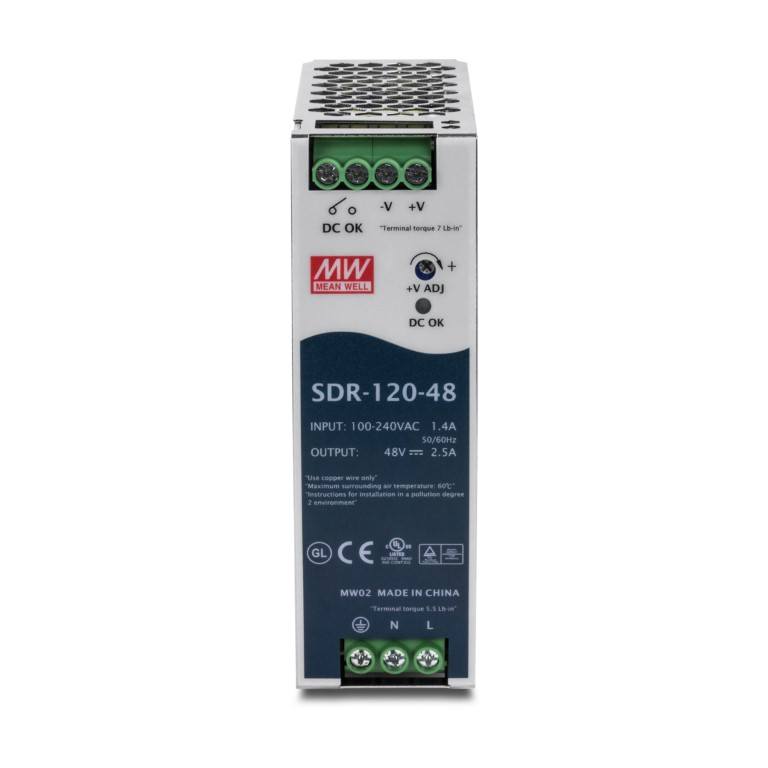

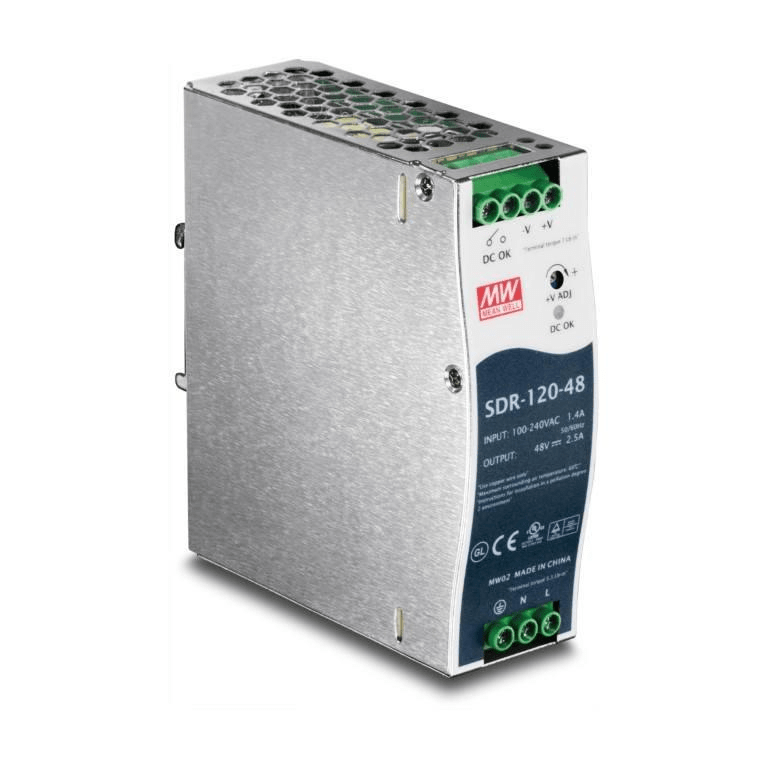

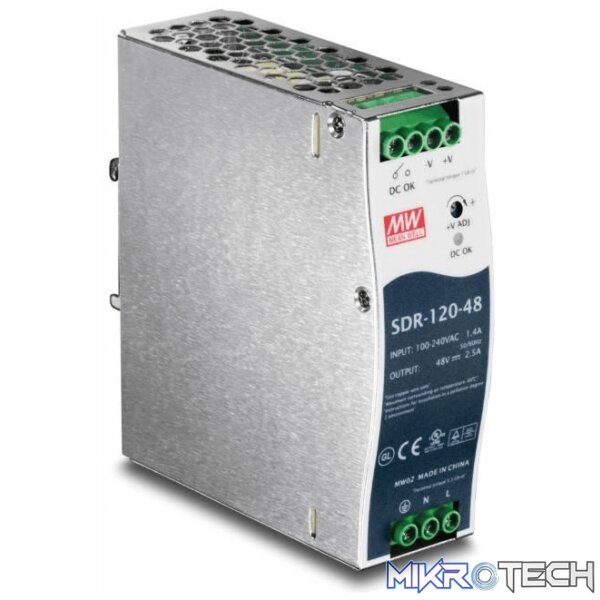

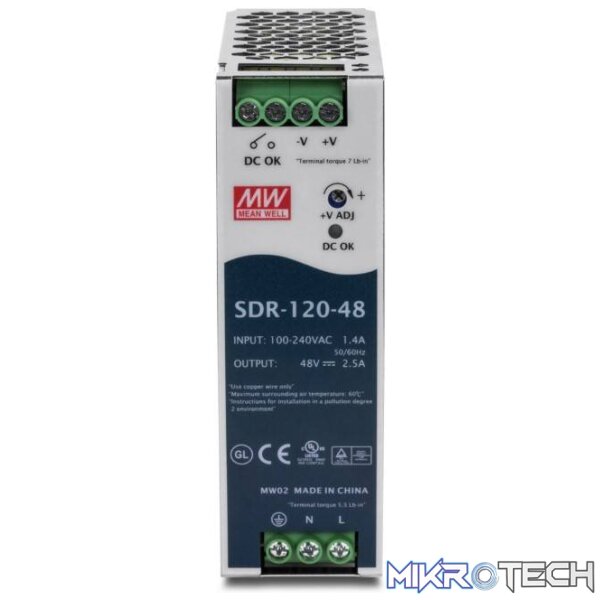

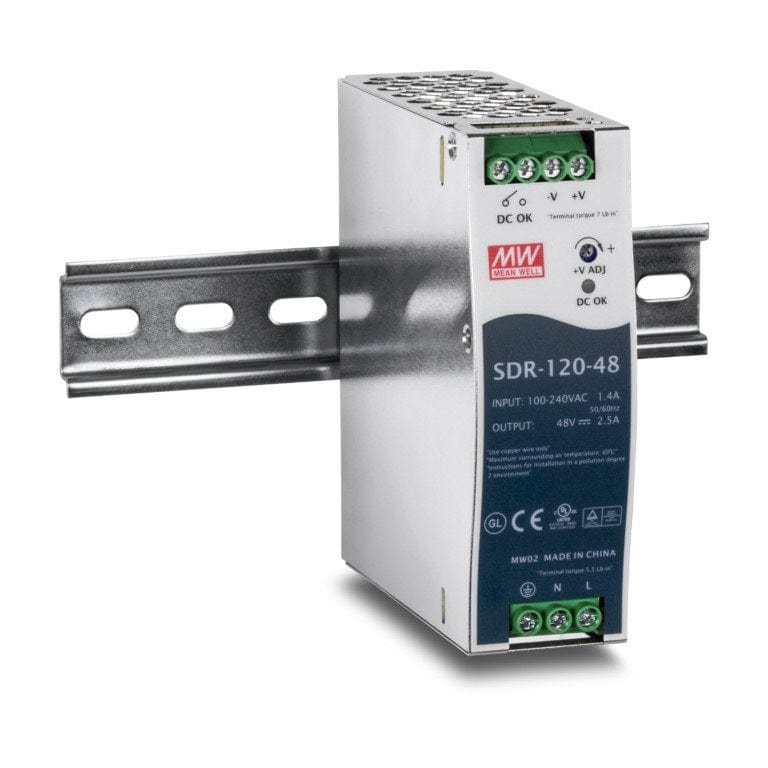

TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.

Features

• Industrial power supply with integrated DIN-rail mount
• Provides up to 120 Watts of power (48 V, 2.5 A)
• Built-in active PFC (PF > 0.93)
• Short circuit/overload/over voltage/over temperature protection
• High efficiency (91%) design
• UL 508 approved
• 100% full load burn-in test
• Extreme -25 to 70 °C (-13 to 158 °F) operating temperature range
• NDAA / TAA compliant

Technical Specification

• Input: 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC
• Output: 120 Watts, 48 V, 2.5 A

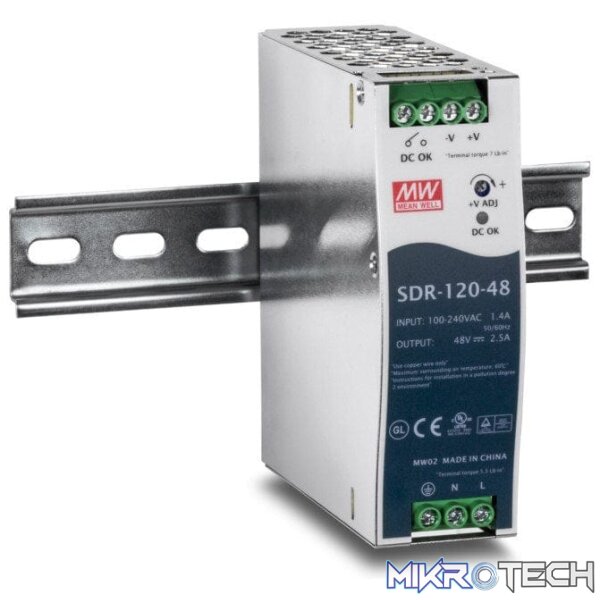

• DIN-rail: TS-35/7.5 or 15

• Metal case

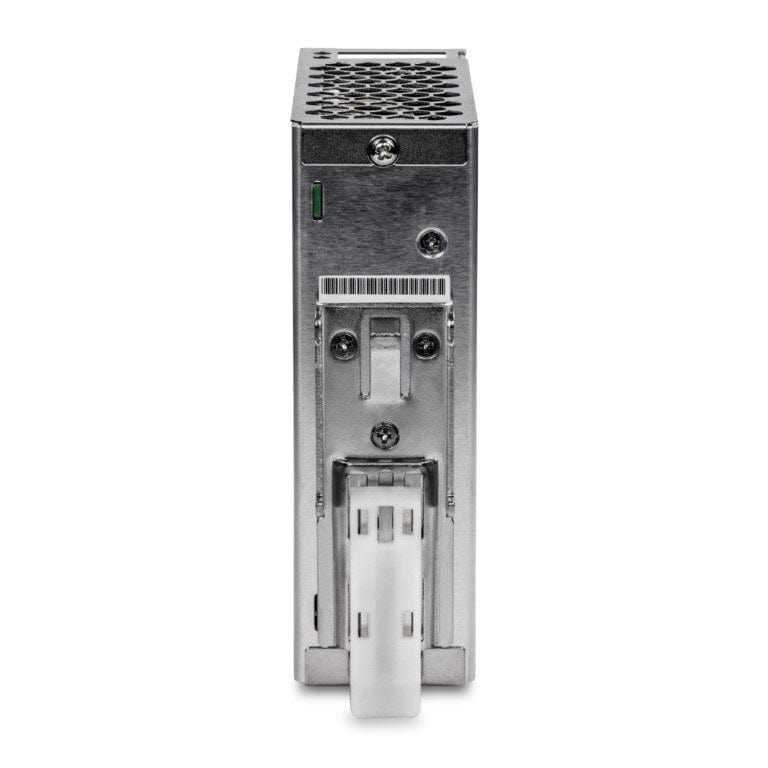

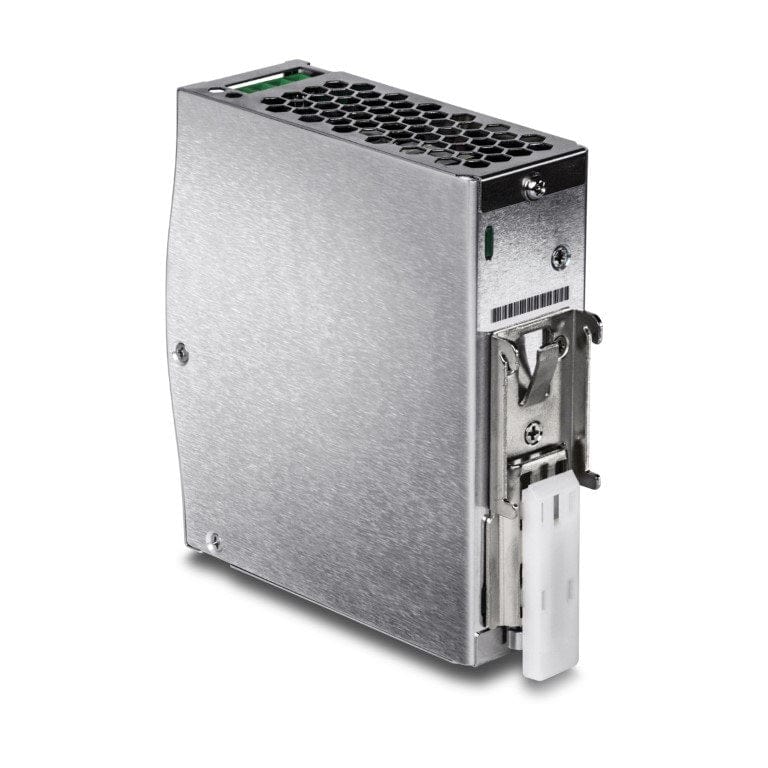

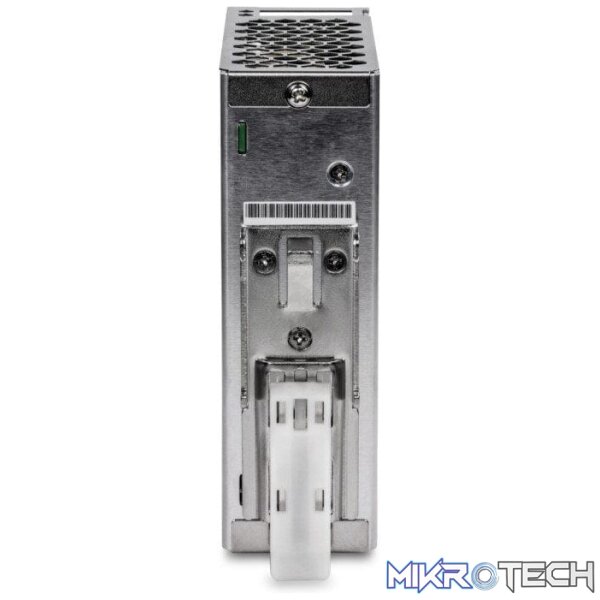

• DIN-rail mount
• LED indicator confirms power to the unit

• DC OK relay contact
• 150% peak load capacity
• Short circuit/overload/over voltage/over temperature protection
• Protection type: shut down and repower

Package Contents

• TI-S12048 (Mean Well SDR-120-48)
