Product Description

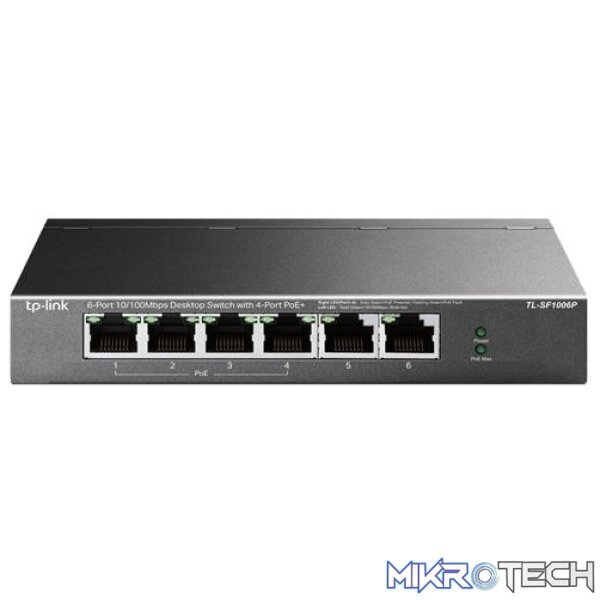

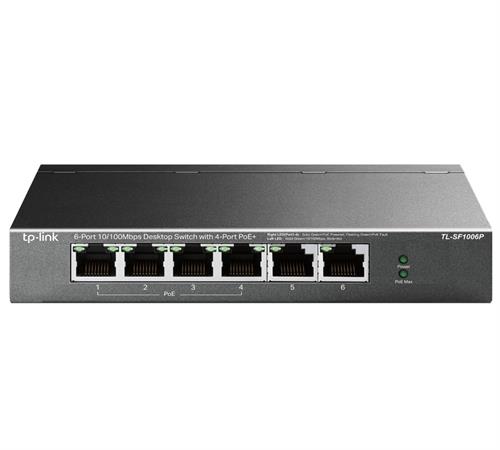

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ 1 year Limited Warranty
Product Overview
Expand your network with the TP-Link TL-SF1006P. This versatile switch offers four PoE+ ports to power devices like IP cameras or VoIP phones, along with standard Ethernet ports for additional connections. Its compact design and plug-and-play setup make it ideal for small offices and home networks.
Features
•6× 10/100 Mbps RJ45 ports
•4× PoE+ ports transfer data and power on individual cables
•Works with IEEE 802.3af/at compliant PDs
•Up to 250m data and power transmitting range under Extend Mode**
•Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Specifications
•Product code: TL-SF1006P
•Description: TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
•6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
•AUTO Negotiation
•AUTO MDI/MDIX
•Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•Fan Quantity Fanless
•Physical Security Lock Yes
•External Power Supply External Power Adapter (Output: 53.5 V DC / 1.31 A)
•Packet Forwarding Rate 0.8928 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af/at compliant
•PoE Ports: Ports 1–4
•Power Supply: 67 W
•Mac Address Table 2K
•Jumbo Frame 2 KB
•Switching Capacity 1.2 Gbps
•Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
•Max Power Consumption
•2.52 W (220 V / 50 Hz, no PD connected)
•75.4 W (220 V / 50 Hz, with 67 W PD connected)
•Max Heat Dissipation
•8.59 BTU/h(no PD connected)
•257.11 BTU/h(with 67 W PD connected)
•Transmission Method Store-And-Forward
•Compatible With IEEE 802.3af/at Compliant PDs
•Extend Mode Button (Ports 1–4)
•Priority Mode Button (Ports 1–2)
•PoE Auto Recovery (Ports 1-4)
•Mac Address Auto-Learning and Auto-Aging
•IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
