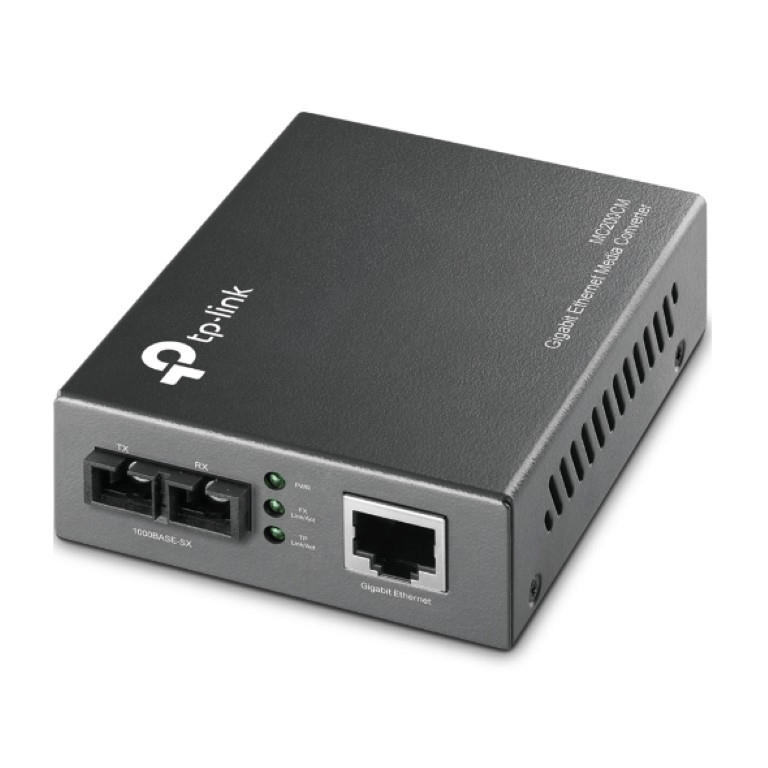

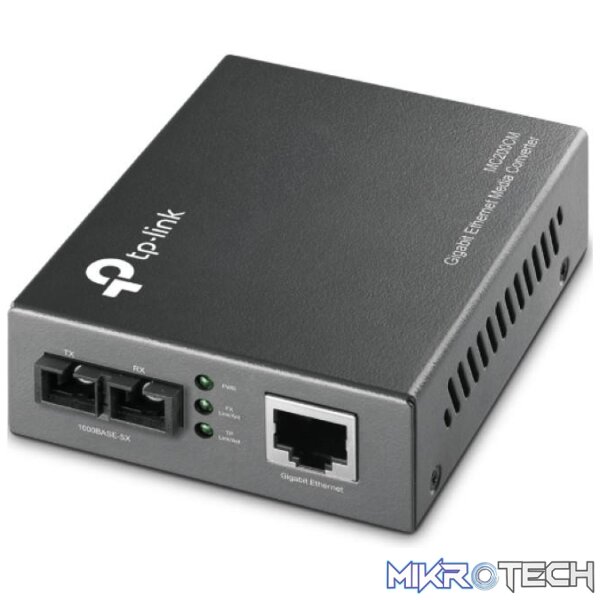

TP-Link MC200CM Network Media Converter Multi-mode Black

TP-Link MC200CM Network Media Converter Multi-mode Black

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).

Specifications:

• TP-Link MC200CM
• Maximum data transfer rate: 1000 Mbit/s
• Networking standards: IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z
• Ethernet interface type: Gigabit Ethernet
• Fiber optic connector: SC
• Connectivity technology: Wired
• Maximum transfer distance: 550 m
• Wavelength: 850 nm
• Fiber mode structure: Multi-mode
• Product colour: Black
• Power consumption (max): 1.66 W
