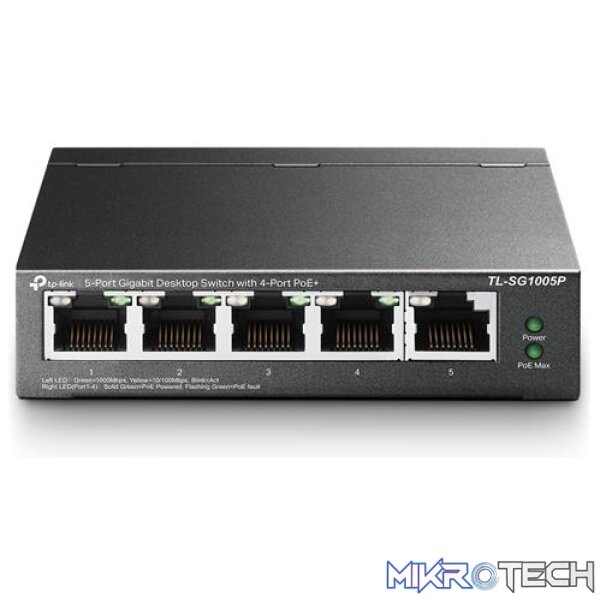

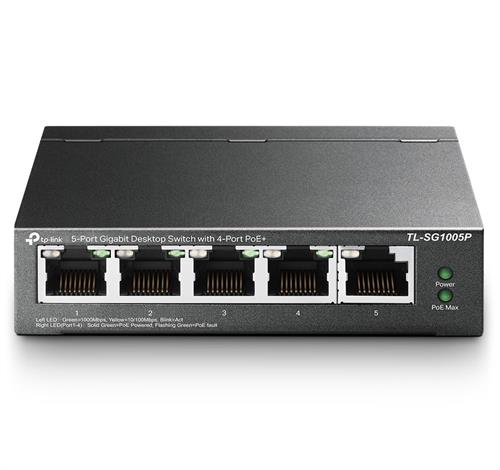

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
R689.99 incl. VAT
Product Description
TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+ 1 year Limited Warranty
Product Overview
The TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an efficient networking solution that allows for data and power transmission over a single cable, making it ideal for powering devices like IP cameras and access points. It features five RJ45 ports, with four supporting Power over Ethernet (PoE) to deliver up to 15.4W per port, ensuring reliable connectivity for various applications.
Specifications
•Product code: TL-SG1005P
•Description: TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+
•5× 10/100/1000Mbps RJ45 Ports
•AUTO Negotiation
•AUTO MDI/MDIX
•Network Media
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•Fan Quantity Fanless
•External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
•Packet Forwarding Rate 7.44 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af/at compliant
•PoE Ports: Ports 1–4
•Power Supply: 65 W
•Mac Address Table 2K
•Jumbo Frame 16 KB
•Switching Capacity 10 Gbps
•Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
•Max Power Consumption
•3.44 W (220/50 Hz. no PD connected)
•74.49 W (220/50 Hz. with 65 W PD connected)
•Max Heat Dissipation
•11.73 BTU/h (no PD connected)
•254.01 BTU/h (with 65 W PD connected)
•Advanced Features
•Compatible With IEEE 802.3af/at Compliant PDs
•Mac Address Auto-Learning And Auto-Aging
•IEEE 802.3x Flow Control
•802.1p/DSCP QoS
•IGMP Snooping
•Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
•PoE Auto Recovery (Ports 1-4)
•Transfer Method Store-And-Forward
