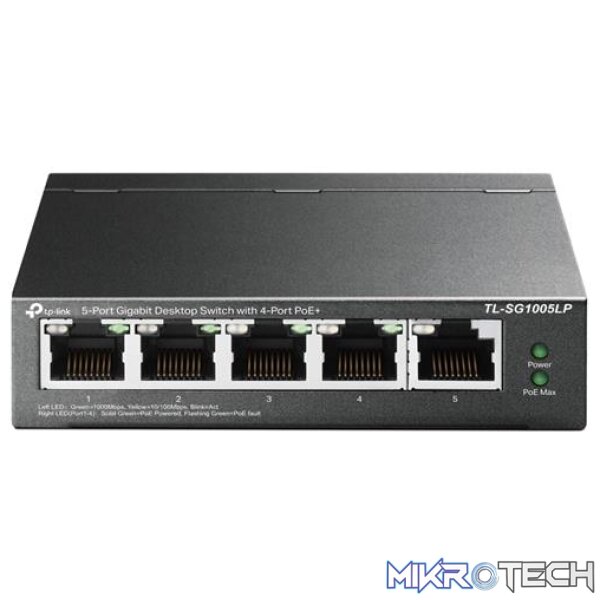

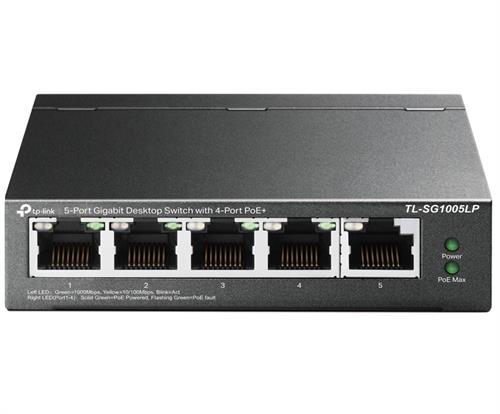

TP-Link 5-Port Gigabit Desktop PoE+ Switch 1 year Limited Warranty
Product Overview
The TP-Link 5-Port Gigabit Desktop PoE+ Switch features four PoE+ ports that deliver both data and power over a single Ethernet cable, supporting IEEE 802.3af/at compliant devices. It offers 30 W per port and a total of 40 W across all PoE ports, making it ideal for powering devices like IP cameras and wireless access points.
Specifications
•Product code: TL-SG1005LP
•Description: TP-Link 5-Port Gigabit Desktop PoE+ Switch,
•Interface
•5× 10/100/1000Mbps RJ45 Ports
•AUTO Negotiation
•AUTO MDI/MDIX
•10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•100BASE-TX: UTP category 5, 5e cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
•EIA/TIA-568 100? STP (maximum 100m)
•Fan Quantity Fanless
•External Power Supply External Power Adapter (Output: 53.5 VDC / 0.81 A)
•Packet Forwarding Rate 7.44 Mpps
•PoE Ports (RJ45)
•Standard: 802.3 af/at compliant
•PoE Ports: Ports 1–4
•Power Supply: 40 W
•Mac Address Table 2K
•Jumbo Frame 16 KB
•Switching Capacity 10 Gbps
•Dimensions ( W x D x H ) 3.9×3.9×1.0 in (99.8×98×25 mm)
•Max Power Consumption
•4.12 W (220/50 Hz. no PD connected)
•47.5 W (220/50 Hz. with 40 W PD connected)
Max Heat Dissipation
•14.05 BTU/h (no PD connected)
•161.98 BTU/h (with 40 W PD connected)
•Advanced Features
•Compatible With IEEE 802.3af/at Compliant PDs
•Mac Address Auto-Learning And Auto-Aging
•IEEE 802.3x Flow Control
•802.1p/DSCP QoS
•IGMP Snooping
•Transfer Method Store-And-Forward
