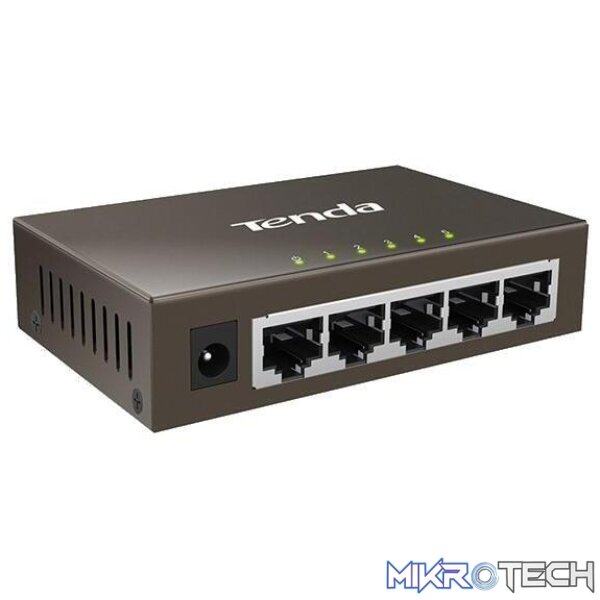

Tenda TEG1005D 5 Port Gigabit Desktop Switch
R289.99 incl. VAT
Only 2 left in stock
Overview:
TEG1005D / Switch / 5-Port Gigabit Desktop Switch
TEG1005D Integrated with professional a lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability.
Features:
Extraordinary heat dissipation
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance.
Stay connected for 7×24 hours
5 10/100/1000Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7×24 hours.
User-friendly design
RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.
| Weight | 0.26 kg |
|---|---|
| Dimensions | 10.000000 × 8.000000 × 8.000000 cm |
| Standard&Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab |
| Transmission Media | 100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above(?100m)UTP/STP |
| Interface | 5*10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX |
| Lightning Protection | 6KV for 5 Ports |
| LED indicator | 1*power LED, 5*10/100/1000Mbps Link/Act LEDs |
| Dimension | 100mmx64mmx25mm(W*D*H) |
| Forwarding Mode | Store-and-Forward |
| MAC Address Table | 2K |
| Forwarding Rate | 10BASE-T : 14881pps/port 100BASE-TX : 148810pps/port 1000BASE-T : 1488100pps/port |
| Backbound Bandwidth | 10Gbps |
| Power Input | 100~240V AC, 50/60Hz |
| Power Output | 5V DC, 0.6A |
| Temperature | Operation Temperature:-10°C~45°C Storage Temperature: -40°C~70°C |
| Humidity | Operation Humidity:10%~90% RH(non-condensing) Storage Humidity:5%~90% RH(non-condensing) |
