Description

Specification
Hardware Specifications
Wireless Functions
Software Function
Standard& Protocol IEEE802.3, IEEE802.3u, IEEE802.3ab
Wireless Standard
Frequency
Internet Connection Type
PPPoE, Dynamic IP, Static IP
Support automatic access detection
Supports broadband account automatic transfer
DHCP
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server
Port Forwaring
DMZ Host
UPnP
Security
Client Filter??supports black list and white list??
Parental Control??supports black list and white list??
Remote Web Management
Operating Mode
Wireless Router Mode
AP Mode
Universal Repeater mode
WISP Mode
Wireless security
Data rate
IEEE 802.11ac/a/n @5GHz
IEEE 802.11b/g/n @2.4GHz
2.4GHz: 300Mbps
5GHz: 867Mbps
2.400 2.4835 GHz
5.150 5.250 GHz
Wireless Security: Enable /Disable
Interface 1*10/100Mbps WAN port
3*10/100Mbps LAN ports
Antenna 4*6dBi external dual band antennas
Button 1*WPS/Reset button
LED 1*LED
Dimension (L*W*H) 200x127x33.6mm
Firewall Forbid WAN PING from internet
DDNS Support DynDNS, 88ip
Power Input??AC 100-240V50/60Hz
Output??DC 9V 1A

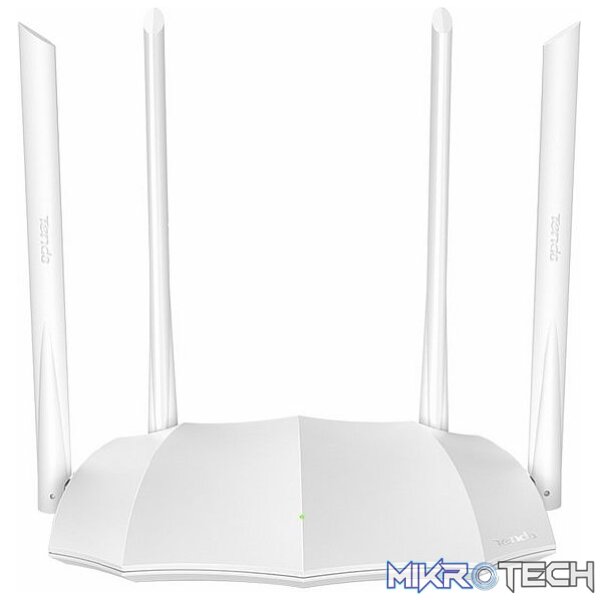

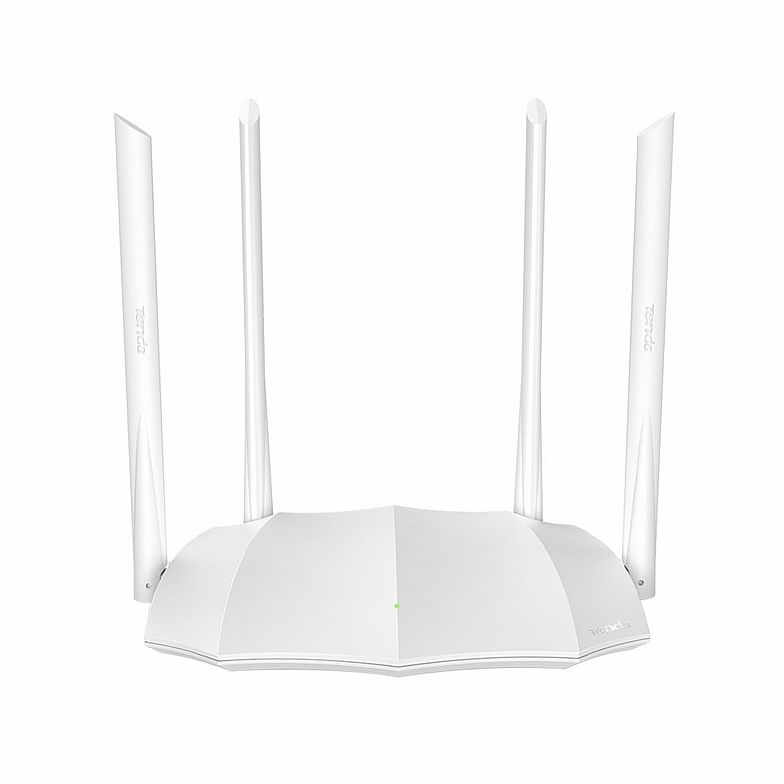

AC5/AC1200 Dual Band WiFi Router
Other features
Other features
Support IPv6
Broadband management
MAC address clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade from local
Package Content
Wireless Router*1
Ethernet Cable*1
Power Adapter*1
Installation Guide*1
Temperature Operating Temperature: 0?? ~ 40??
Storage Temperature: -40?? ~ 70??
EIRP Power (Max.) 2.400 2.4835 GHz: 19.85 dBm (EIRP)
5.150 5.250 GHz: 22.96dBm (EIRP)
Humidity Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
Default Settings Default Access: tendawifi.com or http://192.168.0.1
Certification CE, RoHS, FCC, CCC, SRRC
EAN Code 6932849427554
UPC Code 885397270997
