TENDA PCI-E CARD,WIRELESS DUAL BAND AC1

Description

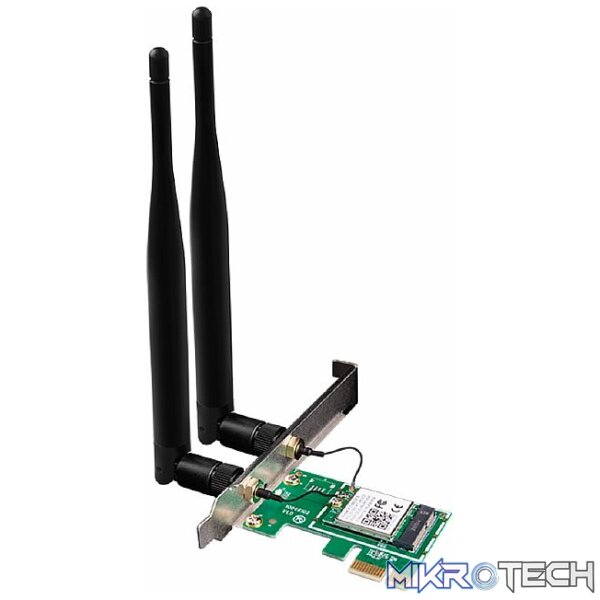

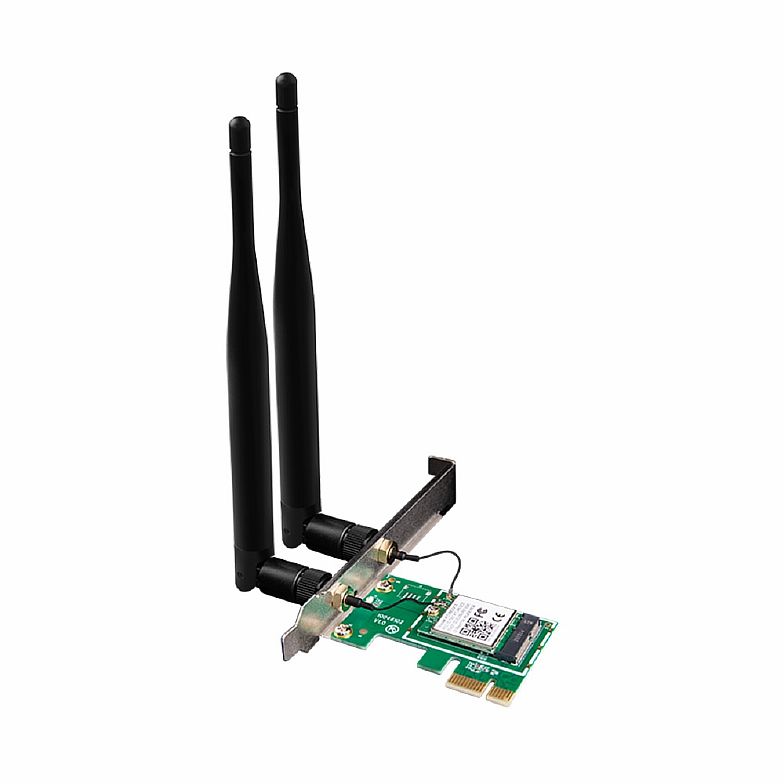

E12 is an 11AC PCI-E wireless adapter. The 2. 4G rate can reach up to 300Mbps, and the 5GHz rate can reach 867Mbps. It provides better online gaming and 4K Ultra HD video streaming. E12 adopts 2 * 5dBi external antennas with high gain dual band to ensure the better wireless penetration ability. Hardware
Interfaces
PCI Express(x1)
Antenna Type
2 * Detachable 5dBi Antenna
Button
/
LED Indicator
1 * System LED
Dimension
120.8mm * 78.5mm * 21mm(L*W*H)
Wireless
Wireless Standard
IEEE802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac
Frequency
5GHz
2.4GHz
Data Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Transmission Power
<20dBm (EIRP)
Wireless Modes
Station Mode
Wireless Security
64/128-bit WEP,WPA-PSK / WPA2-PSK,WPA / WPA2
Others
Certification
CE?FCC?RoHs
Package Contents
1 * Wirelss adapter(with a high profile bracket)
1 * Driver CD
1 * Quick installation guide
2 * Antenna
1 * Low profile bracket
System Requirements
Windows 10
Environment
Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°F ~ 158°F (-40°C ~ 70°C )
Operating Humidity: 10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing
