Overview:
Support Fiber Internet Up to 100Mbps
AC5 is a dual-band WiFi router,provides speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps) to get the most out of your 100Mbps fiber access,and brings a better internet experience, six times faster than single-band router.
Features:
Smart Traffic Prioritisation
Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system.
Setup in Minutes
Broadband account migration funcation helps you transfer your account from the original router,getting setup in minutes.
Support IPv6 Protocol
AC5 supports IPv6, it can reduce the data transmission time and minimize the lag, provide a better gaming experience.
Easily Manage Your AC5
Tenda WiFi App provides the easiest way to manage AC5 .
Parental Control:
Manage your children’s online time and supervise online content via the smart App.
Guest Network:
Using your smartphone easily setups a blacklist and limits the guests’ access.
Other Features
- Support Client Filter
- Suppot IPTV
- SSID Hiding Function
- Support Guest Network
- Support WPA2 for Safety
| Weight | 0.60 kg |
|---|---|
| Dimensions | 33.000000 × 26.000000 × 5.000000 cm |
| Standard&Protocol | IEEE802.3, IEEE802.3u |

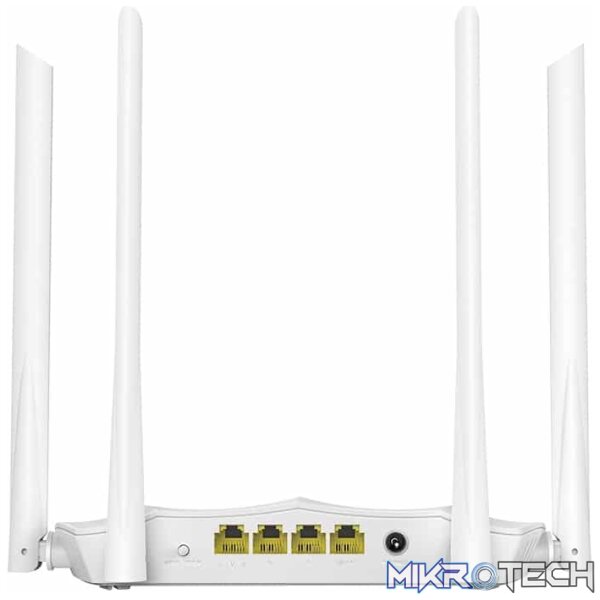

| Interfaces | 10/100 Mbps WAN port*1 10/100 Mbps LAN port*3 |
| Antenna | 5dBi External antenna*4 |
| Button | WPS/Reset button*1, WiFi on/off button*1 |
| Power | AC input: 100-240V-50/60Hz, 0.2A DC output: 9V 1A |
| Dimension | 171mm*171mm*210mm(L*W*H) |
| LED Indicator | SYS*1, WiFi*1, WAN*1, LAN*3 |
| Wireless Standard | IEEE 802.11ac/a/n @5GHz IEEE 802.11b/g/n @2.4GHz |
| Data Rate | 5GHz: 867Mbps 2.4GHz: 300Mbps |
| Frequency | Concurrent dual band 2.4 GHz & 5 GHz |
| Transmission Power | CE: 20dBm(2.4G) 23dBm(5G) FCC: 30dBm |
| Basic Features | SSID Broadcast: Enable/Disable Beamforming MU-MIMO |
| Wireless Security | WPA-PSK/WPA2-PSK, WPA/WPA2 Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Operating Mode | Wireless Router Mode Universal Repeater Mode WISP Mode AP Mode |
| DHCP Server | DHCP Server DHCP Client List DHCP Reservation |
| Virtual Server | Port Forwarding DMZ Host UPnP |
| Security | Client Filter (support blacklist and whitelist) Parental Control Remote Management |
| Firewall | Forbid UDP flood attack Forbid TCP flood attack Forbid flood attack Forbid WAN PING from internet |
| DDNS | Support DDNS, No-ip, 3322.org, Oray.com, 88ip |
| VPN | PPTP L2TP PPTP client L2TP client |
| Special Features | PPPoE Username/Password Clone Smart WiFi Schedule Smart Sleeping Mode Smart LED on/off Tenda WiFi App |
| Others | Bandwidth Control Guest Network IPTV MAC Address Clone System Log Backup & Restore configurations Online firmware upgrade Local firmware upgrade |
| Temperature | Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ 70°C. |
| Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing. |
| Default Settings | Default Access: tendawifi.com or http://192.168.0.1 |
| Certification | CE/FCC/RoHS |
| EIRP Power (Max) | 2.400 – 2.4835 GHz: 19.85 dBm (EIRP) 5.150 – 5.250 GHz: 22.96dBm (EIRP) |
| Package Contents | AC1200 Smart Dual-Band WiFi Router Power Adapter Quick Installation Guide Ethernet Cable |
