Overview:

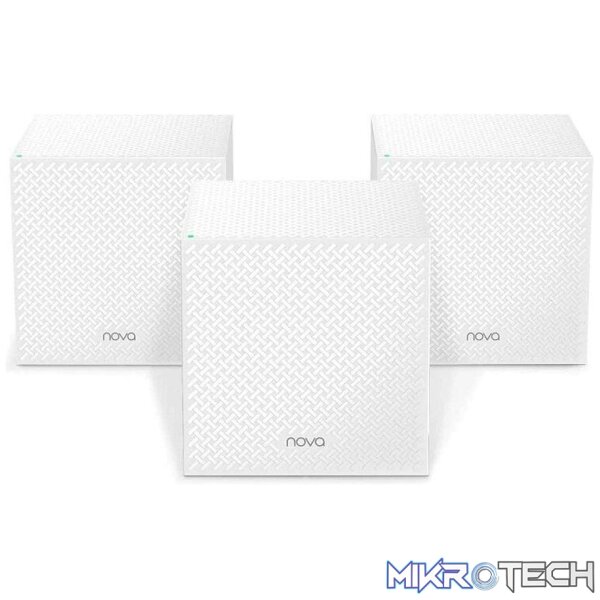

MW12 / Mesh / AC2100 Tri-band Whole Home Mesh WiFi System
The MW12 is a whole home Mesh WiFi system designed for medium to large households with a high speed broadband service. Powered by Tenda Mesh technology, it creates a distributed network with several nodes throughout your home. A 3-pack of MW12 is able to cover up to 500 m2 / 6000 sq.ft. AC2100 tri-band design and full gigabit ports support and give full play to your high speed broadband service. It carries a 900 MHz strong CPU and 256 MB large memory, and is able to handle more devices on your network. All terminals can enjoy high-speed tri-band WiFi at the same time, indicating low latency for internet games, smooth streaming of 4K videos and VR HD applications. It features easy and wire-free installation and allows both auto-networking and manual addition. With seamless roaming around the house, the MW12 creates a high-speed and intelligent Mesh WiFi system throughout your home.
Features:
Tri-band AC2100 Mesh for Best Internet Experience
Tri-band AC2100 Mesh solution exploits the full potential of your Fiber access. Three bands(2.4GHz, 5GHz-1, 5GHz-2) are used as backhaul to eliminate the lag while multiple devices streaming at the same time.
Built-in Signal Enhancement Module
It adopts 5GHz dedicated powerful WLAN full-featured front-end module, equipped with integrated signal amplifier. The concentrated signal makes sure stronger and more stable Multi-story home WiFi coverage. You can enjoy best signal in any corner.
Whole Home Seamless Roaming
MW12 units work together under one unified network supported by 802.11k/v/r protocal, always connect your devices with the best performance node while the devices freely moving around in your house.
Compatible with All Nova-series
Any Nova-series product (MW3, MW5, MW5S, MW5G, MW6, MW12) can be used as an extra unit in existing Nova network easily to meet varies house type requirement.
Connection for over 100 Devices
Equipped with dual-core 900MHz CPU, 256M DDR3 memory supporting MU-MIMO technology to bring lag-free experience for over 100 devices.
Featuring QoS Technology
Quality of Service (QoS) optimizes traffic so that stream with higher priority can pass first, which brings better performance for 4K video,HD-VR Game, etc.
Remote Control with APP
Easily manage your Nova units with Tenda WiFi APP. The real-time progress of online devices is all in your hands.
Style with Minimalist and Fashionable
With its stylish design, you can display Nova like a piece of workart in your entertainment center.
| Weight | 1.80 kg |
|---|---|
| Dimensions | 36.000000 × 12.000000 × 17.000000 cm |
| Standard&Protocol | IEEE802.11a/b/g/n/ac IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Interface | 3 x 10/100/1000Mbps RJ45 ports per node |
| Antenna | 4 x Internal antenna |
| Button | 1 x Reset Button |
| LED indicator | 1 x Tri-color LED Indicator(Green, Yellow, Red) |
| Power | Input: 100-240V-50/60Hz, 0.6A Output: 12V1.5A |
| Dimension | 100 x 100 x 100mm (3.1 x 3.1 x 3.1in) |
| Wireless Standards | IEEE802.11a/b/g/n/ac (WiFi 5 wave 2) |
| Wireless roaming | Comply with IEEE802.11k/v/r |
| Mesh network Standard | IEEE802.11s |
| Rate | 2.4GHz: 300Mbps 5GHz-1: 867Mbps 5GHz-2: 867Mbps(dedicated backhaul) |
| Frequency | 2.4~2.4835GHz 5.15~5.25GHz 5.47~5.725GHz (for EU countries) 5.725~5.85GHz |
| Basic Features | SSID Broadcast Beam Forming MU-MIMO AP Steering Band Steering |
| Wireless Security | WPA-PSK/WPA2-PSK(default) |
| Operating mode | Router Mode, Bridge Mode |
| Internet Connection Type | PPPoE, Dynamic IP, Static IP, PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| DHCP Server | DHCP Server, DHCP Client List |
| Virtual Server | Port Forwarding, DMZ Host, UPnP |
| Parental Control | Client Filter URL Filter |
| Firewall | Forbid TCP/UDP flood attack VPN(PPTP/L2TP/IPsec )pass through |
| Special Features | Dedicated Backhaul Turbo Backhaul Mode Fast Roaming Smart QoS (Gaming, Video & Audio, Download) |
| Other | Auto-sensing internet connection Support App management and Remote management Guest Network Firmware upgrade online |

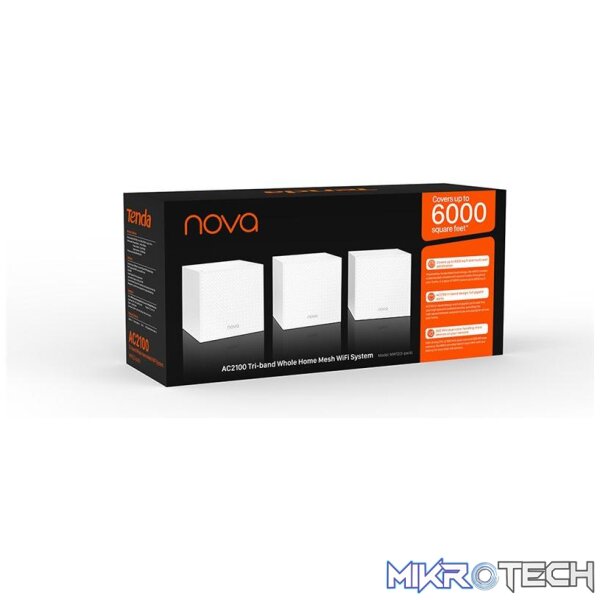

| Package Content | 3-Pack Mesh12 x 3, Power adapter x 3, QIG x 1, RJ45 Gigabit Ethernet cable x 1 2-Pack Mesh12 x 2, Power adapter x 2, QIG x 1, RJ45 Gigabit Ethernet cable x 1 1-Pack Mesh12 x 1, Power adapter x 1, QIG x 1, RJ45 Gigabit Ethernet cable x 1 |
| Temperature | Operating Temperature:0 ~ 40 °C Storage Temperature:-40 ~ 70 °C |
| Humidity | Operating Humidity:10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing |
| APP management | Available in iOS 8.0 or later, Android 4.0 or later |
| Certification | CE, FCC, RoHS |
