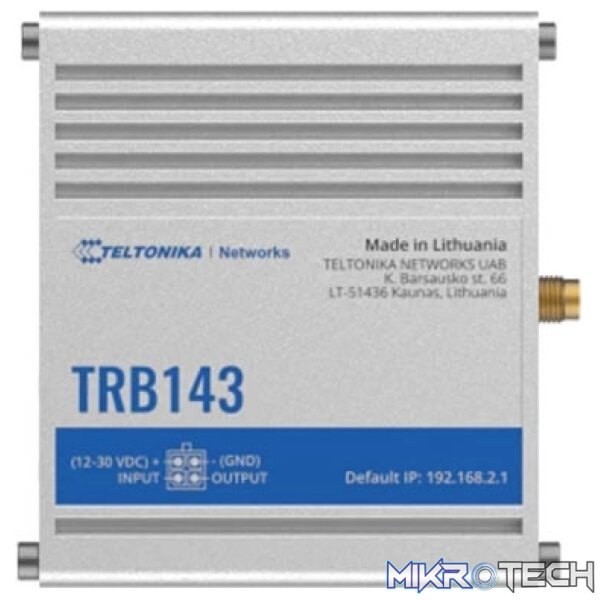

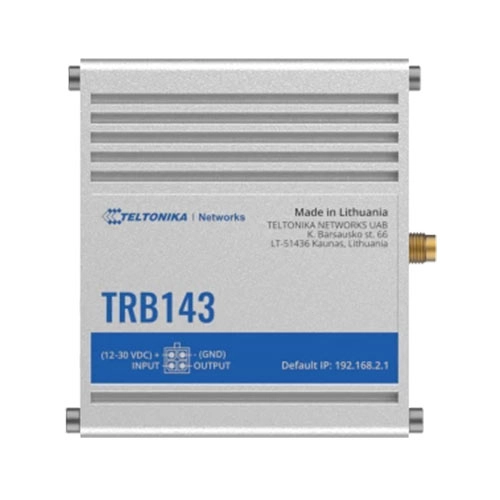

Teltonika TRB143 LTE Cat 4, M-BUS Gateway, 1 x LAN (1 Gbps)

TRB143 – M-Bus Cellular Gateway

The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port, and a pair of digital Inputs/Outputs, making it applicable to a variety of environment-monitoring scenarios.

M-Bus Interface
Supporting up to 250 client devices
Connectivity
4G/LTE (Cat 4), 3G, 2G
Durability
Rugged aluminum housing
Compact
Simple integration

Features:

Mobile – 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
CPU – ARM Cortex-A7 1.3 GHz CPU
RAM – 256 MB, DDR3
Flash storage – 512 MB, SPI Flash
Powering options – 4-pin power socket, 12 – 30 VDC
SIM – 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Status LEDs – 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x ETH status LEDs, 1 x Power LED
Inputs/Outputs – 2 x Configurable I/O pins on 4-pin power connector
M-Bus – 1 x M-Bus Interface
M-Bus interface – The M-Bus interface can support up to 250 client devices and can power up to 6 client devices
Ethernet – 1 x RJ45 port, 10/100/1000 Mbps
Ingress protection rating – IP30
Operating temperature – -40 °C to 75 °C
Housing – Aluminum housing
Dimensions – 74.5 x 25 x 64.4 mm
Weight – 145 g
Installation – DIN rail, wall mounting (additional kits needed), flat surface placement
