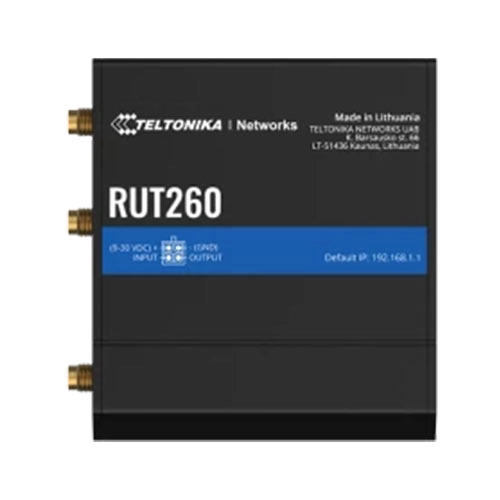

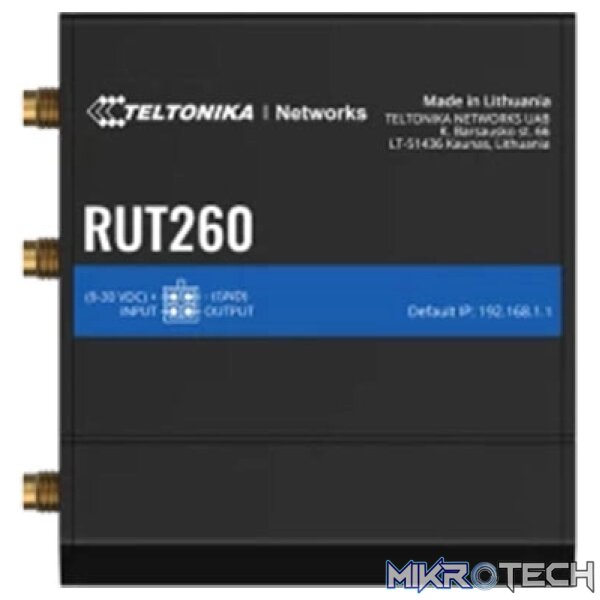

Teltonika RUT260 4G LTE Cat 6 Router, Wi-FI 4, 1 x WAN(100Mbps), 1 x LAN(100Mbps)

LTE CAT 6 Cellular Router

RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.

LTE CAT 6
Cellular speeds of up to 300Mbps with carrier aggregation
WAN Failover
Automatically switches to an available backup connection
Interfaces
2 x 10/100 Mbps Ethernet ports, Digital I/Os
Compact
Small in size and easy to install

Features:

Mobile – 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
CPU – Mediatek, 580 MHz, MIPS 24Kc
Storage – 128 MB, DDR2
Memory – 16 MB, SPI Flash
Powering options – 4-pin industrial DC power socket, 9 – 30 VDC
SIM – 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional)
Antenna connectors – 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi
Ethernet -2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
Wi-Fi – IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Inputs/Outputs – 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs – 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
Operating temperature– -40 °C to 75 °C
Housing – Aluminum housing, plastic panels
Dimensions (W x H x D) – 83 x 25 x 74 mm
Weight – 130 g
