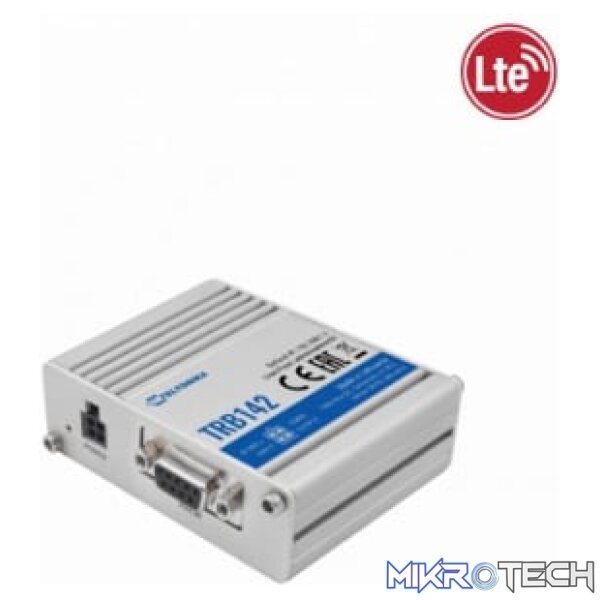

Teltonika Industrial RS232 to LTE Gateway Board
Click to enlarge
Ubiquiti airMAX - 2.4GHz Sector - 15dBi
Ubiquiti AirMax MiMo 2.4GHz Sector High-Gain 15dBi Antenna R2,849.99 incl. VAT
Back to products
Cambium cnVision Client MINI 16 dBi
CAMBIUM cnVision Client mini 16 dBi CPE R5,139.99 incl. VAT

Teltonika Industrial LTE Gateway board

R2,889.99 incl. VAT

Out of stock

Compare

Join the waitlist to be emailed when this product becomes available

Product ID: 219644 Category:
Product Description
LinkedInRedditPinterestWhatsAppMessengerTelegram

Overview:

Industrial LTE Cat 1 Gateway Board TRB142 is equipped with RS232 Interface, Digital Inputs/Outputs and micro-USB port. TRB142 compact design makes this Gateway perfect for an application where a sole gadget must be remotely controlled over the RS232 Interface. TRB142 is engineered to be used in Industrial applications therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

Product Specifications
Specifications
Mobile

LTE(Cat1)/3G/2G

SIM slot

Mini SIM (2FF)

Antenna connector

1 x SMA for LTE

RS232

DB9 socket, 5 pin configuration with flow control, baud rate 300-115200

Input/Output

2 x Digital Input/Output (configurable)

CPU

ARM Cortex-A7 1.2 GHz CPU

RAM

128 MBytes (50 Mbytes available for userspace)

Flash

512 MBytes (70 Mbytes available for userspace)

Input voltage range

9 – 30 VDC

Power connector

4 pin industrial DC power socket

Configuration interface

Virtual NIC via Micro-USB connector

LED Indicators

Power, signal, network and data status LEDs

Operating System

Linux OS with Yocto SDK (offering high software customisation)

Network

NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( 25 service providers supported)

RS232 related services

Modbus, Serial over IP, NTRIP

Remote management

RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration)

Status watchdogs

Ping reboot, periodic reboot

Additional features

Internet connectivity over USB virtual network interface

Operating temperature

-40° C to 75° C

Storage temperature

-45° C to 80° C

Operating humidity

10% to 90% non-condensing

Storage humidity

5% to 95% non-condensing

Dimensions

60 mm x 70 mm x 18 mm

Weight

37,5 g

Weight

0.04 kg

Dimensions

6.000000 × 7.000000 × 1.800000 cm
