Product Description

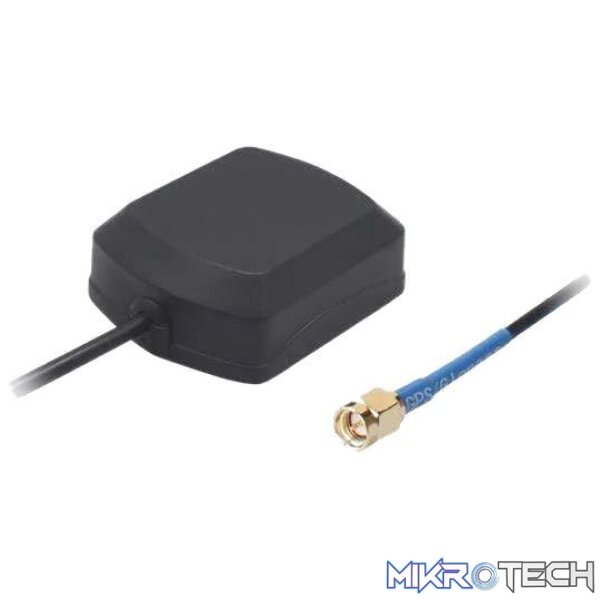

Teltonika GNSS adhesive SMA antenna, 003R-00250, 2 dBi antenna gain, 3m RG174 cable, SMA male connector
Product Specifications
| Weight | 0.00 kg |
|---|---|
| Dimensions | 0.000000 × 0.000000 × 0.000000 cm |
| Frequency | 1575.42-1602 MHz |
| Polarization | RHCP |
| Antenna Gain | 2 dBi |
| Antenna V.S.W.R | 1,5 |
| Impedance | 50 ? |
| Max Axial Ratio | 3 dB |
| LNA Gain | 28±2 dB |
| LNA Noise Figure | 1.5 dB |
| Supply Voltage | 2.2-5.0 VDC |
| Current Consumption | 15 mA |
| LNA V.S.W.R | 2 |
| Cable | RG174, 3000mm |
| Connector | SMA Male |
| Mounting Method | Adhesive |
| Operating Temperature | -40 °C to +85 °C |
| Operating Relative Humidity | 95 % max |
