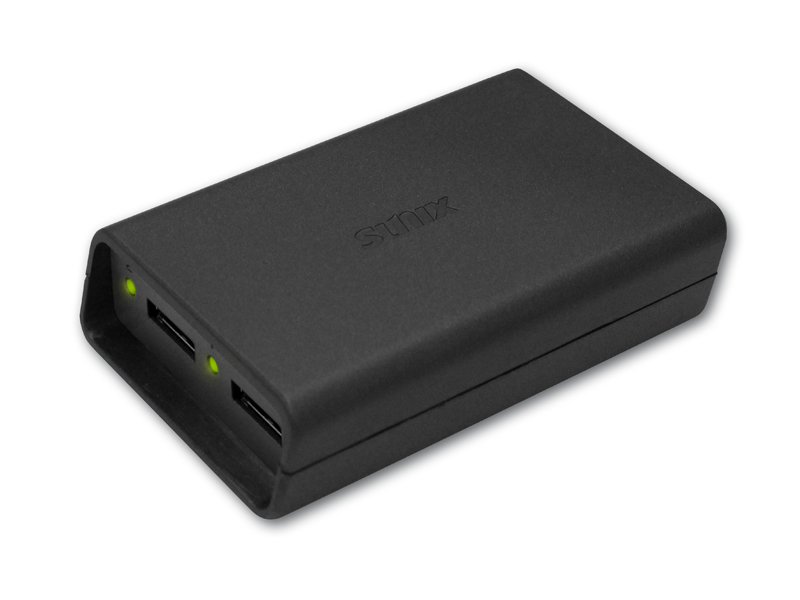

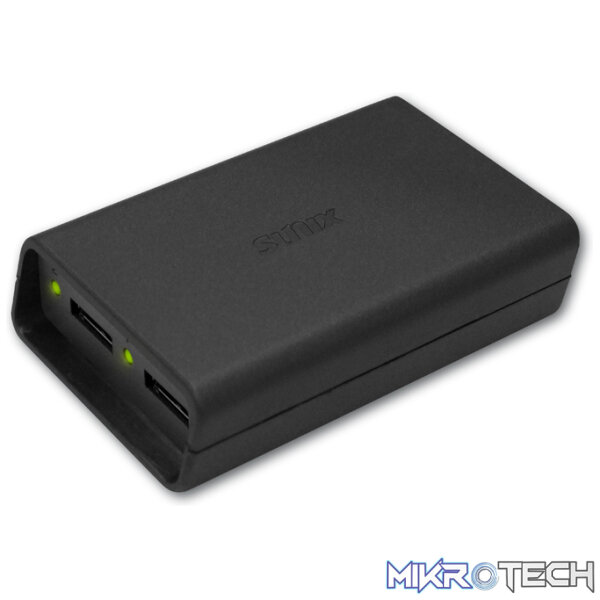

Sunix DisplayPort to Dual DisplayPort Graphics Splitter

SUNIX DPD2001 DisplayPort graphics splitter lets you combine two DisplayPort monitors as one display, at a maximum resolution of 3840×1200, to make the ultimate wide screen desktop. This graphics expansion module can also clone your primary display and function as a 2 Port DisplayPort Video Splitter.

Compatible with a DisplayPort video card, SUNIX DisplayPort graphics splitter dongle requires no software installation for multi-display applications, plug-n-play, simplifying configuration and saving time. It works for standard Microsoft Windows PC with DisplayPort connectivity.

• Ideal for multi-display and TV-Wall application.
• Works with any desktop or notebook computer which has DisplayPort output connectivity.
• Enable 2 DisplayPort monitors working simultaneously with video mirror or extension mode.
• Fully HD compatible and provides full display performance with virtually zero latency.
• Compatible with DisplayPort™ v1.2 / 1.1a, VESA DDM, and EDID v1.4 Standards.
• Supports exceptional Secured Content Protection with HDCP 1.3 for digital content.
• DisplayPort link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR).
• Supports kinds of DisplayPort video dongles converting to HDMI, DVI, or VGA output connectivity.
• Driver Free, Plug & Play without configuration.
• Certified by CE, FCC, VCCI, BSMI, and RoHS.

Specifications

Description	DisplayPort to Dual DisplayPort Graphics Splitter
Interface	DisplayPort™ v1.2 / 1.1a
Video Input Connectivity	DisplayPort™ v1.2 / 1.1a Female (Left Side)
Reserve Power Input	USB Micro B +5VDC@500mA (Right Side)
Video Output Connectivity	DisplayPort™ v1.2 / 1.1a Female x 2
Audio Output Connectivity	Digital Audio output over DisplayPort (Audio channel selected over Windows Audio control panel)
Resolution Support	Two Monitors
Computer Settings	Each Monitor
3840 x 1200	1920 x 1200
3840 x 1080	1920 x 1080
3360 x 1050	1680 x 1050
3200 x 1200	1600 x 1200
2800 x 1050	1400 x 1050
2880 x 900	1440 x 900
2560 x 1024	1280 x 1024
2048 x 768	1024 x 768
1600 x 600	800 x 600
1280 x 480	640 x 800
(Note 4)
Power Consumption	1.45W +3.3VDC DisplayPort Bus Power
Case Material	ABS
Weight	65g ± 2g (2.3oz)
Dimensions	92.5 x 60.5 x 22.0 mm
Regulatory Approvals	CE, FCC, VCCI, BSMI
O.S. support	Windows XP/2003/Vista/7/2008/8/8.1 (32/64-bit)
Environment	Operation temp. 0 °C ? 40 °C Operation humidity: < 85% non-condensing

System Requirements

• Intel PC base computer with at least one available DisplayPort.
• Graphics source minimum SPEC requirement:
  • Intel PC base computer with 3rd (IVYBRIDGE) or 4th (HASWELL) Generation Intel® Core™ i series processor and at least one available DisplayPort.
  • AMD Graphics card Radeon series HD7700, 7800, 7900, R7, R9 or later version.
  • NVIDIA Graphics card GTX series GTX660, 760, 770, 780 or later version.
• Monitors with DisplayPort connections.

Disclaimer

Unit may need additional power to operate, which can be provided to the unit via Micro USB to USB cable within the package.

Notes

1. Based on a Vertical Refresh Rate of 60Hz.
2. GPU dependent. EDID (Extended Display Identification Data) maximum resolution capabilities may differ based on GPU capability.
3. Tiny Universal DisplayPort Graphics Splitter does not support MAC system without NV or AMD graphics card built-in.
4. This product requires power to operate. Generally, when connecting to one to two monitors, the power supplied from the computer should be enough to power the unit and to have a stable connection between the monitors and this unit. However; sometimes the unit may need more power in order to function properly, such as when connecting to more than two monitors, or when the monitors require too much power then what can be provided from the connection from your PC alone. In this regards, the unit has a reserve Micro-B USB +5VDC port for the power cable, such as those to power Android products.
