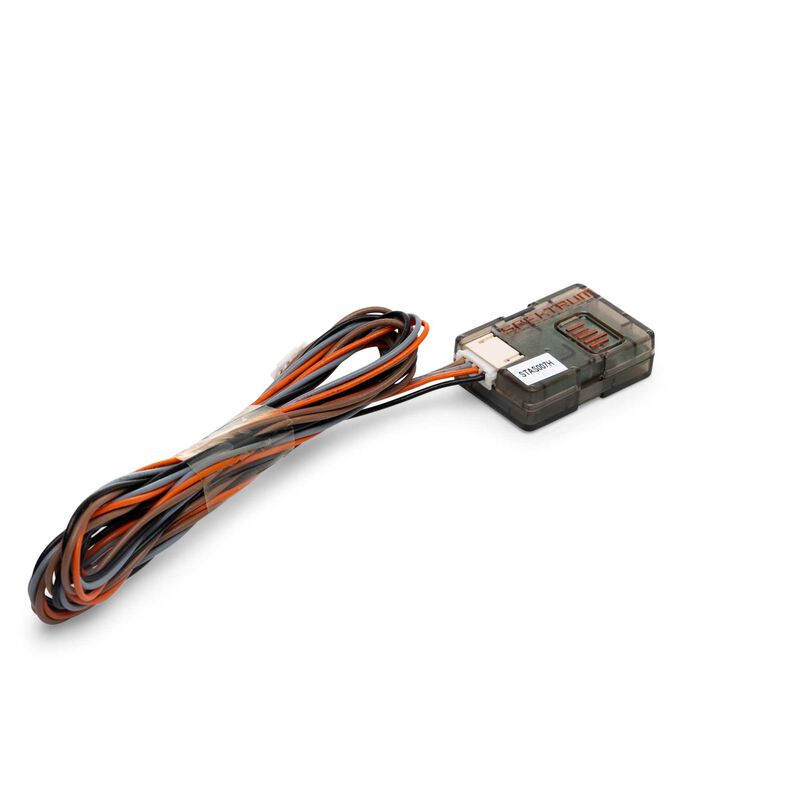

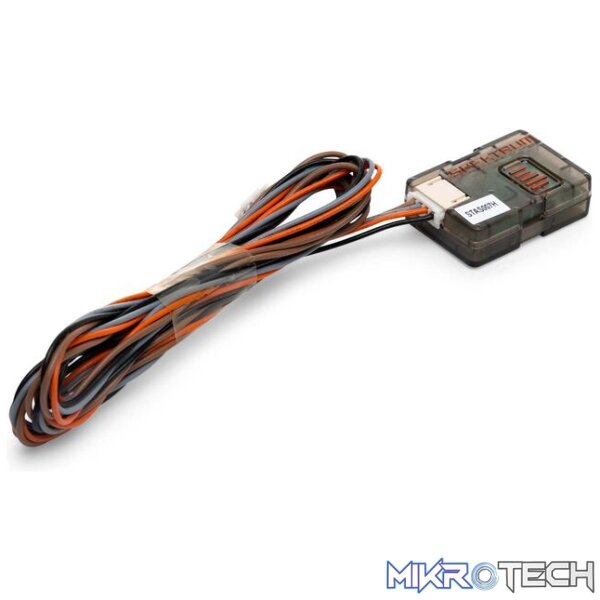

Spektrum SRXL2 DSMX Remote Receiver

The Spektrum SRXL2 DSMX Remote Receiver (SPM9747) provides additional RF path diversity using Spektrum’s MultiLink technology. Its compact, integrated antenna design ensures reliable signal stability in long-range scenarios, making it perfect for pairing with SRXL2-enabled main receivers like the AR637T or AR6610T.

Features

• SRXL2 bi-directional serial protocol for fast, robust communication
• Integrated internal antenna design for easy and durable installation
• Compatible with DSMX and DSM2 systems
• Supports both low-latency 11 ms and standard 22 ms frame rates
• Compact and lightweight—ideal for tight installation spaces
• Includes 12? (approx. 305 mm) extension cable (other lengths may be available)

What’s Included

• SRXL2 DSMX Remote Receiver (SPM9747)
• 12? extension cable

Needed to Complete

• Main receiver that supports SRXL2 remote receiver input

Specifications

• Application: Aircraft
• Band: 2.4 GHz (DSMX / DSM2)
• Input Voltage: 3.3–8.4 V
• Failsafe: Yes
• Forward Programming: Not supported
• Telemetry: Integrated
• Serial Output: SRXL2
• Frame Rates Supported: 11 ms & 22 ms
• Dimensions (L × W × H): 25.4 × 18.11 × 7.52 mm (1? × 0.71? × 0.30?)
• Weight: 0.1 oz (3 g)
• Bind Method: Bind Button
• Range: Full
