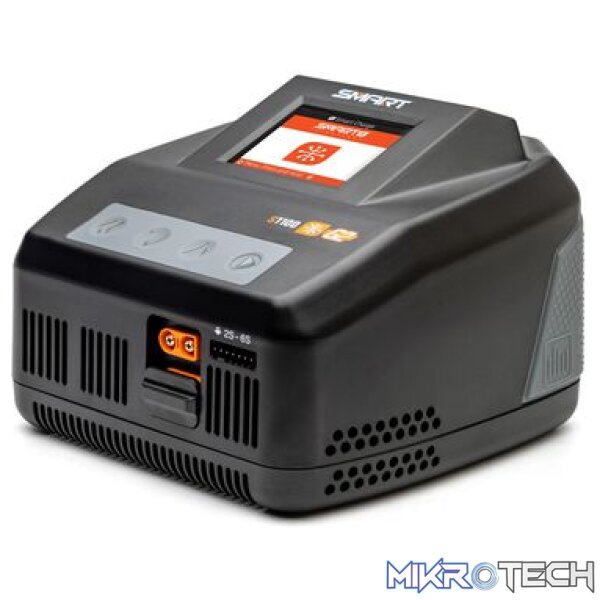

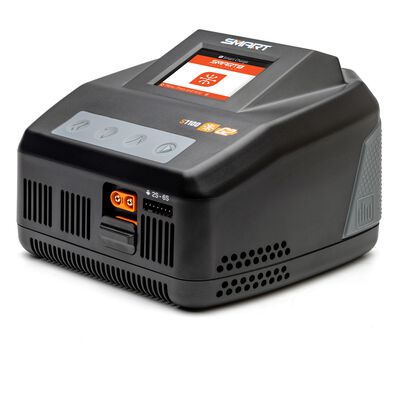

Smart S1100 AC Charger 1x100W

The S1100 G2 AC Smart Charger provides a powerful and flexible single-channel charging solution for Smart and standard battery packs. It delivers 100 W output with selectable IC3 or IC5 ports, featuring an intuitive interface and safety features for effortless charging.

Features

• 100 W maximum charging power
• Selectable output connector: IC3 or IC5 for convenience without extra adapters
• Smart G2 technology: charges and balances Smart batteries through a single IC connection
• Auto Charge detects Smart battery parameters and begins safe charging automatically
• 2.4-inch IPS LCD screen (320×240) showing menus, status and time-remaining clock
• Hard case with rubber grips and detachable AC power cord
• ON/OFF switch, USB ports for firmware updates or powering small devices
• Built-in cooling fan plus protections: over-current, reverse polarity, thermal shutoff, short circuit protection

Included

• 1× S1100 G2 AC Smart Charger (1×100 W)
• AC power cord
• User manual

What You’ll Need

• An AC mains supply (100-240 V AC, 50-60 Hz)
• Smart or non-Smart battery packs compatible with IC3 or IC5 connectors
• Safe environment to charge battery packs with cooler airflow and fire safe precautions

Specifications

• Input voltage: 100-240 V AC, 50-60 Hz
• Maximum charge current: 10.0 A (100 W)
• Adjustable current range: 0.1-10.0 A
• Supported battery types: LiPo / LiFe / LiIon (1-6S), NiMH / NiCd (1-16S), Lead-acid (1-12S)
• Output connector: IC3 or IC5 (selectable)
• Battery balance connector: JST-XH
• Display: 2.4-inch IPS LCD, 320×240 pixels
• Dimensions: approx. 145 mm × 145 mm × 104 mm
• Weight: approx. 795 g (?1.75 lb)
• Protections: over-current, reverse polarity, short-circuit, thermal monitoring
• Features: peak detection, safety timer, USB ports, voltage meter, programmable settings
