Product Description

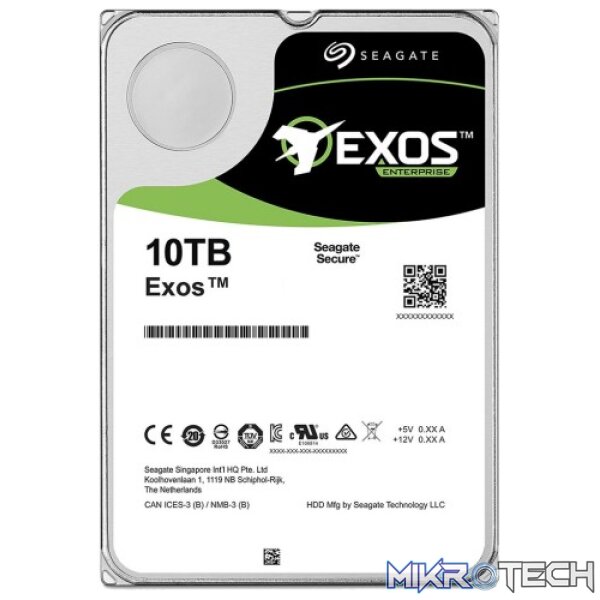

Seagate ST10000NM0206 Enterprise sas (Exos 7E8), 10Tb/10000Gb, SAS12G, 7200 rpm, 256mb cache, 4.16ms, buffer-to-disk – 249mb/sec (ORDER ON REQUEST)
Product Specifications
| Brand | Seagate |
|---|---|
| Specifications | 12Gb/s SAS Standard |
| Capacity | 10TB |
| Standard Model (4Kn)1 | ST10000NM0206 |
| Helium Sealed-Drive Design With Wide Weld | Yes |
| Digital Environmental Sensors | Yes |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| PowerChoice /PowerBalance Technology | Yes |
| Low Halogen/Hot-Plug Support4 | Yes |
| Cache, Multisegmented (MB) | 256 |
| Organic Solderability Preservative | Yes |
| Mean Time Between Failures (MTBF, hours) | 2.5 Million |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0,35% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year (24x7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512, 520, 528 |
| 4Kn Sector Size (Bytes per Sector) | 4096, 4160, 4224 |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 254MB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170, 370 |
| Average Latency (ms) | 4,16 |
| Interface Ports | Dual |
| Rotational Vibration @ 1500Hz (rad/s²) | 12,5 |
| Idle A (W) Average | 5.5W |
| Max Operating Power, Random Write (WCD) 4K/4Q RR50% / RW50% | 9 |
| Max Operating Power, Random Read 4K/16Q (W) | 9,4 |
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C – 60°C |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 2,27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 70/40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 250Gs |
| Height (mm/in, max)5 | 26.11mm/1.028in |
| Width (mm/in, max)5 | 101.85mm/4.010in |
| Depth (mm/in, max)5 | 147.0mm/5.787in |
| Weight (g/lb) | 650g/1.433lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | Aug-40 |
