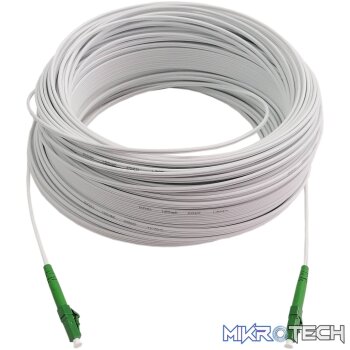

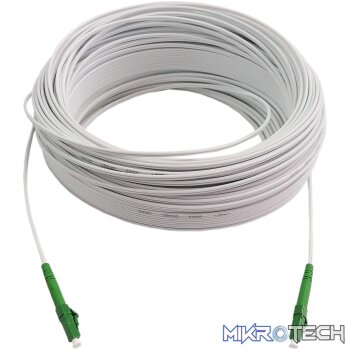

Fibre Outdoor 2 Core Dual Purpose Drop Cable 1km
R3,639.99 incl. VAT
In stock
Product Description
Overview:
FDC-1K2D is a single-mode, dual-purpose fibre cable with a gel-filled loose tube, designed for a multitude of applications. Featuring a UV stabilized jacket and manufactured from Low Smoke Zero Halogen (LSZH) material, this cable is suitable for both indoor and outdoor applications.
Suggested Application: Suited for both push and blown micro duct applications, as well as aerial installations up to 50m. Suggested for use in conjunction with our range of fibre products .
Product Specifications
| Weight | 15 kg |
|---|---|
| Dimensions | 40 × 34 × 42 cm |
| Fibre Core | 2 |
| Tube Diameter | 2.4 mm |
| Fibre per tube | 2 |
| Cable Diameter | 3.8 mm ± 5% |
| Cable Weight | 12 kg / km |
| Fibre Type | G657A2 |
| Installation tensile resistance ( ? 0.25% fibre strain) | 1.2 times 1km cable weight, not less than 144N |
| Short term crush | 650 N/100mm |
| Life Expectancy | 25 years |
| Min Bend Radius for installation - Static | 20 x OD |
| Min Bend Radius for installation - Dynamic | 20 x OD |
| Temperature Performance Range | -10°C to 70°C |
| Attenuation at 1310nm | ? 0.35 dB/km |
| Attenuation at 1550nm | ? 0.22 dB/km |
| Attenuation at 1625nm | ? 0.24 dB/km |
| 1310nm | 8.6 ?m ± 0.4 ?m |
| 1550nm | 9.6 ?m ± 0.5 ?m |
| Coating Diameter | 242 ?m ± 5 ?m |
| Core / Cladding Concentricity Error | ? 12 ?m |
