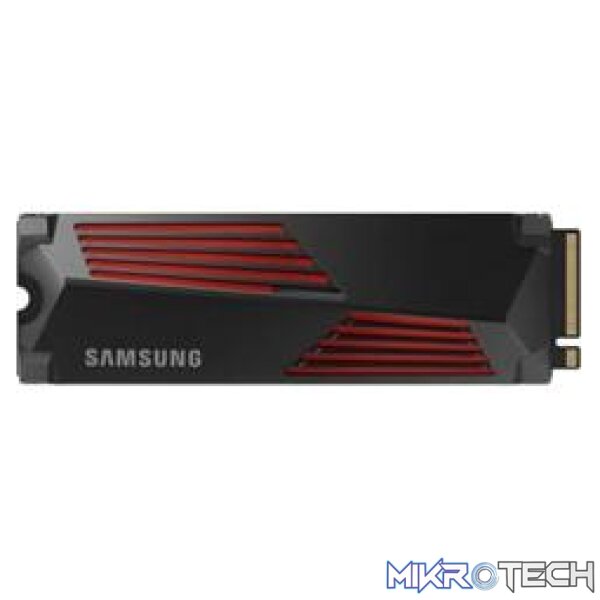

Samsung MZ-V9P1T0CW 990 Pro 1TB PCIe 4.0 NVMe 2.0 M.2(2280) SSD With Heatsink – Sony PlayStation 5 Ready
KEY FEATURES:
– 1TB Storage Capacity
– M.2 (2280) Form Factor
– PCIe 4.0 NVMe 2.0 Interface
– Sequential Read Speed: Up to 7,450 MB/s
– Sequential Write Speed: Up to 6,900MB/s
– Samsung Magician Software Supported
– Samsung Custom Controller
– MTBF: Up to 1.5M Hours
– 5 Year Limited Warranty Or 600TBW
Description
Samsung MZ-V9P1T0CW 990 Pro 1TB PCIe 4.0 NVMe 2.0 M.2(2280) SSD With Heatsink – Sony PlayStation 5 Ready
The Ultimate SSD
Reach max performance of PCIe® 4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller’s smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.
PCIe 4.0 speed maximized
Huge speed boost. 40%” and 55%” faster random read/write speeds than 980 PRO – up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.
Breakthrough power efficiency
More power-efficient performance.Higher performance usually consumes more power. But, 990 PRO uses less power with up to 50%” improved performance per Watt over 980 PRO.This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.
Smart thermal solution
Sink that heat.The slim heatsink dissipates heat to prevent performance drops from overheating. Get stable heat control, and minimal fan noise for heavy-graphic gaming.The thin body is compatible with PlayStation® 5, desktops, and laptops meeting the PCI-SIG® D8 standard.
| SPECIFICATIONS | |
| Brand | Samsung |
| Series | 990 Pro SSD’s |
| Model | MZ-V9P1T0CW |
| Application | Client PCs, Game Consoles |
| Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 4.0 x4, NVMe 2.0 |
| Dimension (Pack: WxHxD) | 80 x 24.3 x 8.2 mm (with heatsink) |
| Weight | Max 28.0g Weight |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 1GB Low Power DDR4 SDRAM |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Sequential Read | Up to 7,450 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 6,900 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) | Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD1) | Up to 22,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD1) | Up to 80,000 IOPS * Performance may vary based on system hardware & configuration |
| Average Power Consumption (system level) | Average: 5.4 WMaximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ? Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Management SW | Magician Software for SSD management |
| Warranty Information | |
| Warranty | 5 Year Warranty Or 600TBW |
