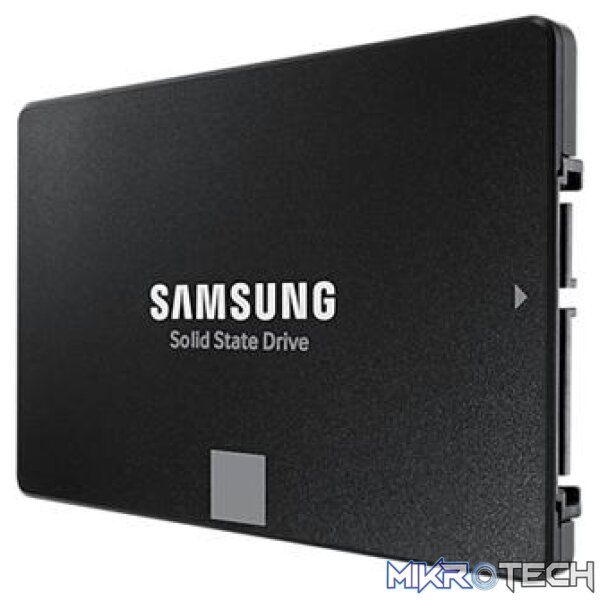

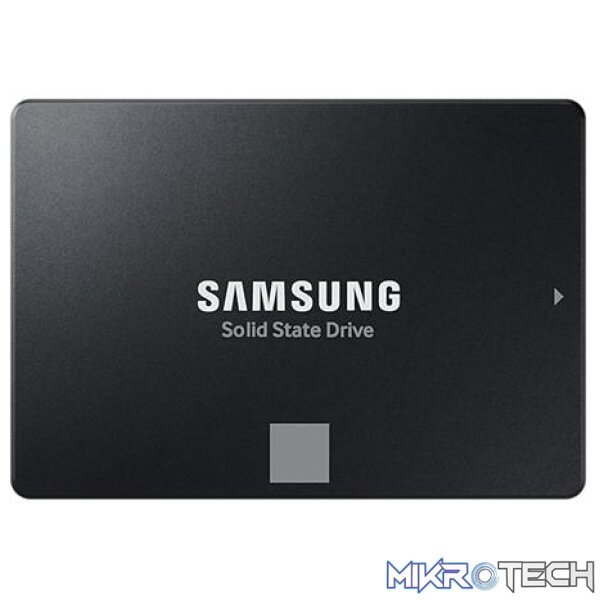

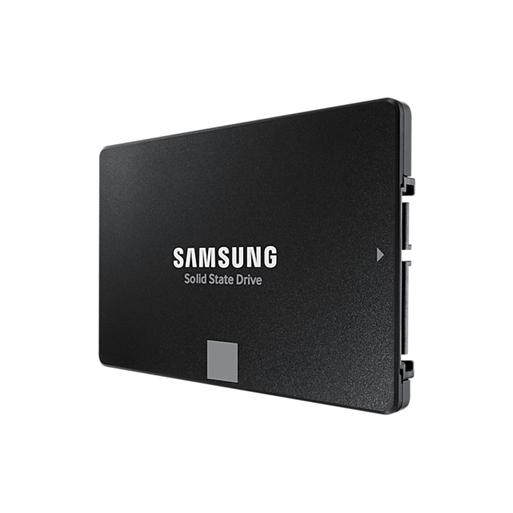

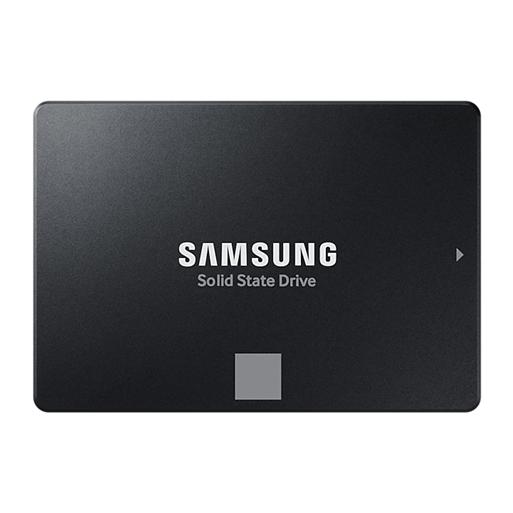

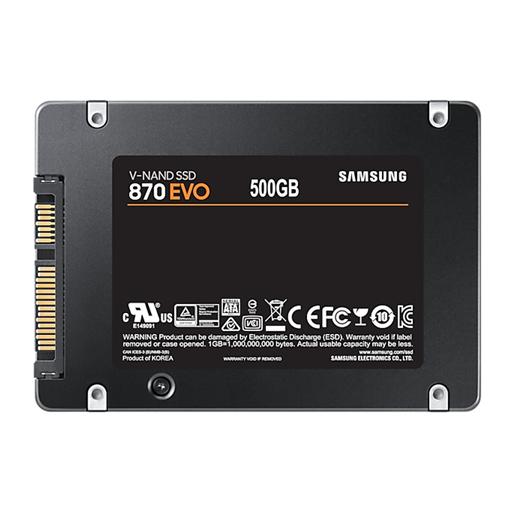

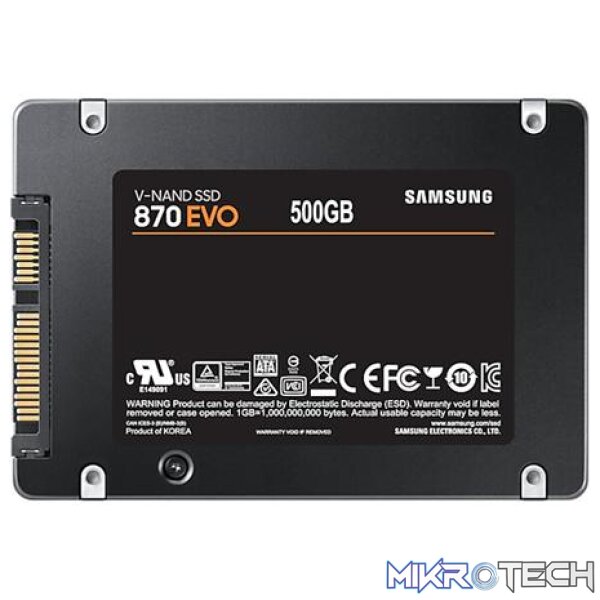

Samsung MZ-77E500BW 870 EVO 500GB 2.5″ SATA 3.0 6 Gb/s SSD
KEY FEATURES:
– 500GB Storage Capacity
– 2.5? Form Factor
– SATA 3.0 6 Gb/s Interface
– Sequential Read Speed: Up to 560 MB/s
– Sequential Write Speed: Up to 530 MB/s
– 4KB QD32 Random Read: Up to 98,000 IOPS
– 4KB QD32 Random Write: Up to 88,000 IOPS
– AES 256-bit Encryption
– Auto Garbage Collection Algorithm
– Flash Memory: Samsung V-NAND 3bit MLC
– Up to 1.5 Million Hours Reliability (MTBF)
– 5 Year Limited Warranty or 300 TBW
Description
Samsung MZ-77E500BW 870 EVO 500GB 2.5? SATA 3.0 6 Gb/s SSD
Features
- Highly reliable and sustainable performance
- Up to 560 MB/s sequential read and 530 MB/s write
- Up to 2,400 TBW guaranteed endurance
The world’s favorite SSD
The latest model of the world’s best-selling SSD series has finally arrived. The 870 EVO inherits the legacy of Samsung’s pioneering SSD technology, boasting upgraded performance, reliability, and compatibility to suit the needs of anyone from contents creators, IT professionals, to everyday us
Excellence in performance
The 870 EVO achieves the maximum SATA interface limit of 560/530 MB/s sequential speeds. Everyday users can now enjoy professional-level SSD performance.Intelligent TurboWrite accelerates write speeds and maintains long-term high performance with a larger variable buffer.
Industry-defining reliability
Providing up a 300 TBW under a 5year limited warranty, the 870 EVO meets the industry’s leading standards of reliability. It withstands tasks from everyday computing to 8K video processing and comes equipped with the latest 6th Gen. VNAND and MKX controller that ensure a stable host experience.
More compatible than ever
The 870 EVO passed compatibility tests with major host systems and applications, including chipsets, motherboards, NAS, and video recording devices. As the latest entry in the globally best-selling EVO series, the 870 EVO‘s proven versatility is compatible with systems and tasks of any user.
Upgrade with ease
Upgrading to the 870 EVO is made easy for anyone with a desktop PC or laptop that supports a standard 2.5-inch SATA form factor. Enjoying this masterpiece SSD is as convenient as plugging in the 870 EVO into a SATA slot, and letting the renewed migration software take care of the rest.
Samsung Magician software
Make your drive work like magic. The new and improved Samsung Magician 6 software will keep your SSD in check. You can easily manage your drive with a wide range of useful tools to keep up with the latest updates, monitor the drive’s health and status, or even enhance its performance.
World’s No.1 Flash Memory
Experience the superior performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
Specifications
| General Feature | |
| Application | Client PCs |
| Capacity | 500 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | 2.5 inch |
| Interface | SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface |
| Dimension (WxHxD) | 100 X 69.85 X 6.8 (mm) |
| Weight | Apporx. 45.0g Weight |
| Storage Memory | Samsung V-NAND 3bit MLC |
| Controller | Samsung MKX Controller |
| Cache Memory | Samsung 512 MB Low Power DDR4 SDRAM |
| Special Feature | |
| TRIM Support | TRIM Supported |
| S.M.A.R.T Support | S.M.A.R.T Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive) |
| WWN Support | World Wide Name supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated |
| Random Read (4KB, QD32) | Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated |
| Random Write (4KB, QD32) | Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated |
| Random Read (4KB, QD1) | Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated |
| Random Write (4KB, QD1)Q | Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated |
| Environment | |
| Average Power Consumption (system level) | Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 5V ± 5% Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 – 70 ? Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Accessories | Installation Kit nNot Available |
| Software | Management SW nMagician Software for SSD management, Data Migration Software for SSD upgrade |
| Endurance | 300 TBW |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
