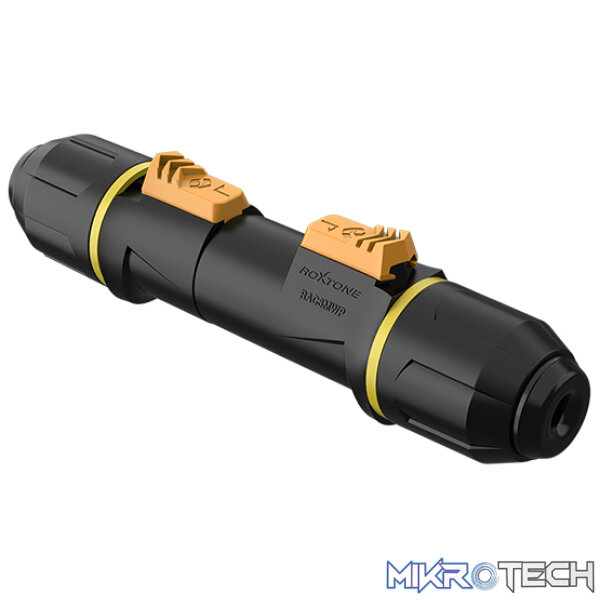

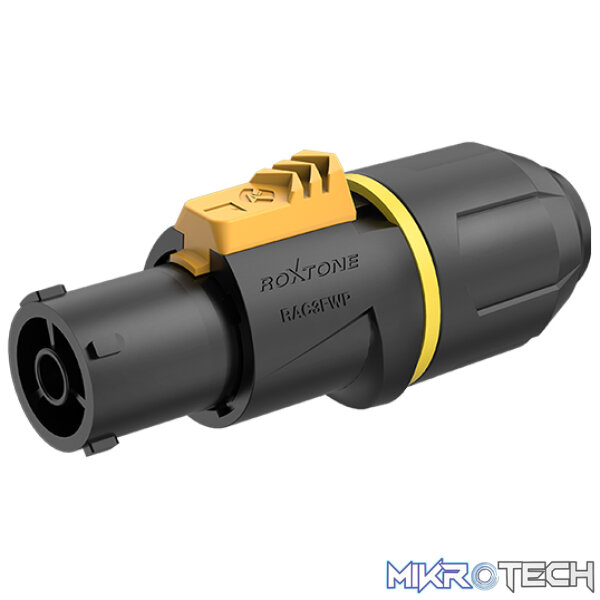

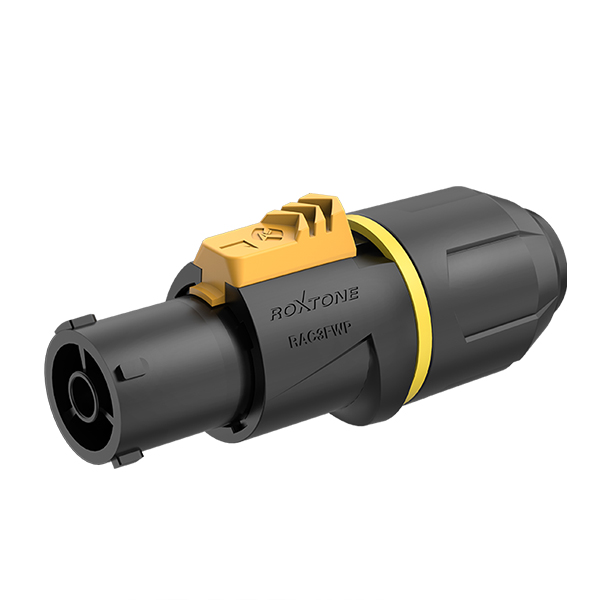

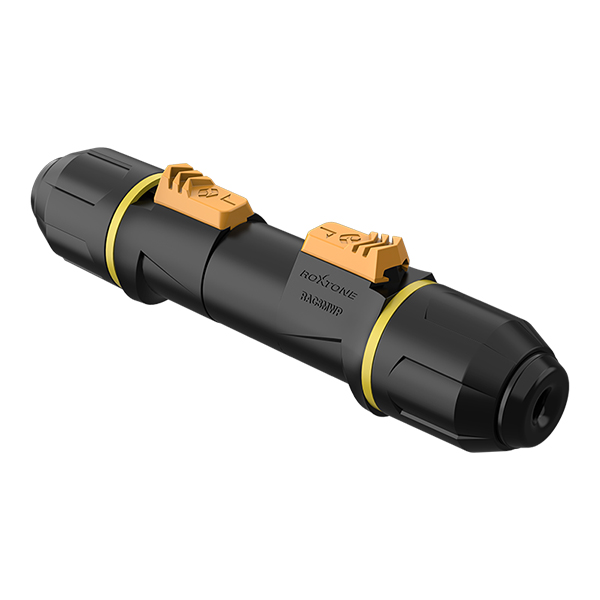

Roxtone – Powercon Input Inline Socket

XROSSLINK series power connector – Waterproof IP65

FEATURES:

• Unique design lockable 3 pin equipment(AC)connector, ideal for LED screen, lighting and other equipments
  Dust and water resistant according to IP65 in mated condition
  Fast and easy twist lock system
  Flame retardant materials create safer use
  Glass fiber composite material, extremely robust and reliable
  ROXTONE brand engraved ont the shell
  Patent protected

SPECIFICATIONS:

• Housing – PA6 30% GR
  Insert – PA66 20% GR
  Latch – Zinc Alloy diecast
  Unitary contacts – Bronze
  Contacts plating – Silver
  Strain relief – POM
  Sealing bushing
  Silicone Color ring – PA6 20% GR
  Number of contacts – 3
  Rated current per contact – 20 A rms
  Rate voltage – 250 V ac
  Cable O.D. range – 6-12 mm
  Protection class(mated) – IP65
  Fammability – UL V-0:
