Product Description
Overview:

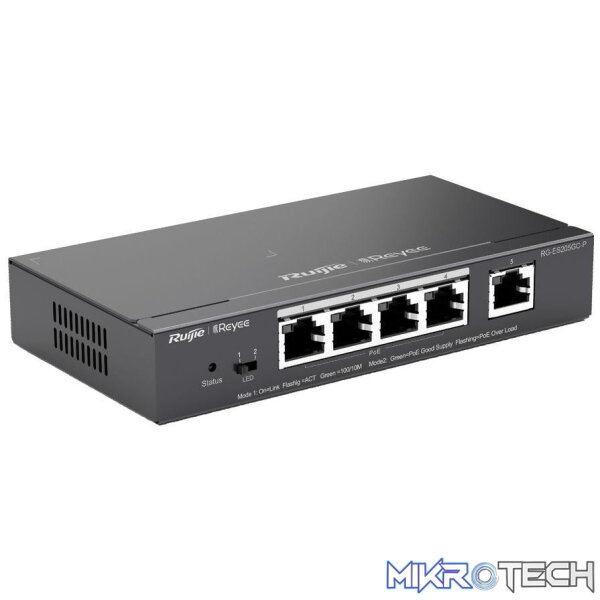

Reyee’s RG-ES205GP is a 5 port Gigabit switch with 4x 802.3af/at PoE ports and a Gigabit Ethernet uplink port. The switch offers a 54W PoE budget and up to 30W per PoE port. It supports Ruijies smart networking feature, which with Ruijie’s free cloud service allows users to auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.
Product Specifications
| Model Specifications | RG-ES205GC-P |
|---|---|
| Ports | 4 10/100/1000 Base-T ports (802.3 af/at compliant), 1 10/100/1000 Base-T port |
| Maximum output power per PoE port | 30W |
| Maximum PoE output power per switch | 54W |
| Switching capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Surge protection | Common mode: 4KV |
| Electrostatic discharge | Air discharge: 6KV Contact discharge: 4KV |
| Power consumption | ?60W |
| Power supply | External power adapter |
| Dimensions (W x D x H) | 148*78*26mm |
| MTBF | 200K |
| Operating temperature | 0 to 40°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| MAC capacity | 2K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off |
| Security | Support broadcast storm suppression, port speed limit, port isolation |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app |
