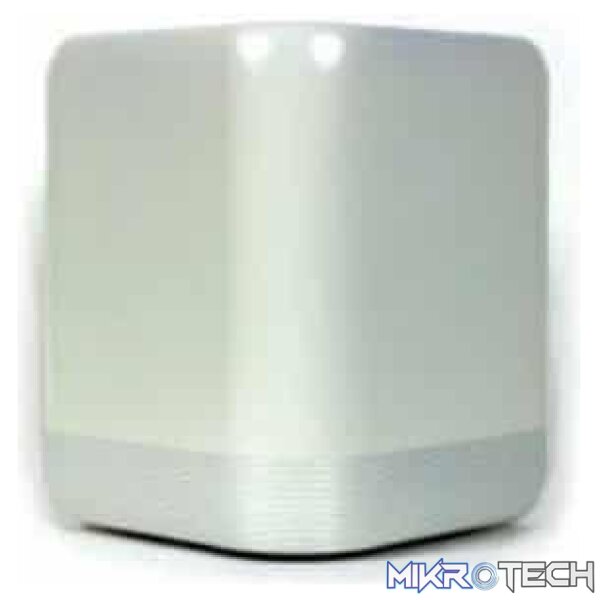

Name: Radwin 5000 Base Station multisector antenna Dual 90 degrees sectors
SKU: RW-MS1500-SA-EXT
Price: 12799.99 ZAR
Availability: OutOfStock

Radwin 5000 Base Station multisector antenna Dual 90 degrees sectors

R12,799.99 incl. VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

By ticking this box you agree to an account being created using the given email address and to receive waitlist communications by email

Enter your email address to join the waitlist for this product

Product Description

Features:

1.5Gbps multi-sector dual carrier base station for low TCO deployments
RADWIN MultiSector[tm] is an innovative base station solution for network operators, looking to provide MicroPoP broadband connectivity in locations sensitive to TCO. This includes areas beyond the network footprint with fewer customers such as rural villages, small business parks on the city outskirts or private network operations such as oil and gas fields and more.

RADWIN MultiSector is a unique, fully integrated dual-carrier PtMP base station that provides coverage of up to 360°. The MultiSector solution provides up to 1.5Gbps and assures low Capex and OpEx. It also outperforms omni antenna MicroPoP solutions that are highly sensitive to radio interference.

MultiSector is a self-contained base station that supports entry level and cost sensitive wide-scale deployments while significantly minimizing site complexity, tower space, installation time and cost, by reducing glue components on the tower. MultiSector can seamlessly scale up in capacity, number of sectors and the amount of customers served.

Highly flexible, the MultiSector architecture allows for a variety of external antenna connections to extend the customer reach or support self-backhaul.

MultiSector highlights

1.5Gbps dual carrier base station
180° coverage using two integrated 90° sector antennas
Up to 360° coverage using an add-on MultiSector Antenna unit or 3rd party external antenna
Built-in GPS
Optional self-backhaul, no need for a PtP radio
Single PoE or SFP port per site

Product Specifications

Net aggregate Capacity	Up to 1.5 Gbps (2 x 750 Mbps)
Frequency band and regulation	FCC: 5.1, 5.8GHz IC:5.8GHz, Universal: 4.9-6GHz, ETSI: 5.4, 5.8GHz
Subscriber Units (SUs) support	Two models are available: Up to 16 or up to 128 per unit
End to End Latency	Typical: 3.5msec
SLA management	CIR, MIR, Best Effort
Radio access scheme	OFDM, Auto MIMO 2×2 /Diversity per SU
Adaptive Modulation	(BPSK/QPSK/16QAM/64QAM/256QAM
Encryption	AES 128
Duplex Technology	TDD, Configurable Uplink/Downlink ratio
TDD Synchronization	Inter and Intra site synchronization through built-in GPS
Max Tx Power	23 dBm per radio per port
Antenna gain (BS unit)	13dBi
Channel Bandwidth	Configurable: 10, 20, 40, 80 MHz, automatic selection between 20,40,80MHz
Data Interfaces	1000BaseT (over PoE) or SFP (1GbE Full Duplex, supports single and multi-mode)
PoE to ODU Interface	Outdoor CAT-5e, Maximum cable length: 75m for 1000BaseT
Sub convergence layer	Layer 2, Bridging learning of 5K MAC addresses
QoS	Packet classification to 4 priority queues according to 802.1P or Diffserv
VLAN Support	802.1Q, QinQ, 4094 VLANs
Protocol	IPv4/IPv6 dual-stack, SNMP v1 and v3, HTTP/ HTTPS using web browser
NMS application	RADWIN NMS -WINManage
ODU Dimensions	24(w) x 34 (h) cm per side
ODU Weight	4 kg
Power Feeding	Provided over PoE cable
Power Consumption	30W
Operating Temperatures	-40°C to 60°C / -31°F to 140°F
Humidity	100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m)
Safety	US/CAN (cTUVus), CE/IEC
EMC	FCC, ETSI, CAN/CSA-CEI/IEC, AS/NZS
Architecture	Two 90° antennas (4 x TNC type)
Antenna gain	13dBi
Dimensions	24(w) x 34 (h) cm per side
Weight	4 kg
