Product Description
Overview:

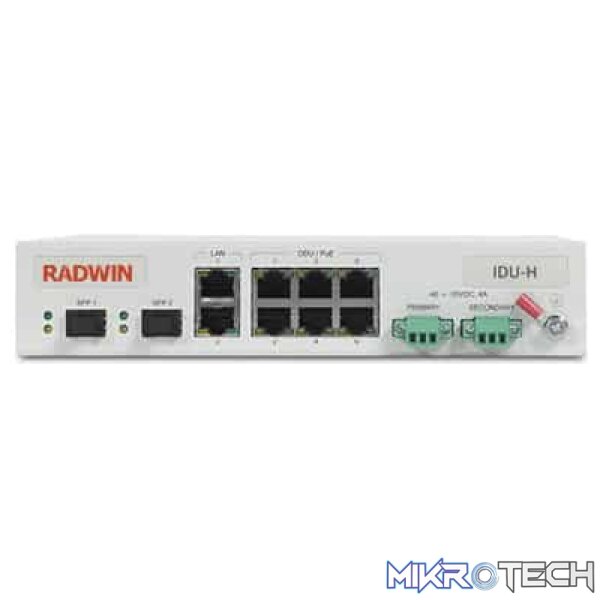

RW-IDU-H-HP is a carrier class indoor unit that provides 6 x ODU ports, 2 x Ethernet ports and 2x SFP Ports. RW-IDU-H-HP supports a wide range DC power feeding. It is a scalable solution that is compatible with RADWIN PtP and PtMP radio portfolio.
Product Specifications
| Weight | 1.36 kg |
|---|---|
| Dimensions | 30.000000 × 30.000000 × 8.000000 cm |
| PoE interfaces | 6 x PoE ports operating in legacy mode (10/100/1000Mbps), Up to 25W per port, Supports all ODUs (except small-form-factor HSUs) |
| Ethernet ports | 2×10/100/1000 BaseT, Auto-Negotiation (IEEE 802.3u), Framing/Coding IEEE 802.3 |
| Connector | RJ-45 |
| Impedance | 100? |
| SFP Interface | 2xGbE SFP Ports |
| VLAN Support | Transparent |
| Maximum Frame Size | 2048 Bytes |
| Bridge | Layer 2, self-learning of up to 1024 MAC addresses (IEEE 802.1Q) |
| Latency | 3 ms |
| Dimensions | 22(w) x 5(h) x 21(d) cm |
| Weight | 1.5 kg / 3.31 lbs |
| Power Feeding | Dual redundant power feeding, -45VDC to – 55VDC 4A |
| Power Consumption | 150W @ Maximal Power feeding |
| Operating Temperatures | -40°C to 60°C / -40°F to 140°F |
| Humidity | Up to 90% non-condensing |
| TUV | IEC/EN 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60590-1 |
| ETSI | EN 300 386, EN 301 489-1, EN 301 489-4 |
| FCC | Class B Part 15 Subpart B |
| CAN/CSA | ICES 003 CISPR 22 Class B |
| AS/NZS | CISPR22 Class B |
