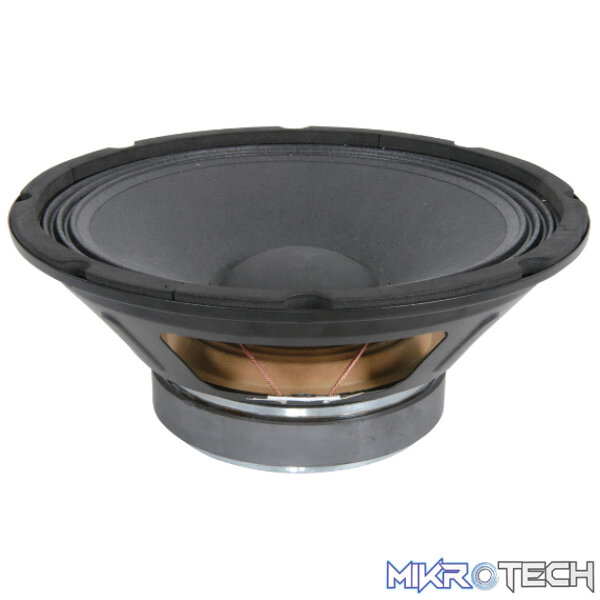

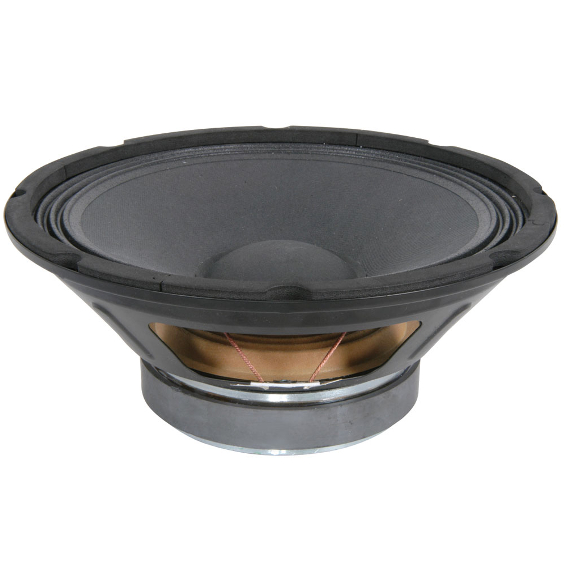

Qtx – Qr Passive Series Replacement Drivers

A range of chassis speakers to replace the main driver in the QTX QR series passive cabinets.

FEATURES:

• Vented magnets
• Spade terminals

SPECIFICATIONS:

• Impedance:
  8 OhmsPower max.
• Power rms:
  150W
• Magnet size:
  120 x 20mm
• Diameter:
  25cm (10″)
• Frequency response:
  50Hz – 6kHz
• Magnet weight:
  850g (30oz)
• SPL @ 1W/1m:
  95dB
• Voice coil:
  52mm (2″)
• Dimensions:
  108mm x 255mmØ
• Weight:
  2.85kg
