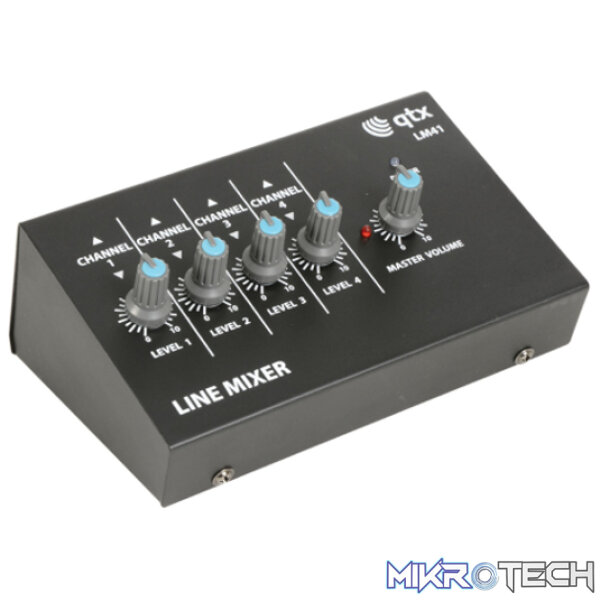

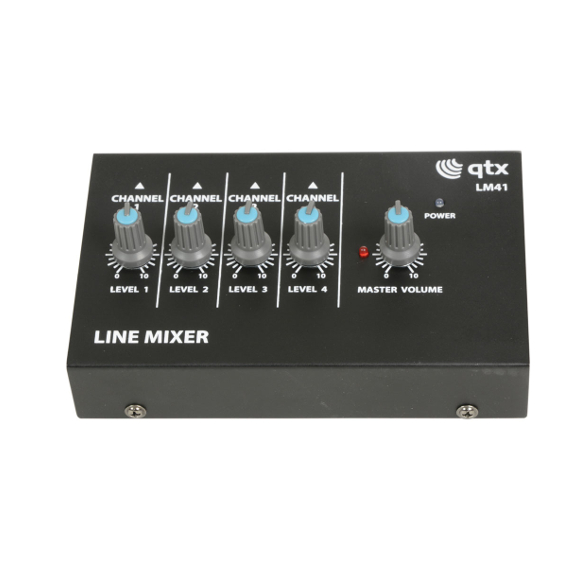

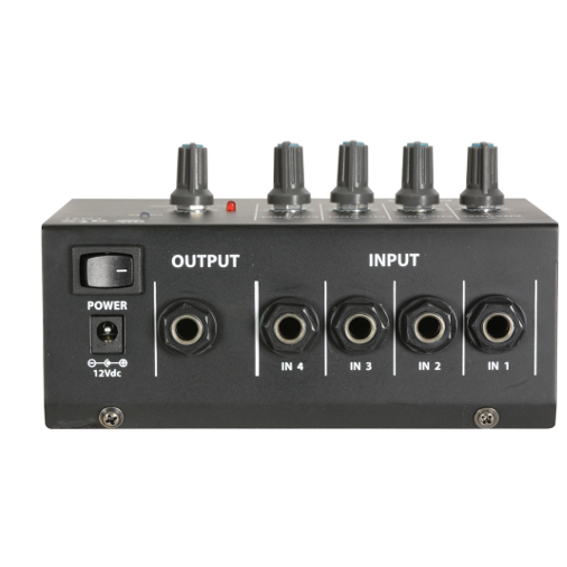

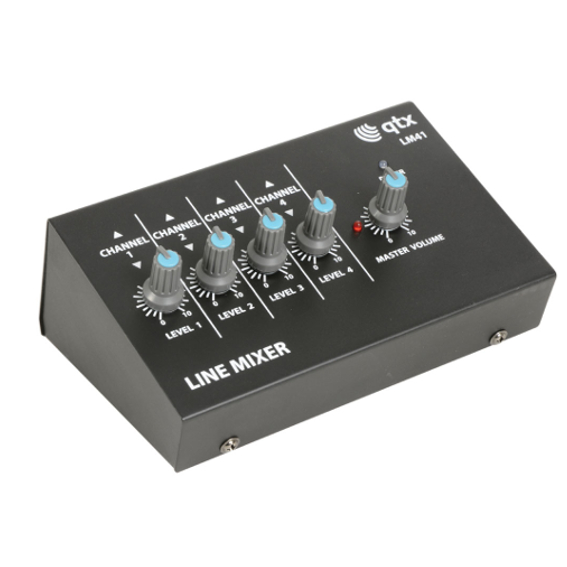

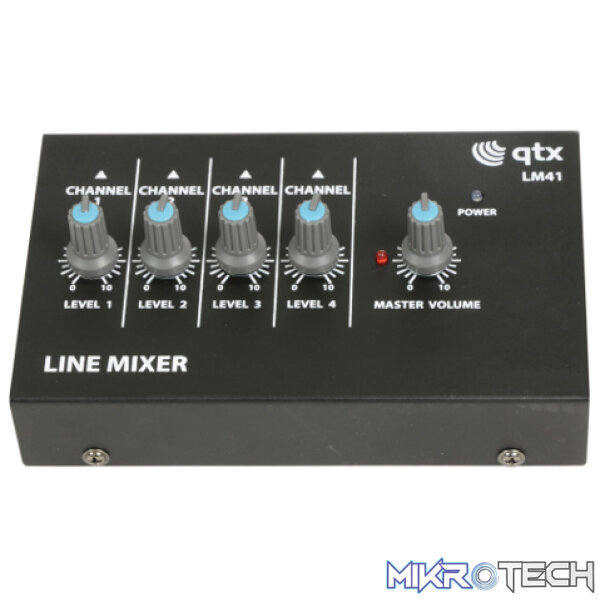

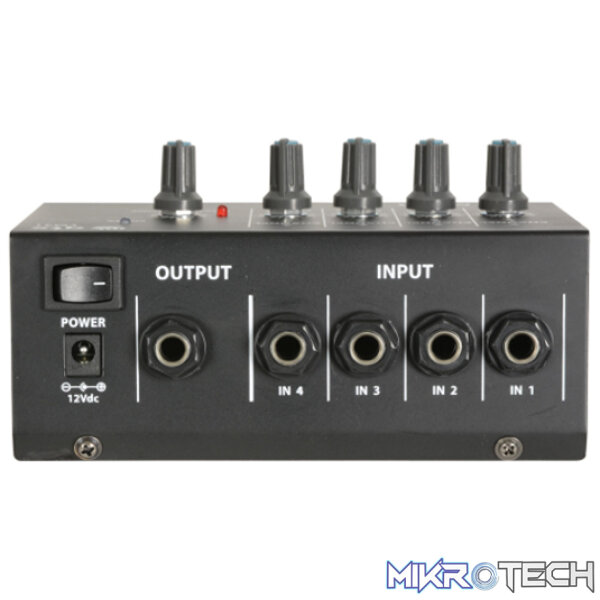

Qtx – Mini Line Level Mixers

Compact mixers with high impedance jack inputs suitable for auxiliary line level or instruments, mixing to a master jack output. Available as either 4 mono or 4 stereo version with separate volume controls for each input and master output. Powered by 1 x 9V battery or optional 12Vdc adaptor

FEATURES:

• Available in mono or stereo versions
• Optional 12Vdc power input
• Supplied with 9V battery

SPECIFICATIONS:

• Battery:
  9V battery (PP3 supplied)
• Power adaptor:
  12Vdc, 200mA (optional)
• Output level:
  +4dB (+8dB max.)
• Input impedance:
  20k Ohms
• Output impedance:
  600 Ohms
• Dimensions:
  150 x 108 x 64mm
