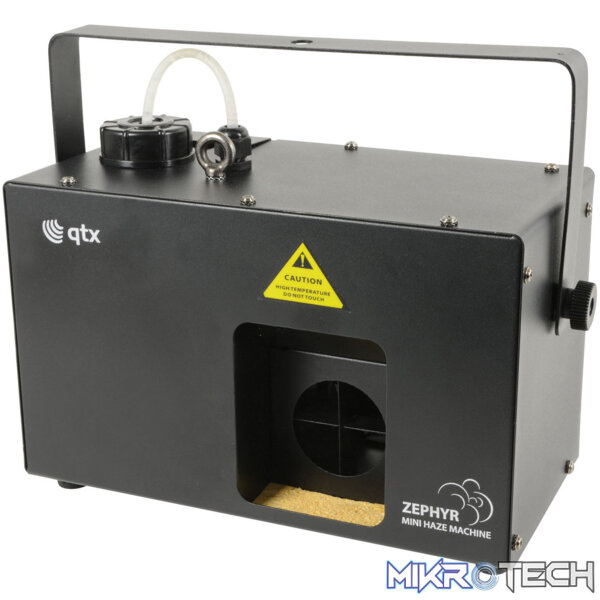

Qtx – Zephyr Haze Machine

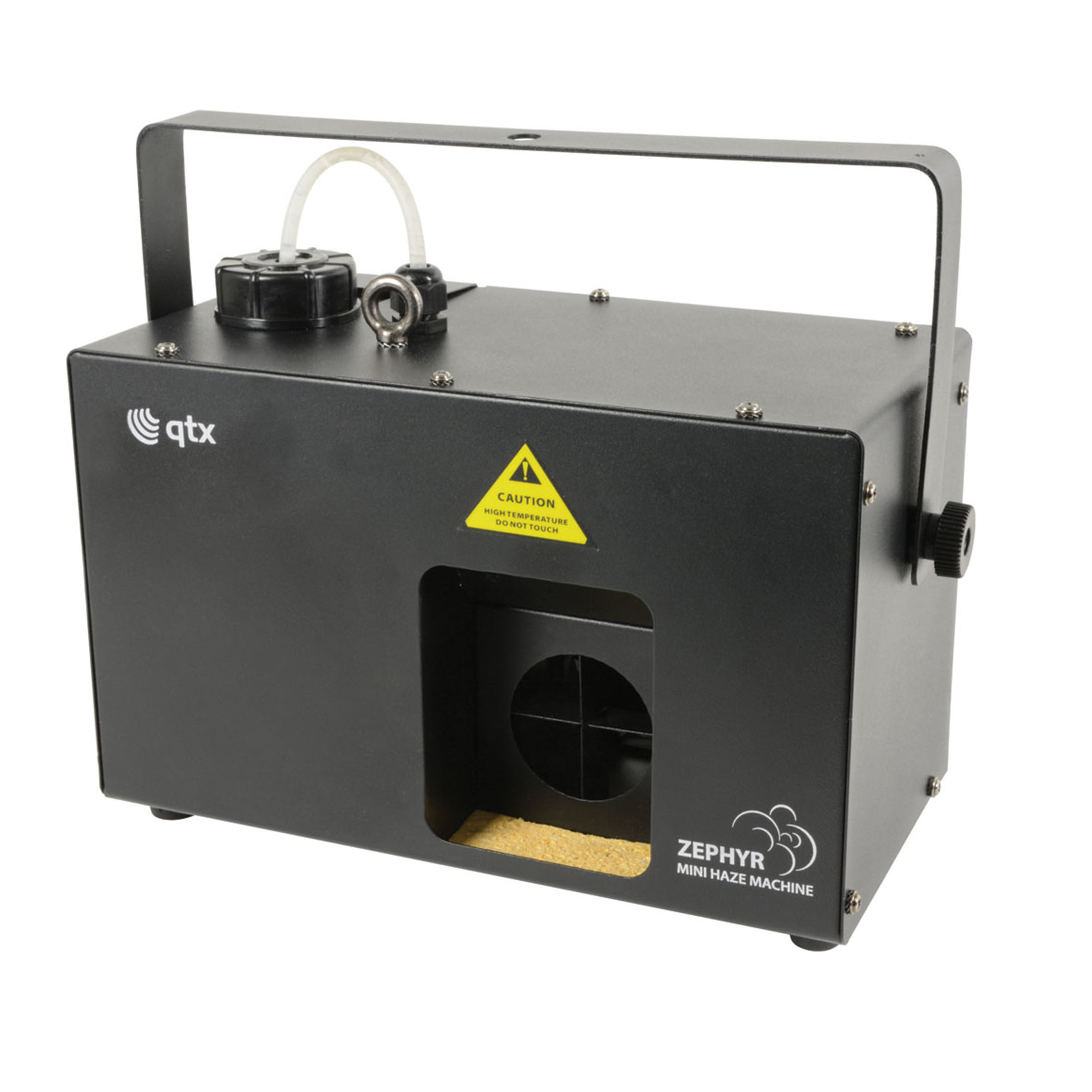

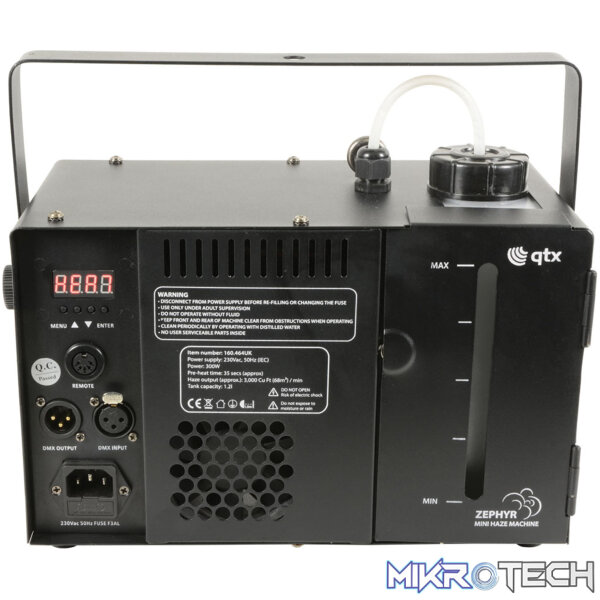

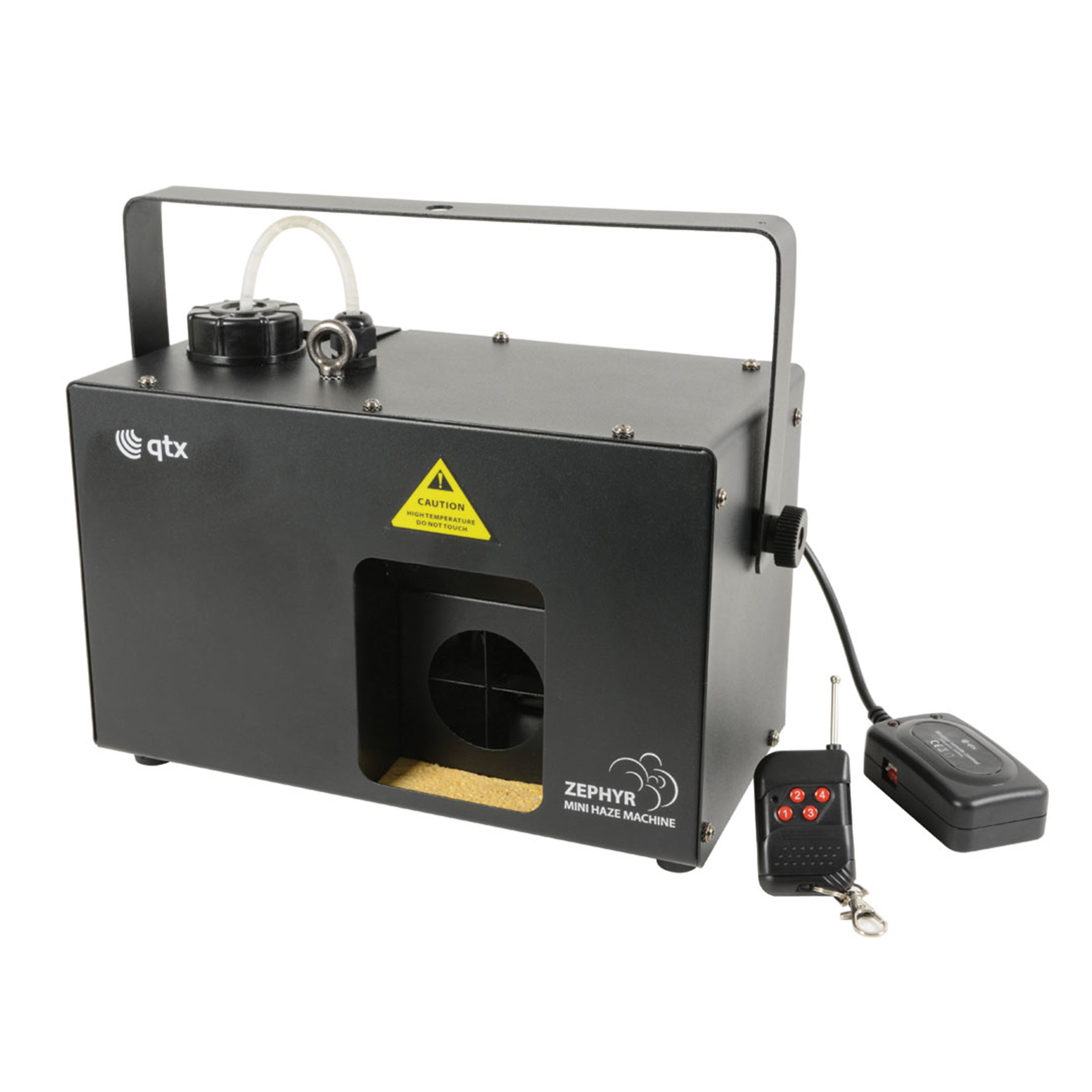

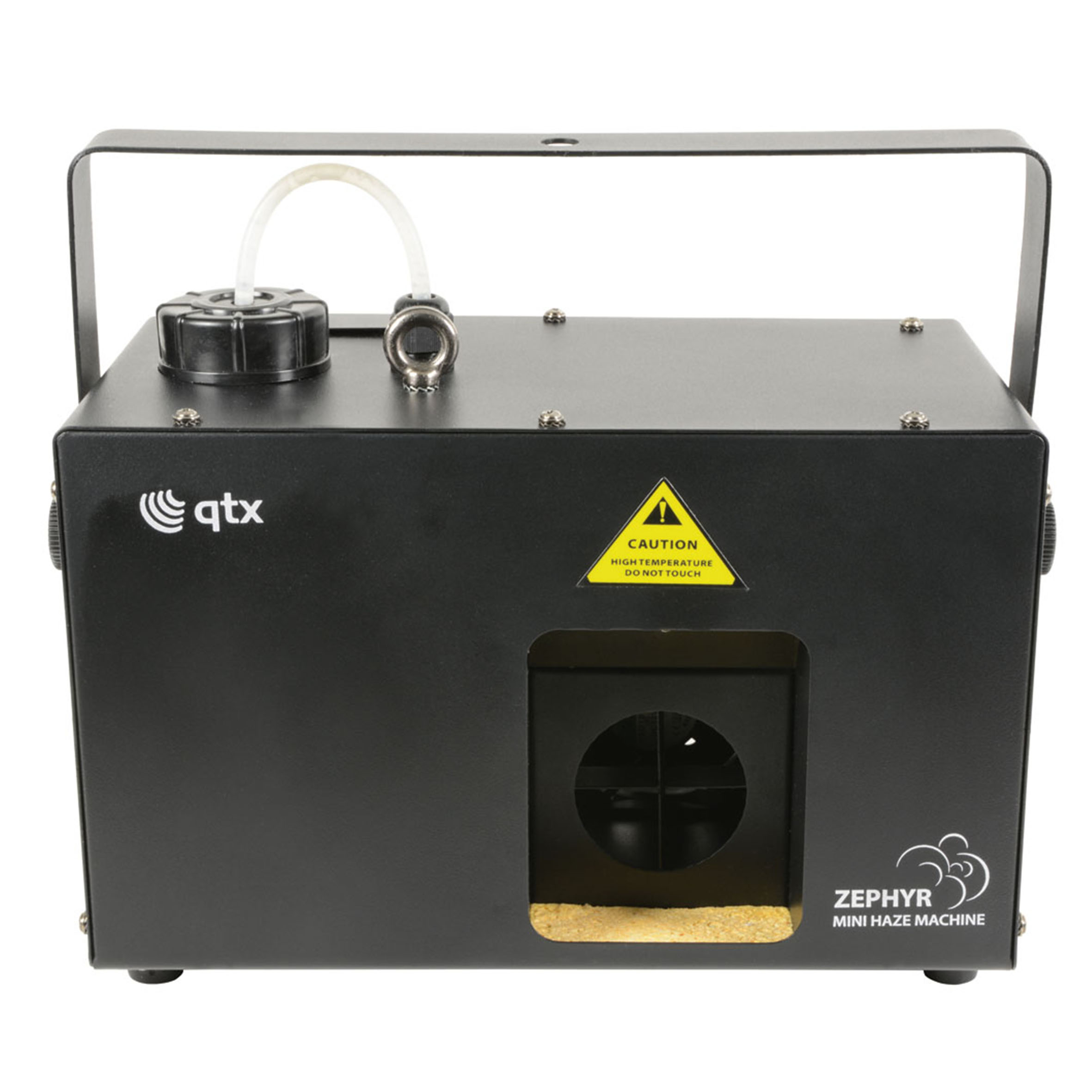

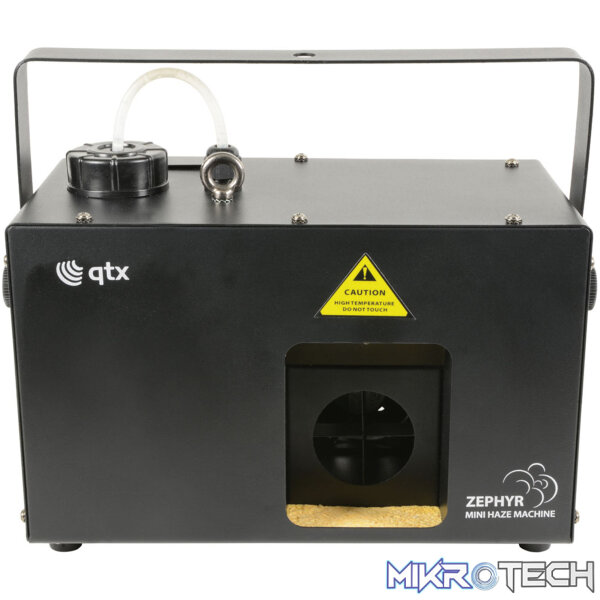

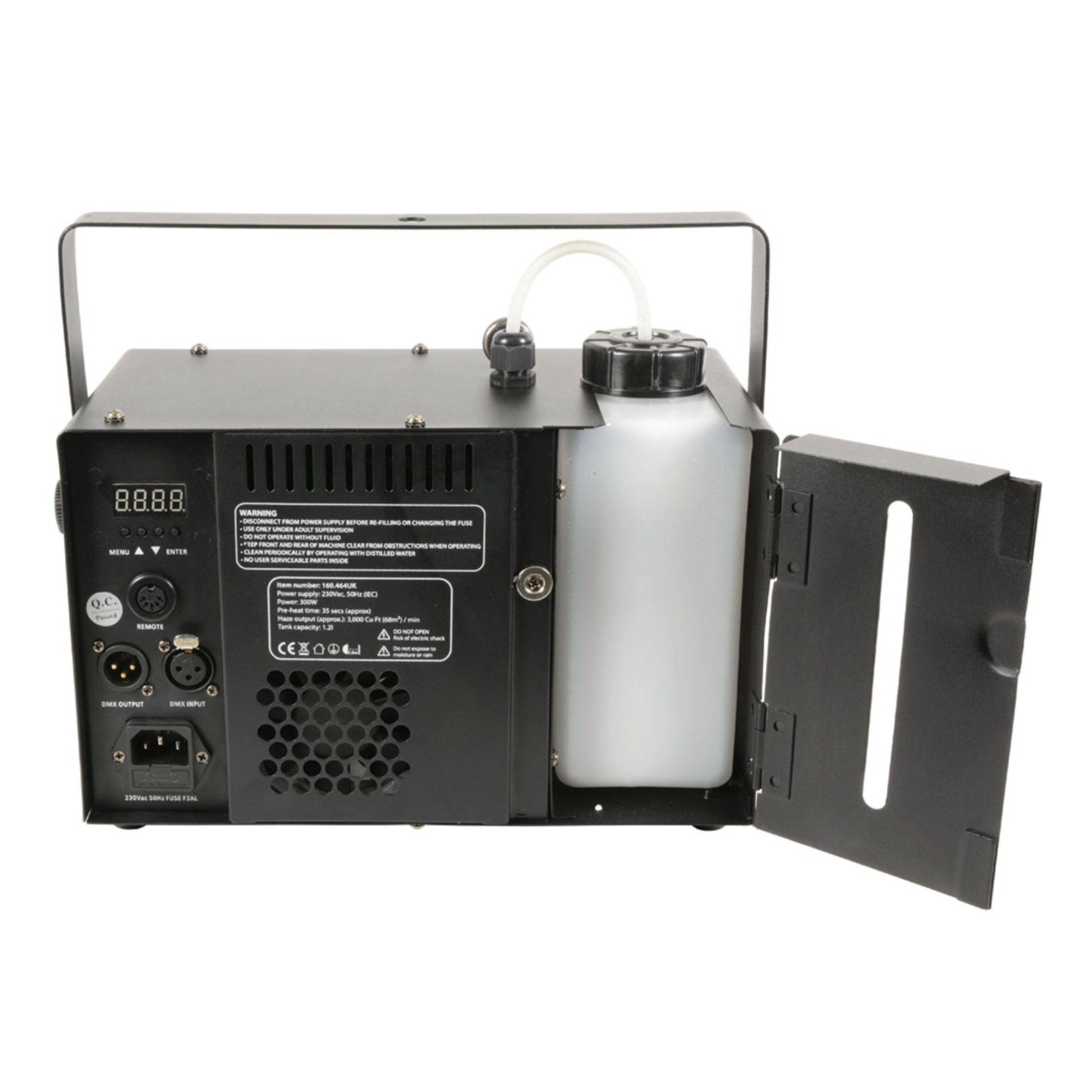

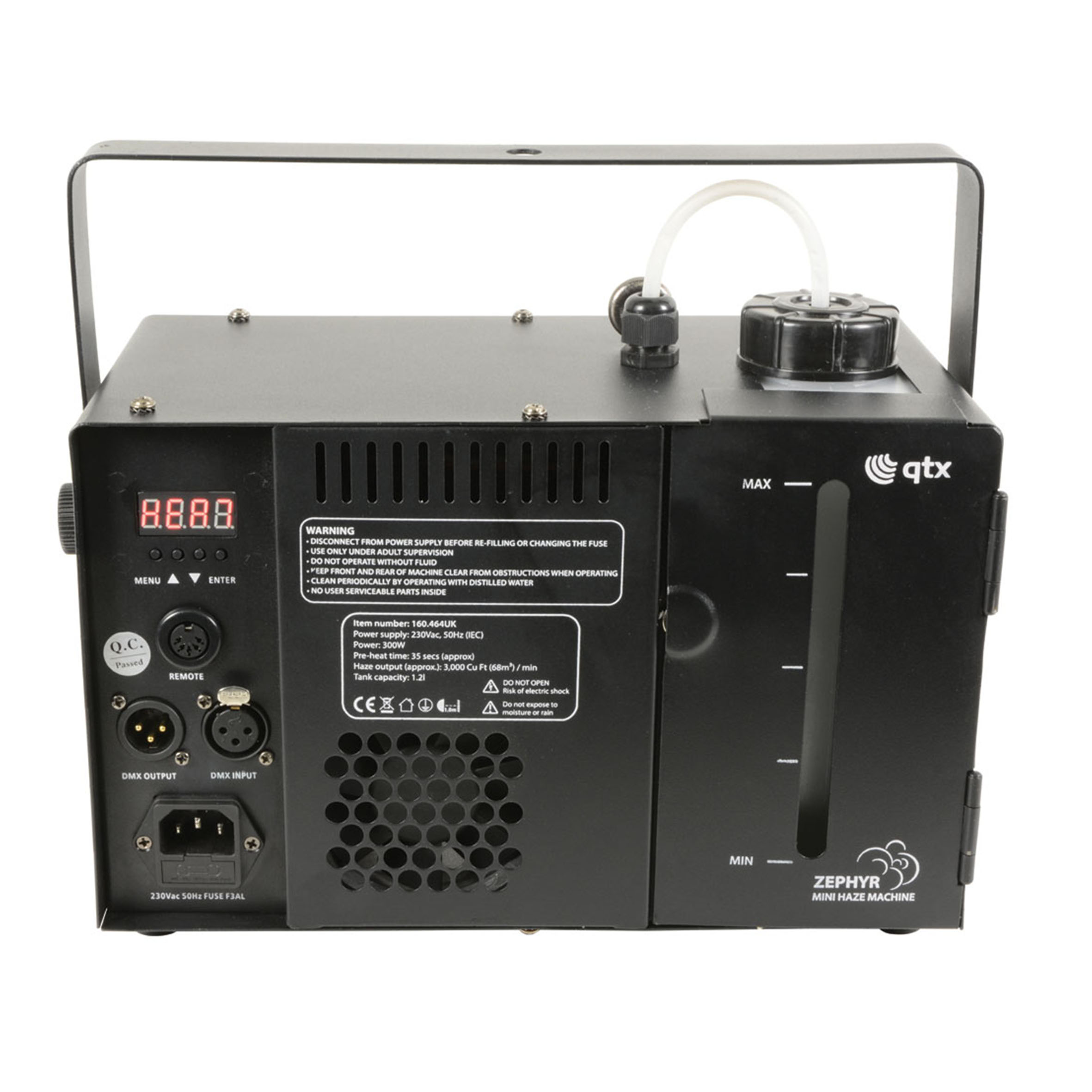

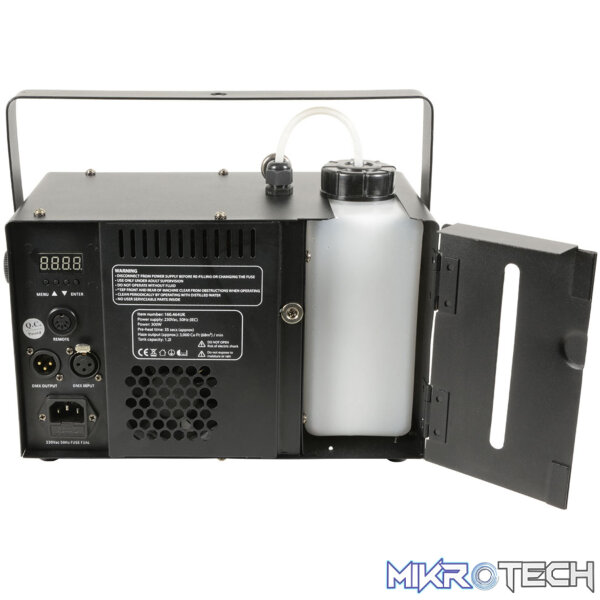

Digitally controlled haze machine with a sturdy metal housing for medium sized venues. Haze output can be set via the rear control panel and controlled from the included keyfob-style RF wireless remote or by DMX signal. A hinged door at the rear allows the fluid bottle to be removed for easy refilling and a slot window to show the fluid level. Designed to offer professional level haze effects in a compact format for easy installation and portability.

FEATURES:

• Compact housing with minimal footprint
• Digitally controlled output rate
• Removable fluid tank

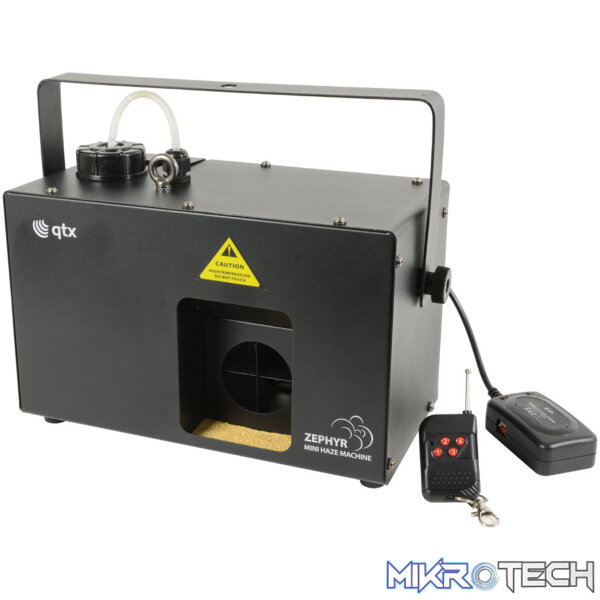

• Supplied with wireless remote control
• DMX512 compatible

SPECIFICATIONS:

• Power supply:
  230Vac, 50Hz (IEC)
•
  Power:
  300W
•
  Tank capacity:
  1.2 litre
•
  Haze output:
  (approx.) 3,000 CuFt (68m³) per minute
•
  Reheat time:
  35 seconds (min.)
•
  Controls Output:
  (0-255), Fan speed (0-255)
•
  Fuse:
  F3AL 250V
•
  Remote control frequency:
  433MHz
•
  DMX channels:
  2 (output & fan)
•
  DMX connection:
  3-pin XLR in & out
•
  Dimensions:
  253 x 336 x 155mm
•
  Weight:
  3.56kg
•

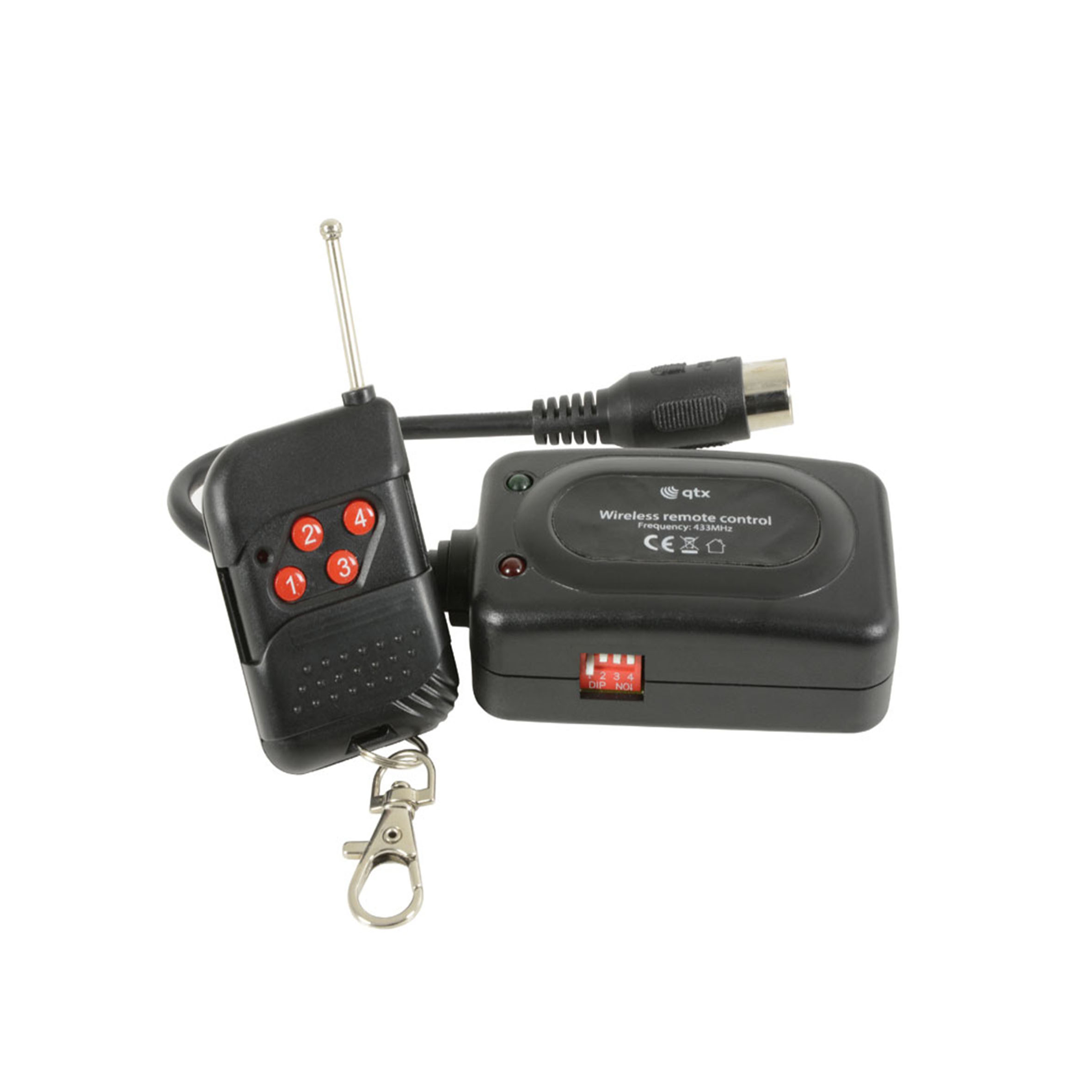

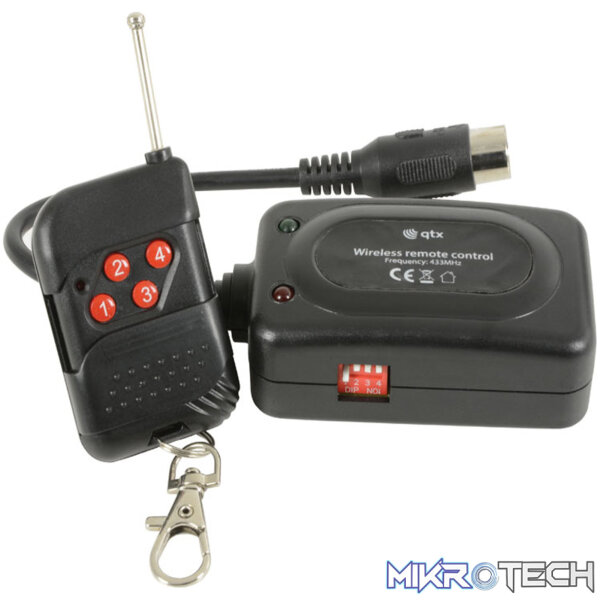

  Remote control:
  RF keyfob & receiver (5-pin DIN)
