Power Dynamics – Pdm-S804A Powered Stage Mixer With Dsp/Bt/Usb/Mp3

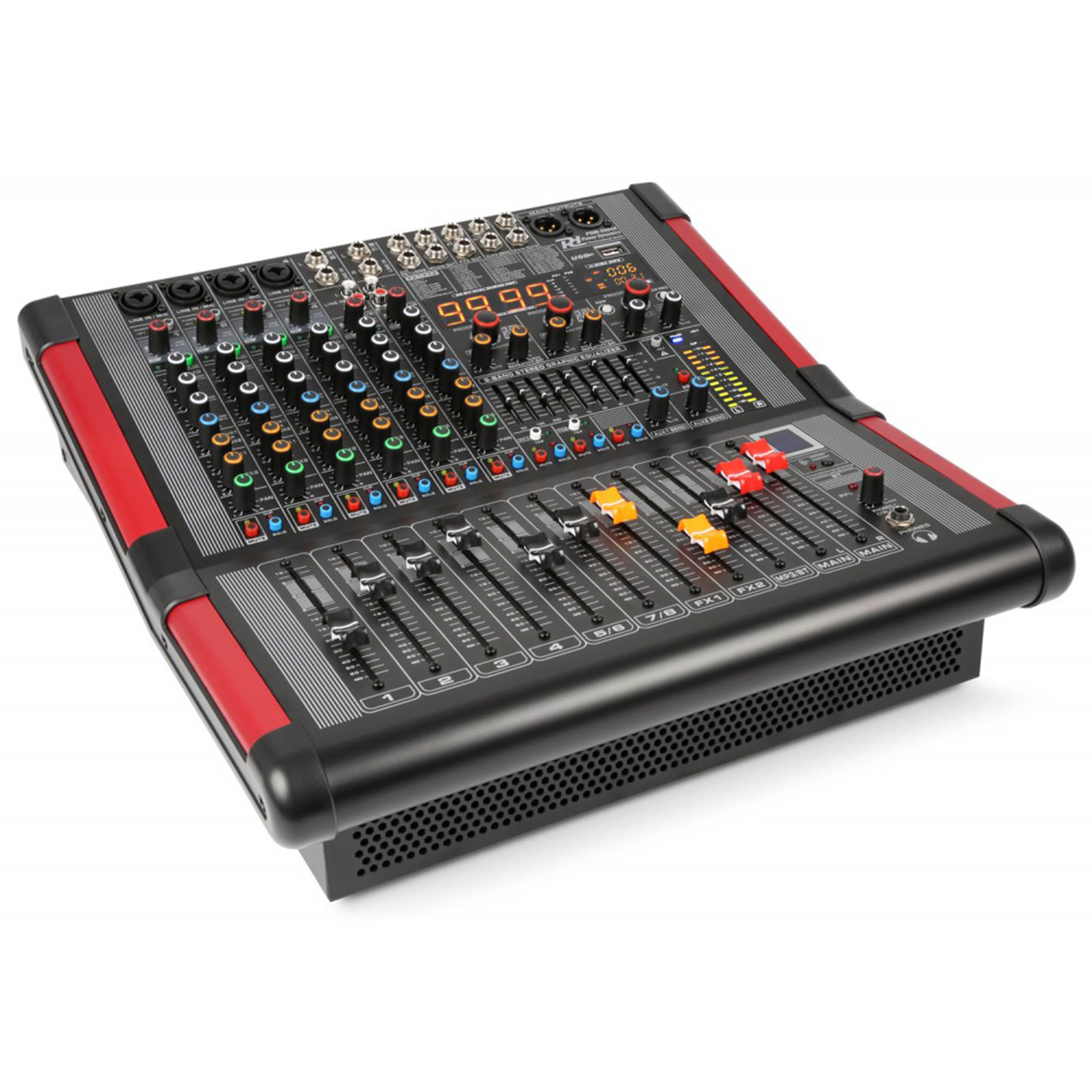

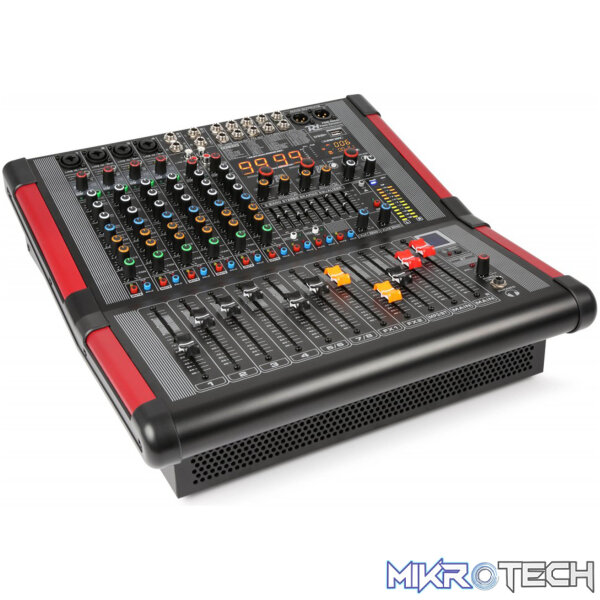

Table top design stage mixer with built-in amplifier and many attractive features. Features include mute and solo switches on every channel, built-in USB player with digital display and BT receiver.

FEATURES:

• 4 Balanced mono microphone-/line input (Combi XLR/Jack)
• 2 Balanced stereo line inputs (6.3mm Jack)
• 2 Balanced stereo line inputs (RCA)
• +48V phantom power with individual preamp per channel
• 75Hz Low cut filter per channel

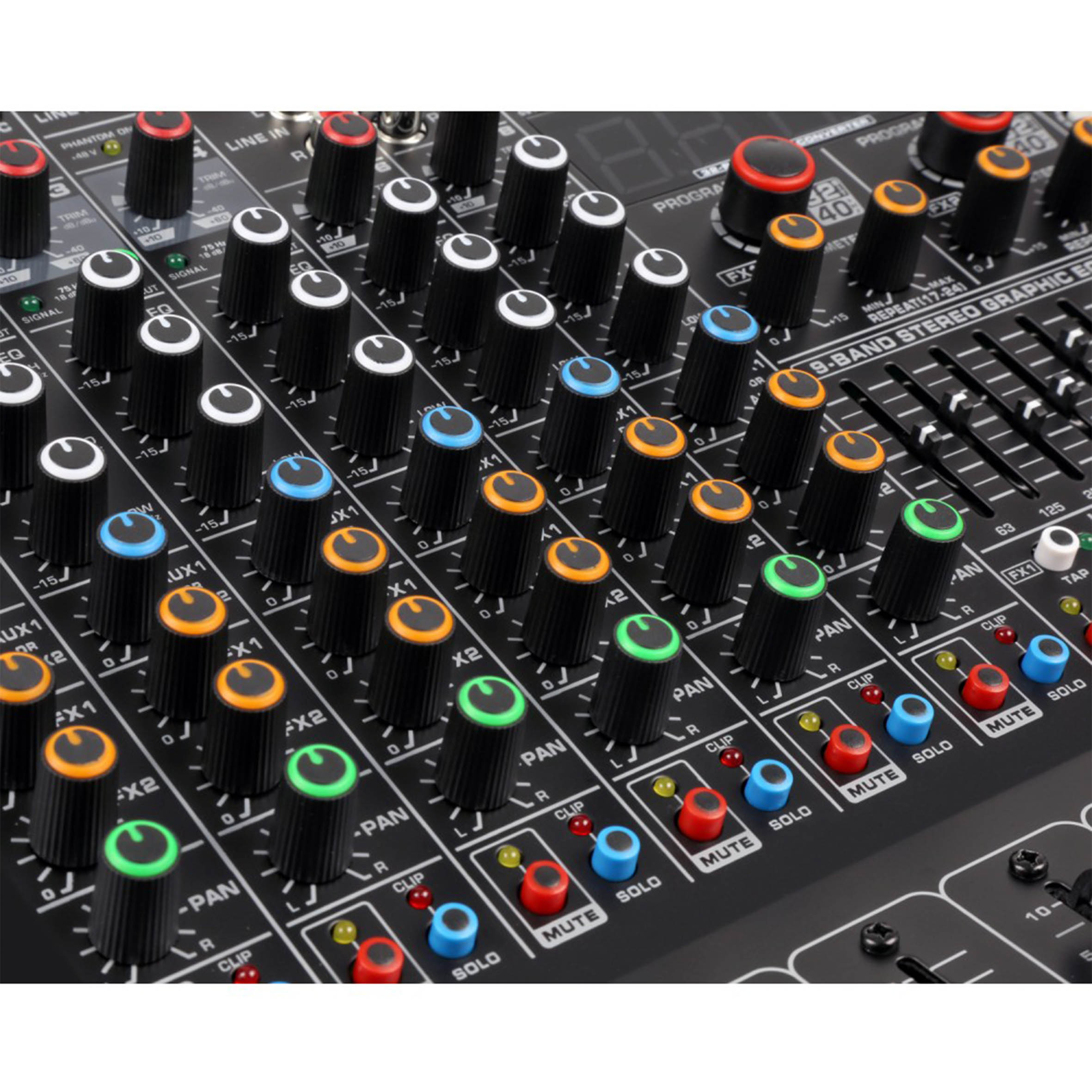

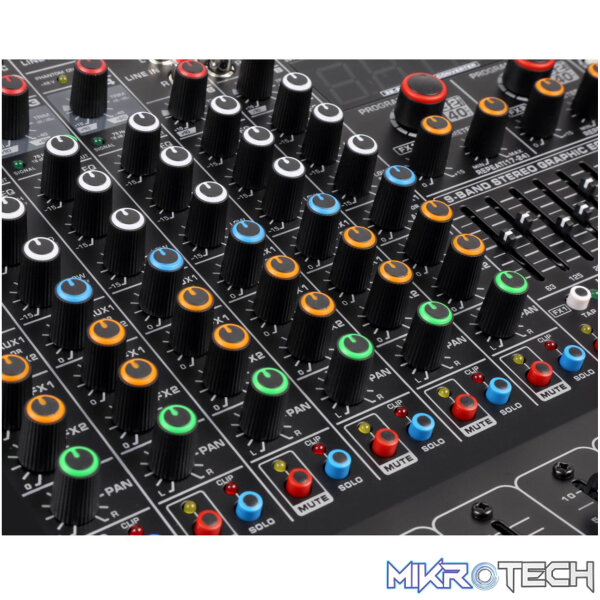

• Adjustable FX, Pan, Trim per channel
• Aux send per channel
• Solo switch per channel (PFL)
• Mute switch per channel
• Dual Multi-FX processor with both 99 presets
• Built-in 2x 350W RMS Amplifier

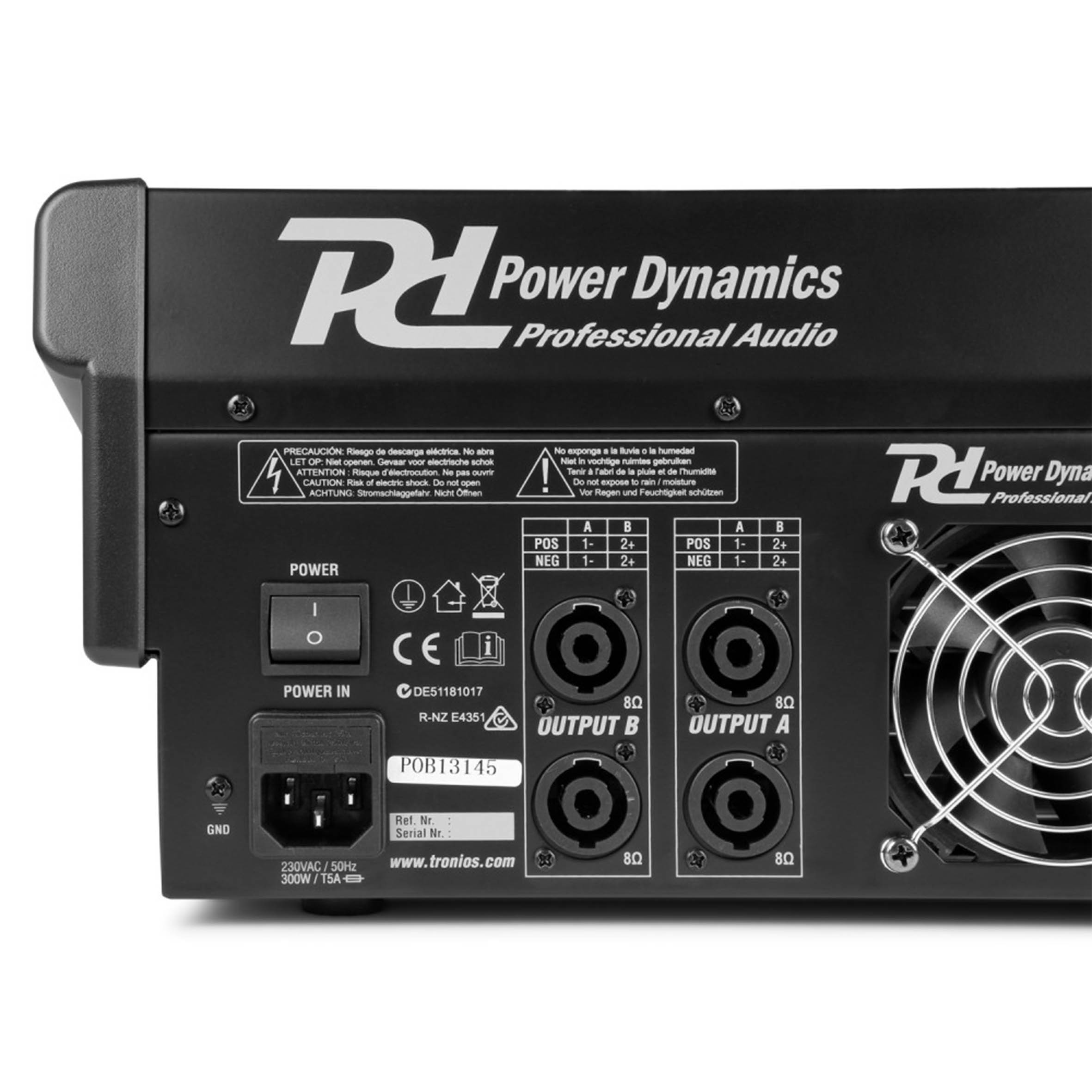

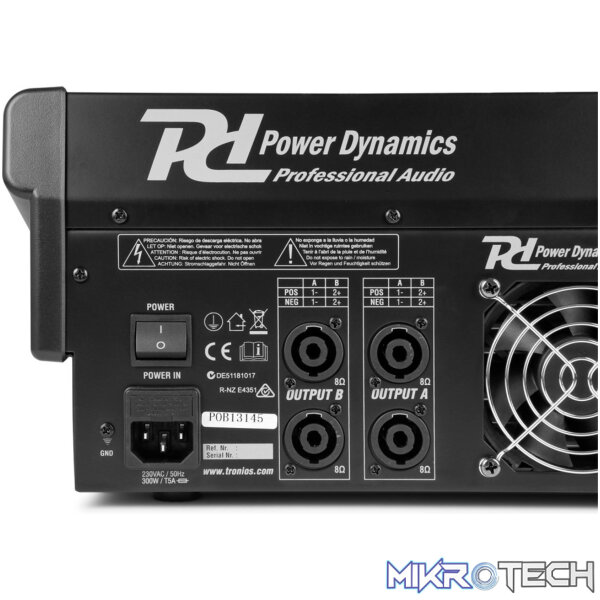

• Stereo balanced main outputs (XLR + 6.3mm Jack)
• 9-Band Equalizer
• Separate control room and headphones outputs

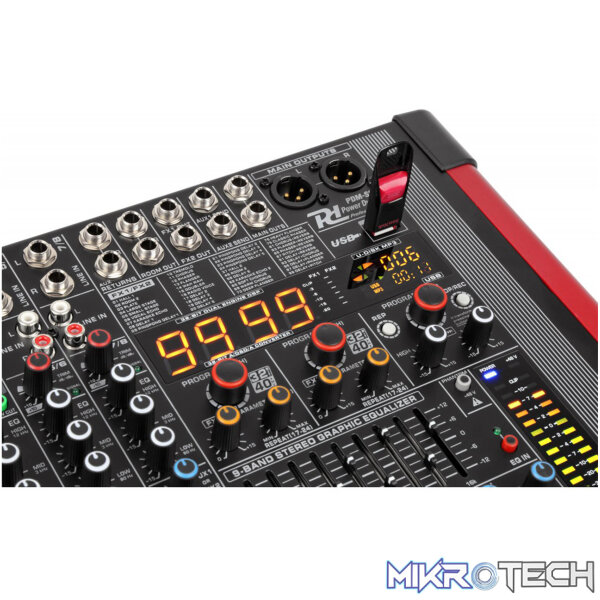

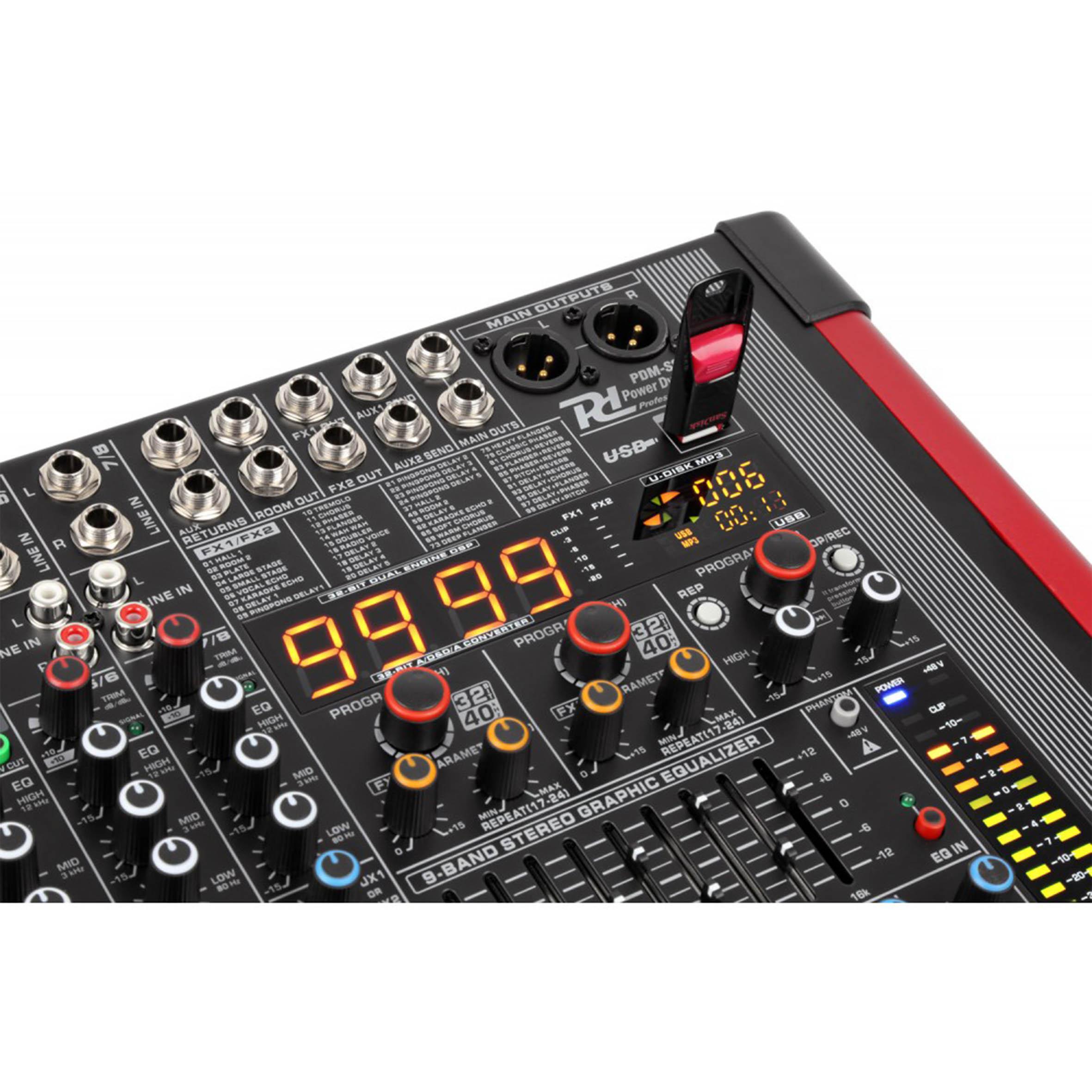

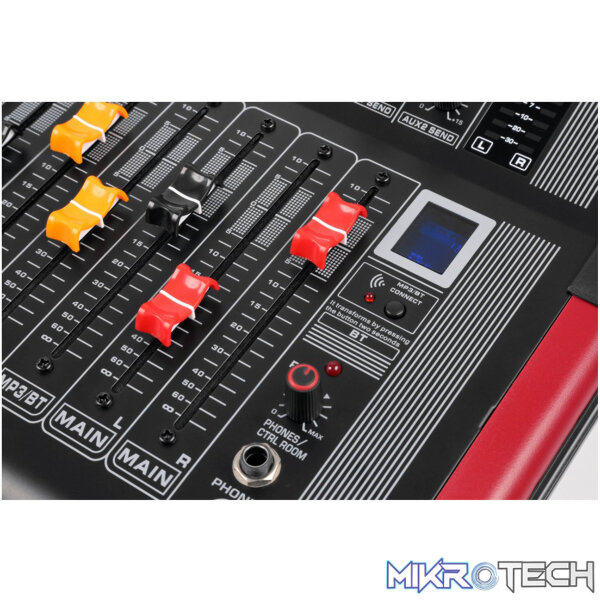

• Built-in USB player with digital display

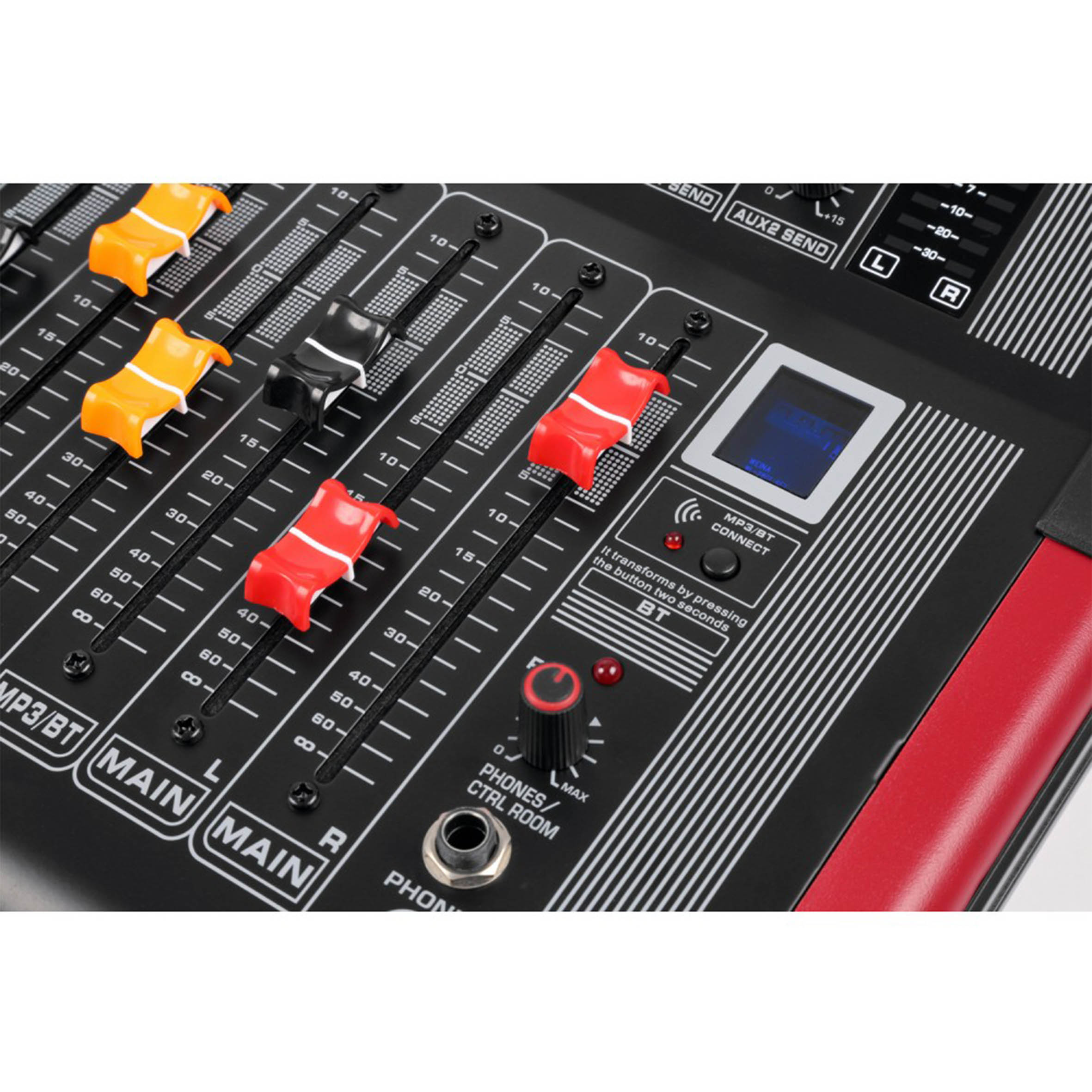

• BT-receiver for audio streaming
• LED VU meter and Peak LED’s

SPECIFICATIONS:

• Power Continue:
  2x 350W rms
•
  Output power:
  700W
•
  Frequency response:
  10Hz -45kHz (±3dB)
•
  THD:
  <0.01%
  DSP Resolution
•
  Type of effects:
  Early ref, Chorus, Phaser, Flanger, Symphonic, Doubler, Radio voice, Distortion, Delay, room, Chapel, Hall, Plate, Gated, Reverse, Ambience, Pitch shift, Ping pong delay
•
  Presets:
  2x 99
•
  Output level:
  +/- 1V
•
  Input:
  Line +/- 150mV
•
  Input:
  Mic +/- 1.5mV
•
  Power supply:
  220-240VAC / 50-60Hz
•
  Dimensions:
  425 x 415 x 166mm
•
  Weight:
  12kg
