Power Dynamics – Pdm-S2004 Stage Mixer Stage Mixer With Dsp/Bt/Usb/Mp3

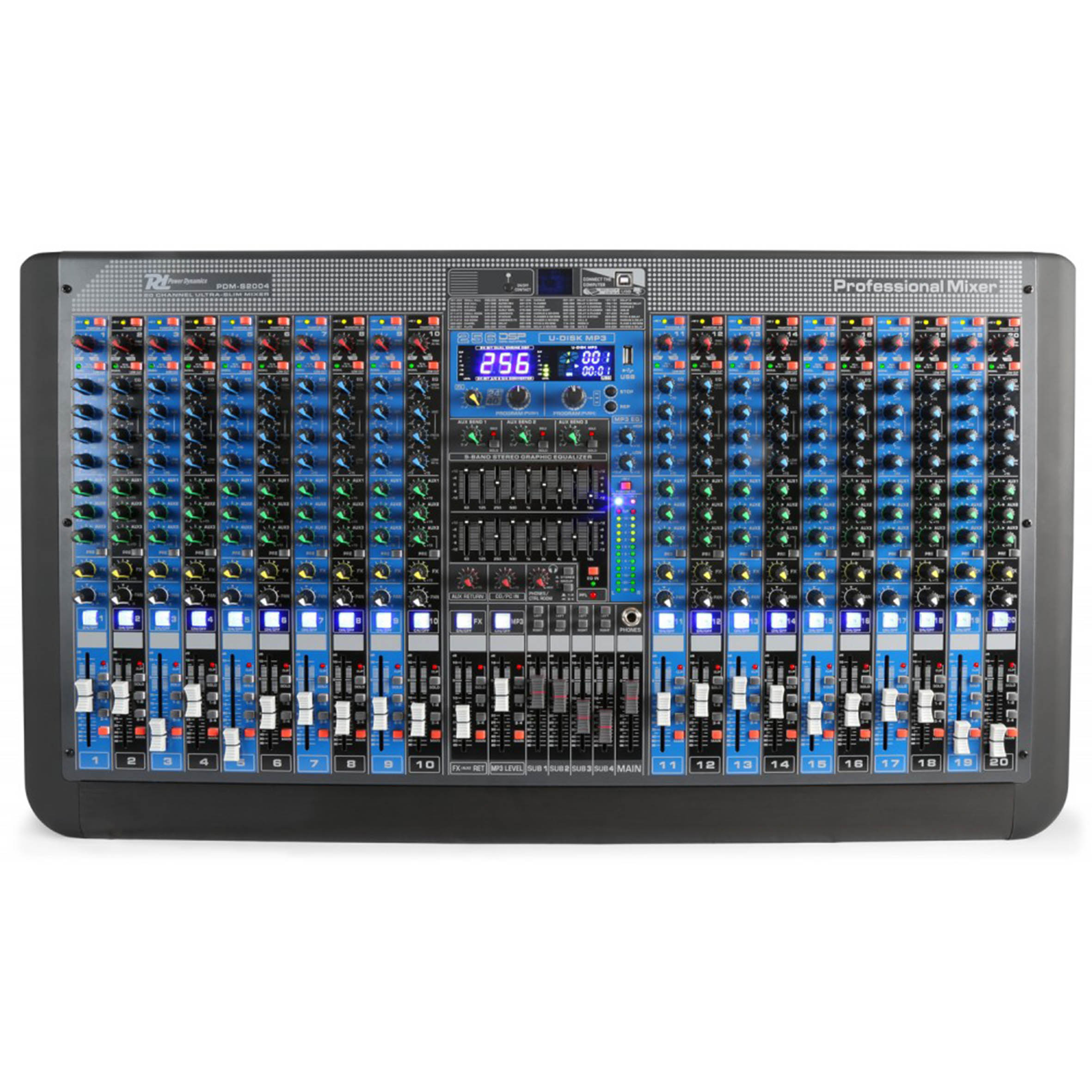

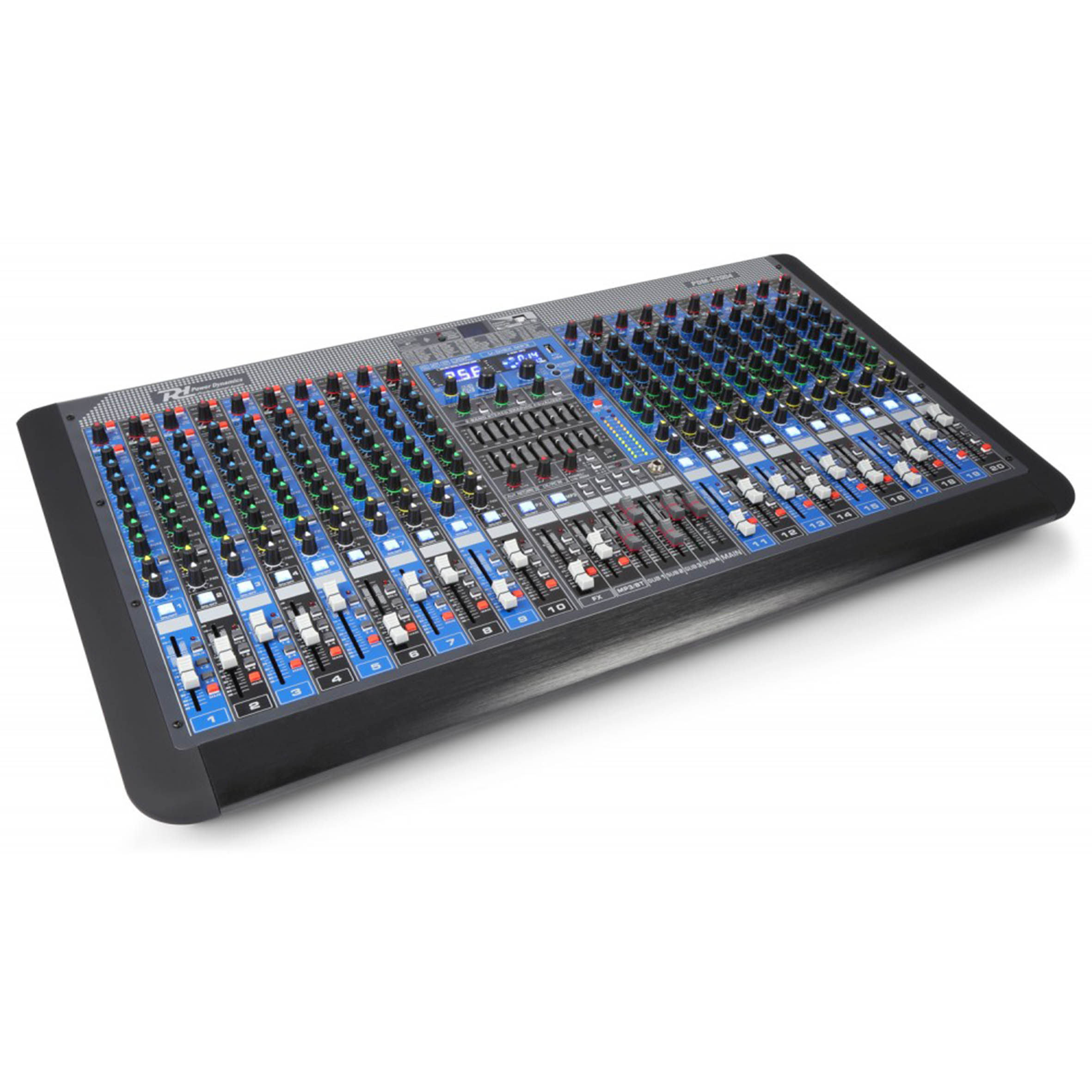

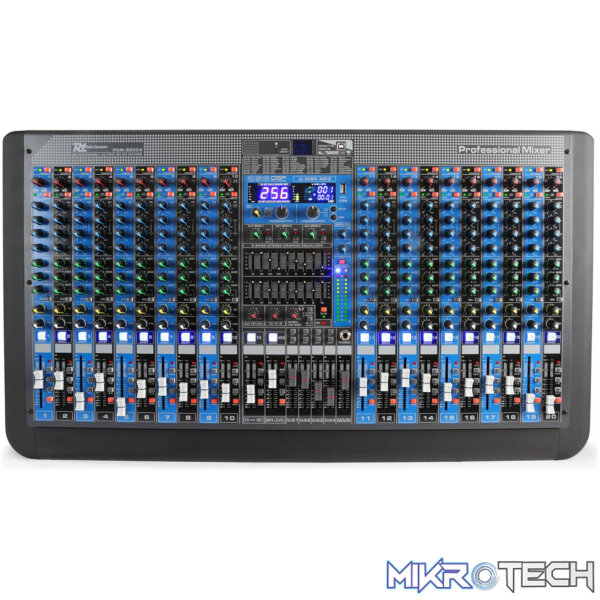

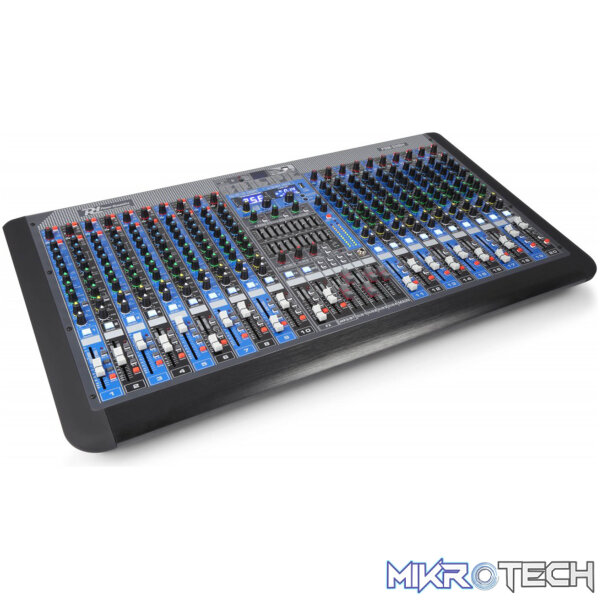

A 20 channel professional dual function mixer split in 10 channels per side. Perfect for use on live stage setups, houses of worship or other multi-input venues.

FEATURES:

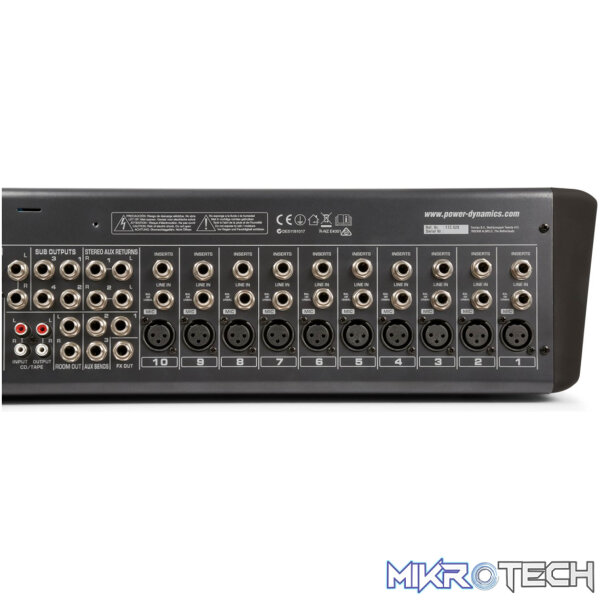

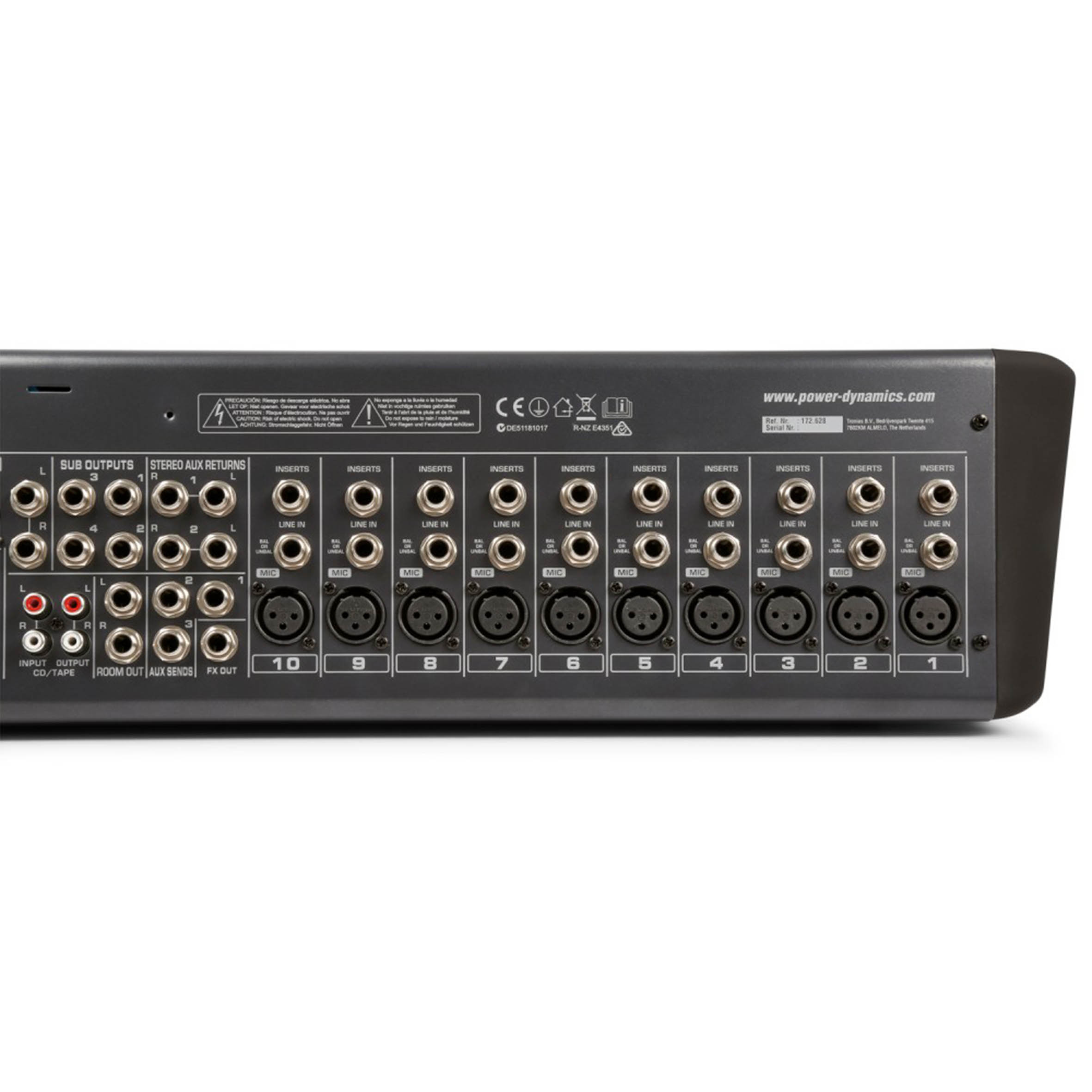

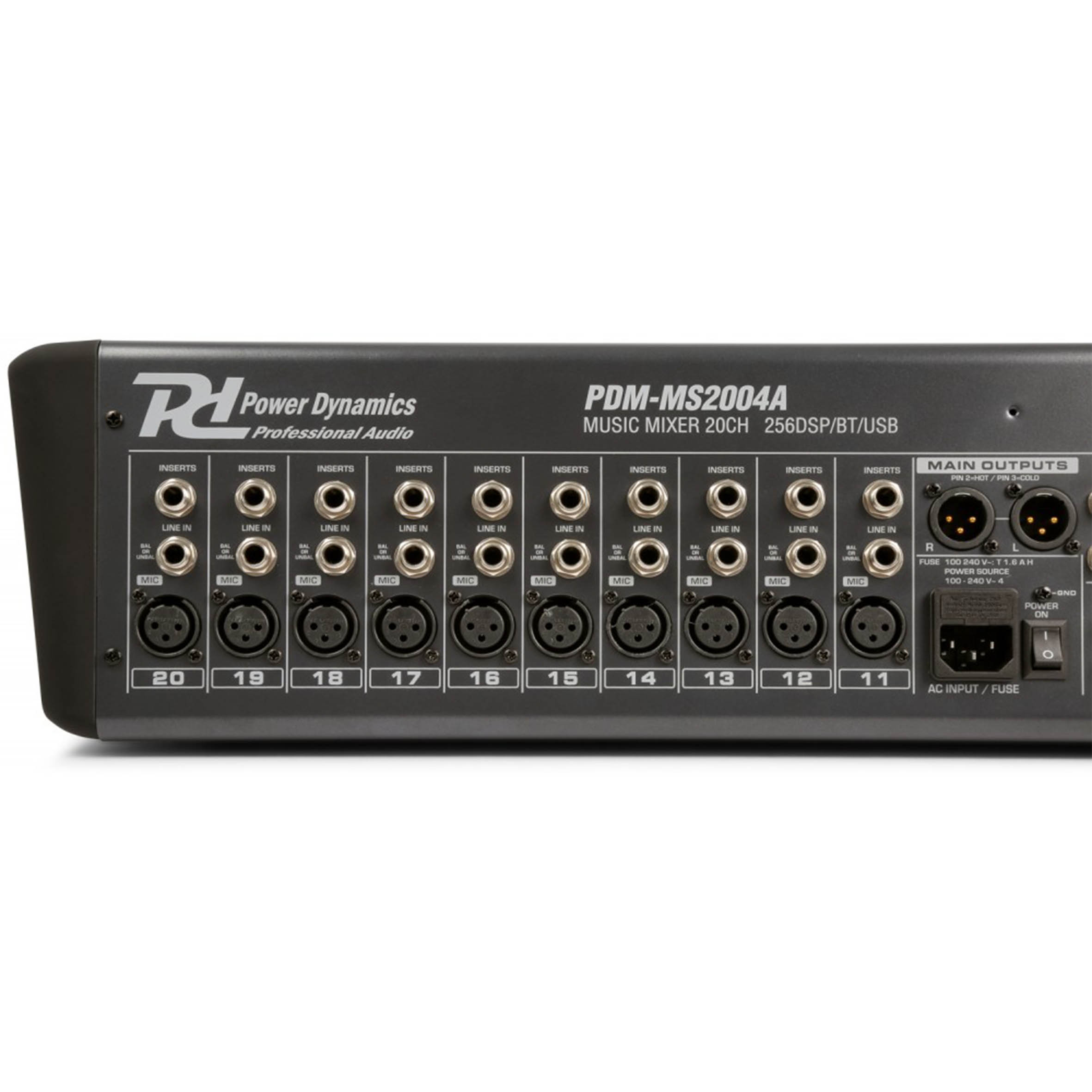

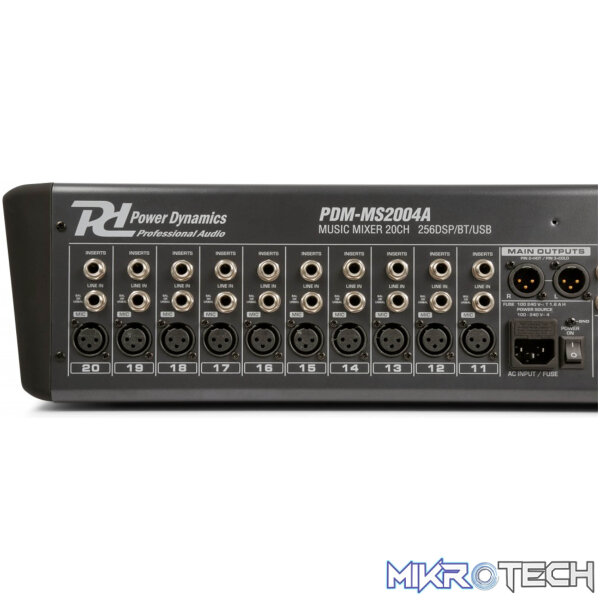

• 20 Mono microphone-/line inputs balanced (XLR + 6.3mm Jack)
• Built-in stereo USB/Audio Interface to connect directly to your computer
• +48V phantom power with individual preamp per channel
• 75Hz Low cut filter per channel

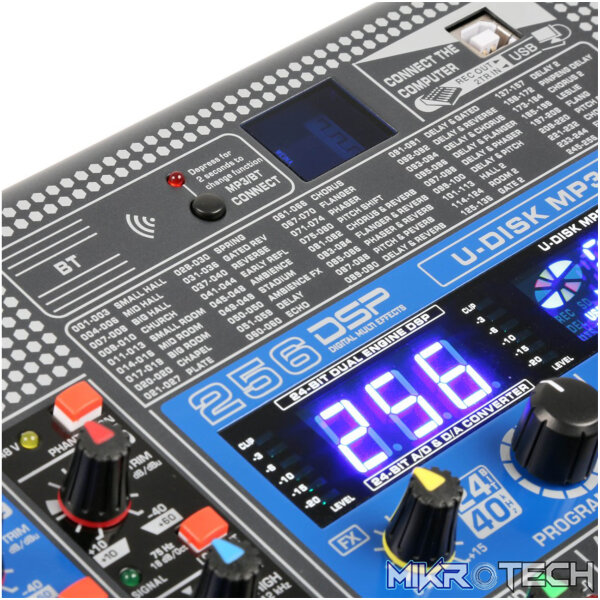

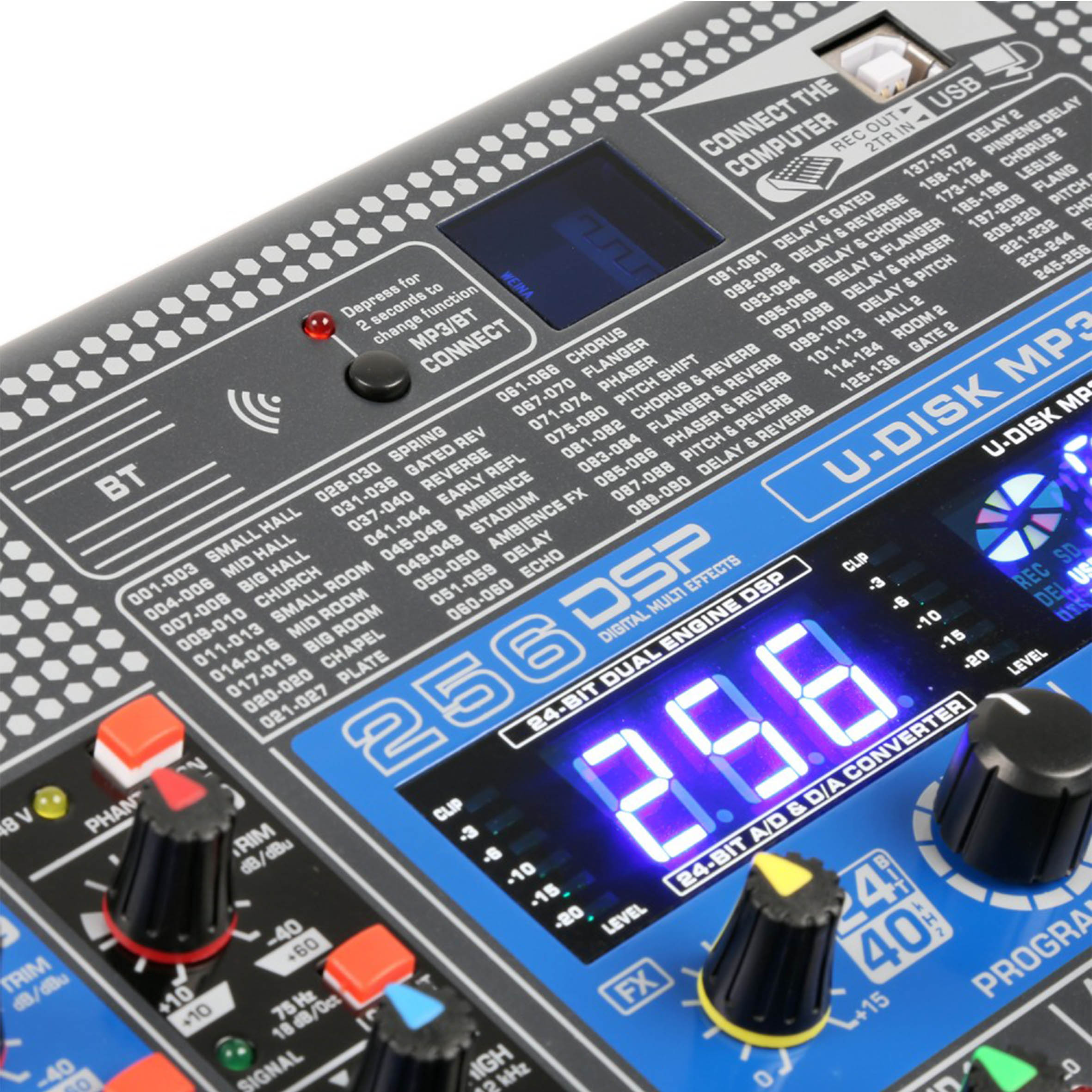

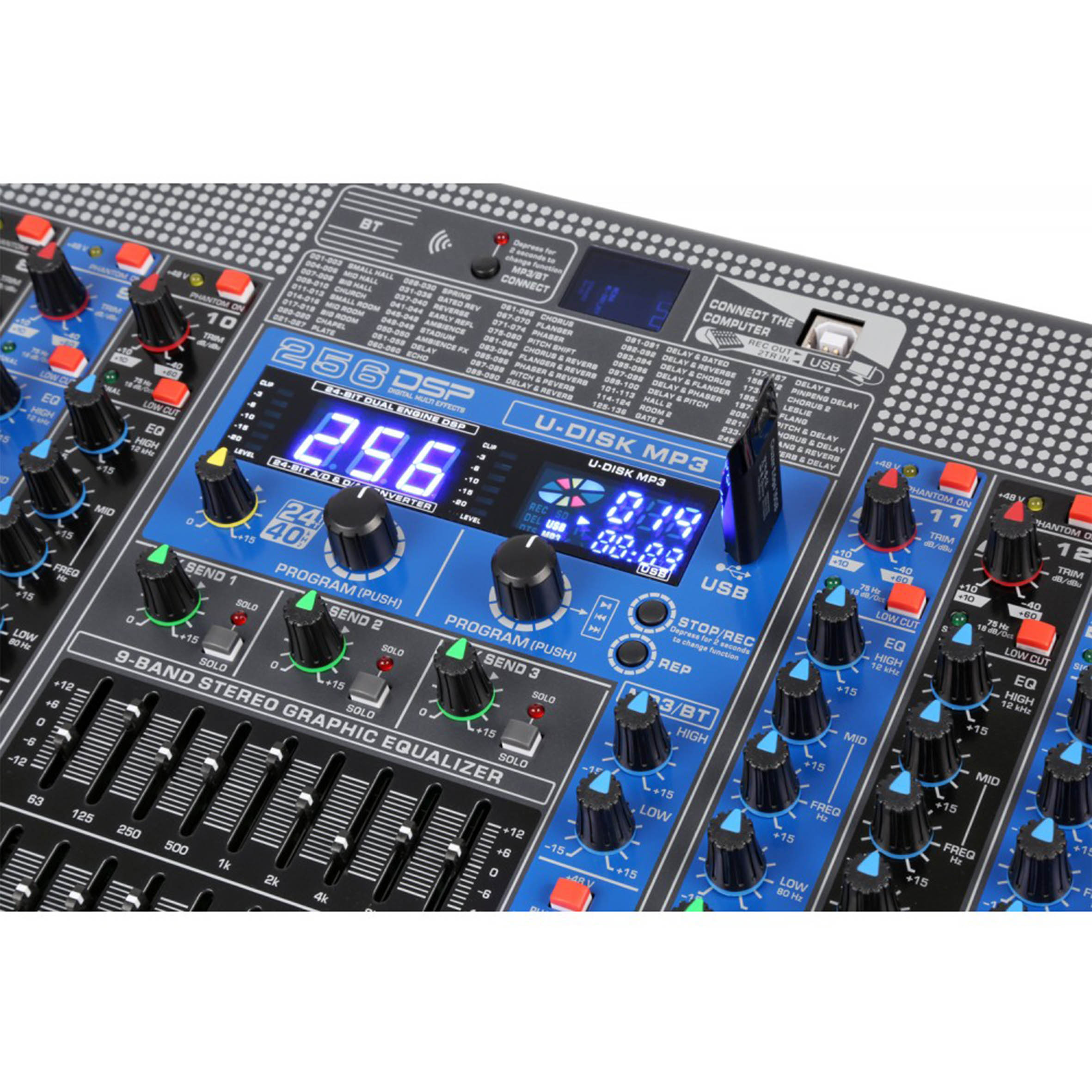

• Multi-FX processor with 256 presets

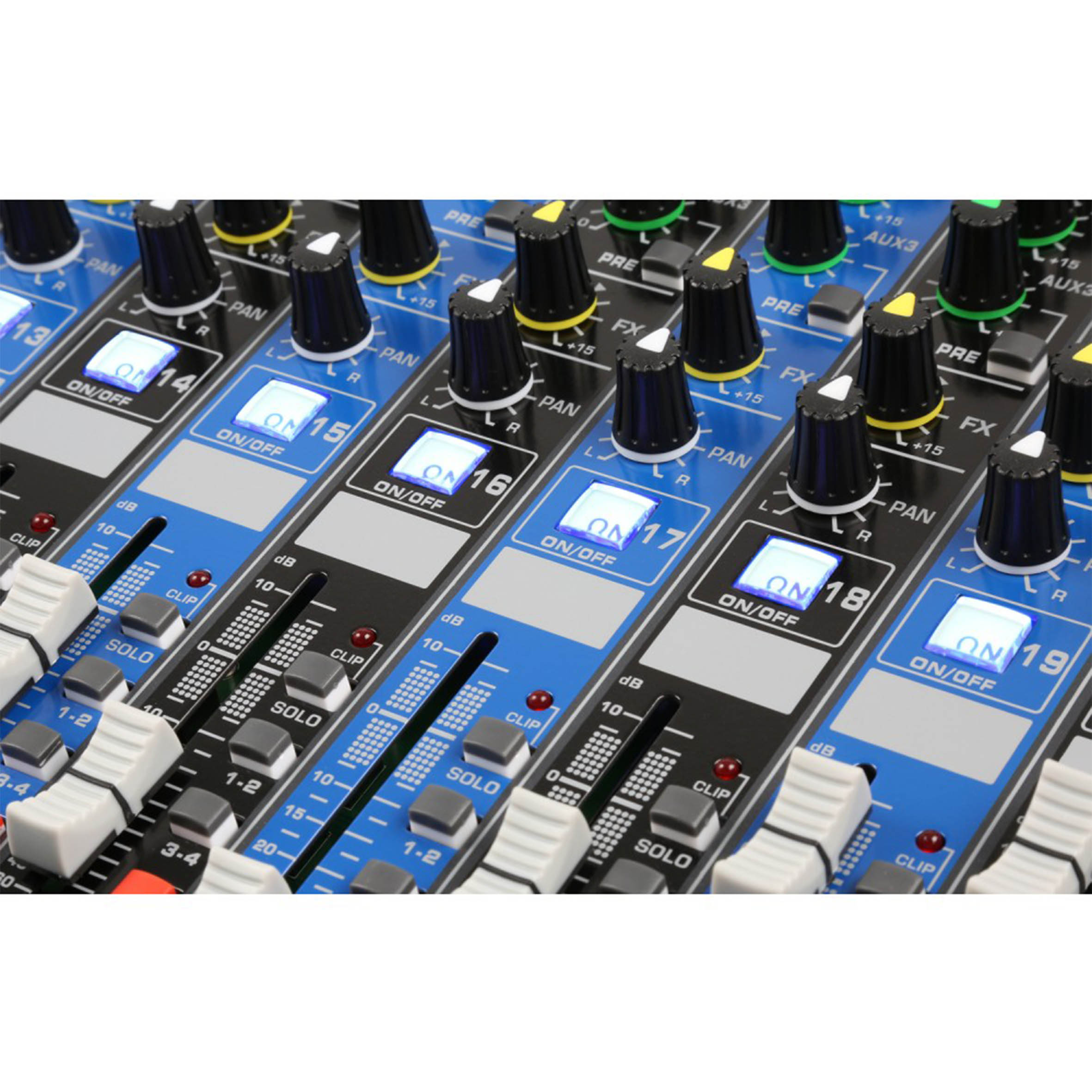

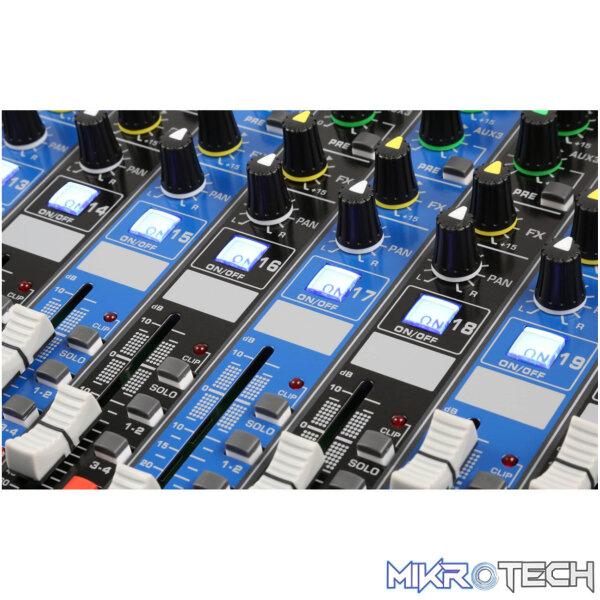

• Solo switch per channel (PFL)
• On/off switch per channel
• Hi, Mid and Low control for each channel
• Adjustable Mid frequency per channel
• 3 Aux sends per channel (1 pre-/2 post fader)
• Adjustable FX, Pan, Trim per channel

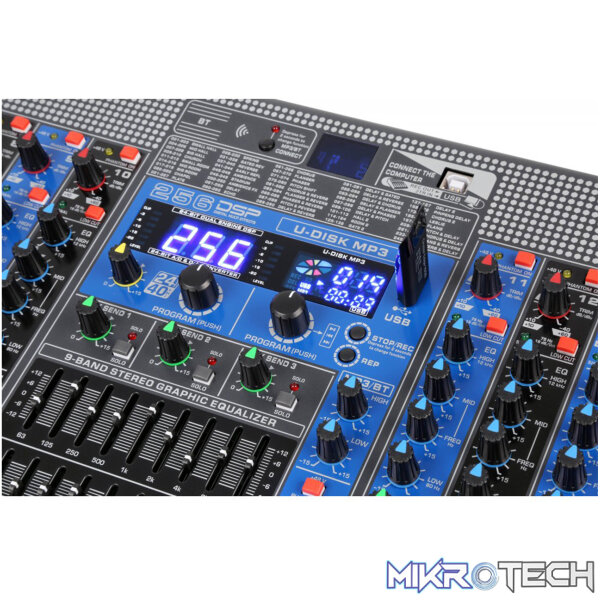

• Dual 9-band Equalizer
• Stereo main outputs balanced (XLR + 6.3mm Jack)
• 4 Assignable Subgroup outputs (6.3mm Jack)
• Separate control room, headphones and stereo rec outputs
• Built-in USB player with digital display
• BT-receiver for audio streaming
• LED VU meter and Peak LED’s

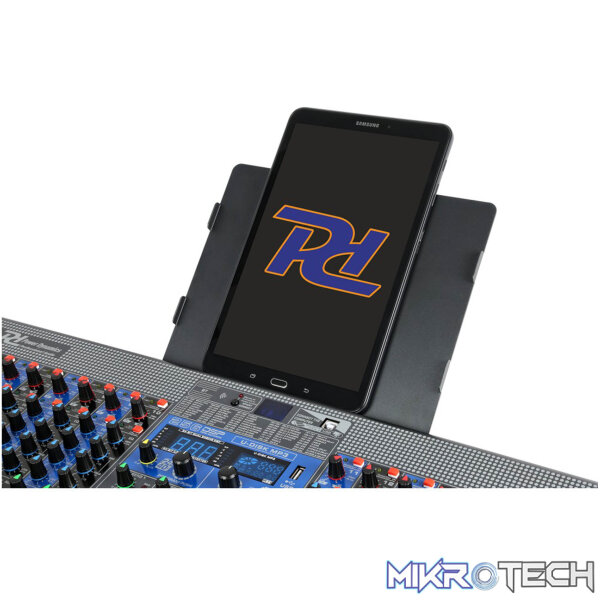

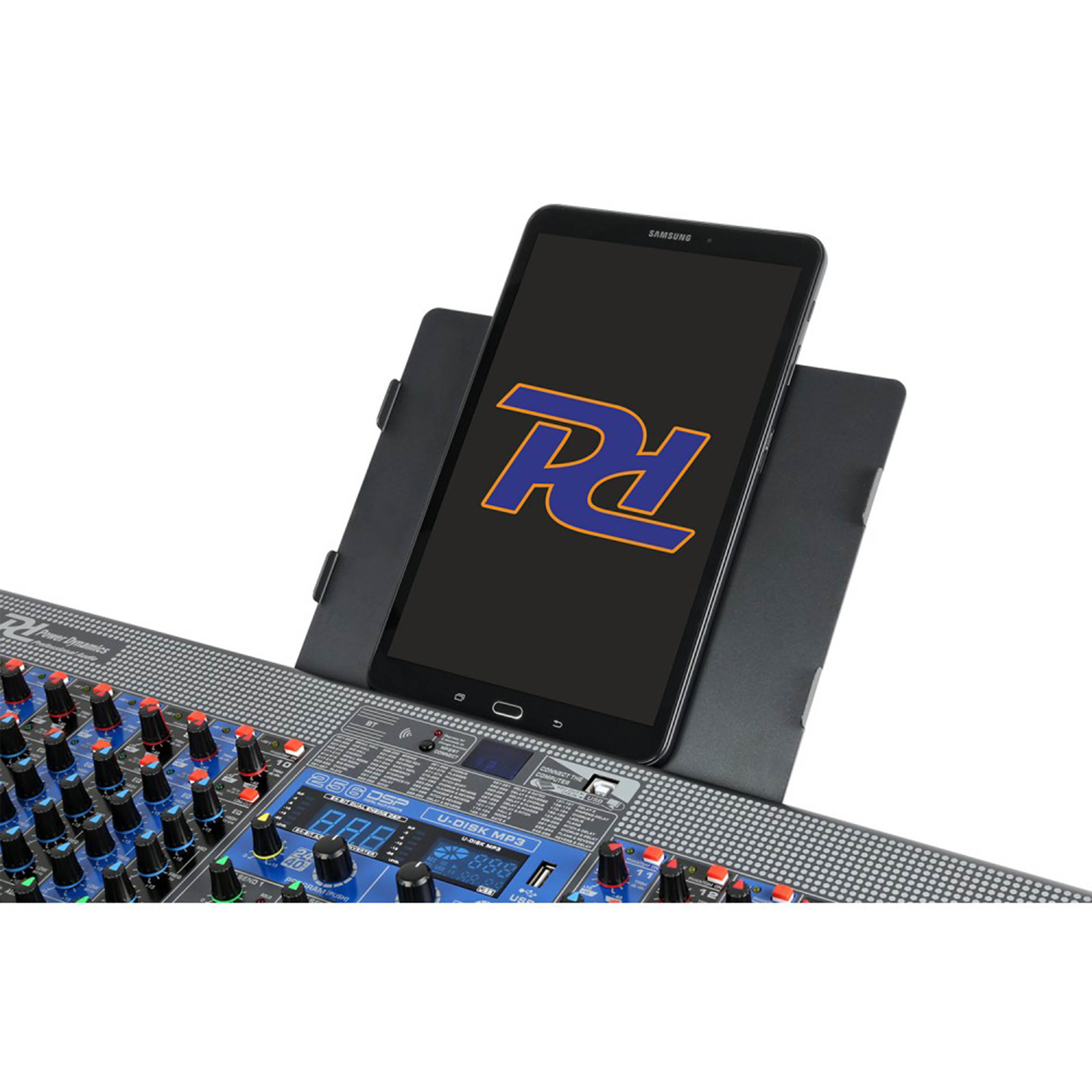

• Supplied with telephone holder

SPECIFICATIONS:

• Frequency response:
  10Hz -45kHz (±3dB)
•
  THD:
  <0.01%
• DSP Resolution:
  24-bit
• Type of effects:
  Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
• Presets:
  256
• Signal to noise ratio:
  >112dB
•
  Output level:
  +/- 1V
•
  Input:
  Line +/- 150mV
•
  Input:
  Mic +/- 1.5mV
•
  Power supply:
  100-240VAC / 50-60Hz
•
  Dimensions:
  450 x 775 x 145mm
•
  Weight:
  11.1kg
