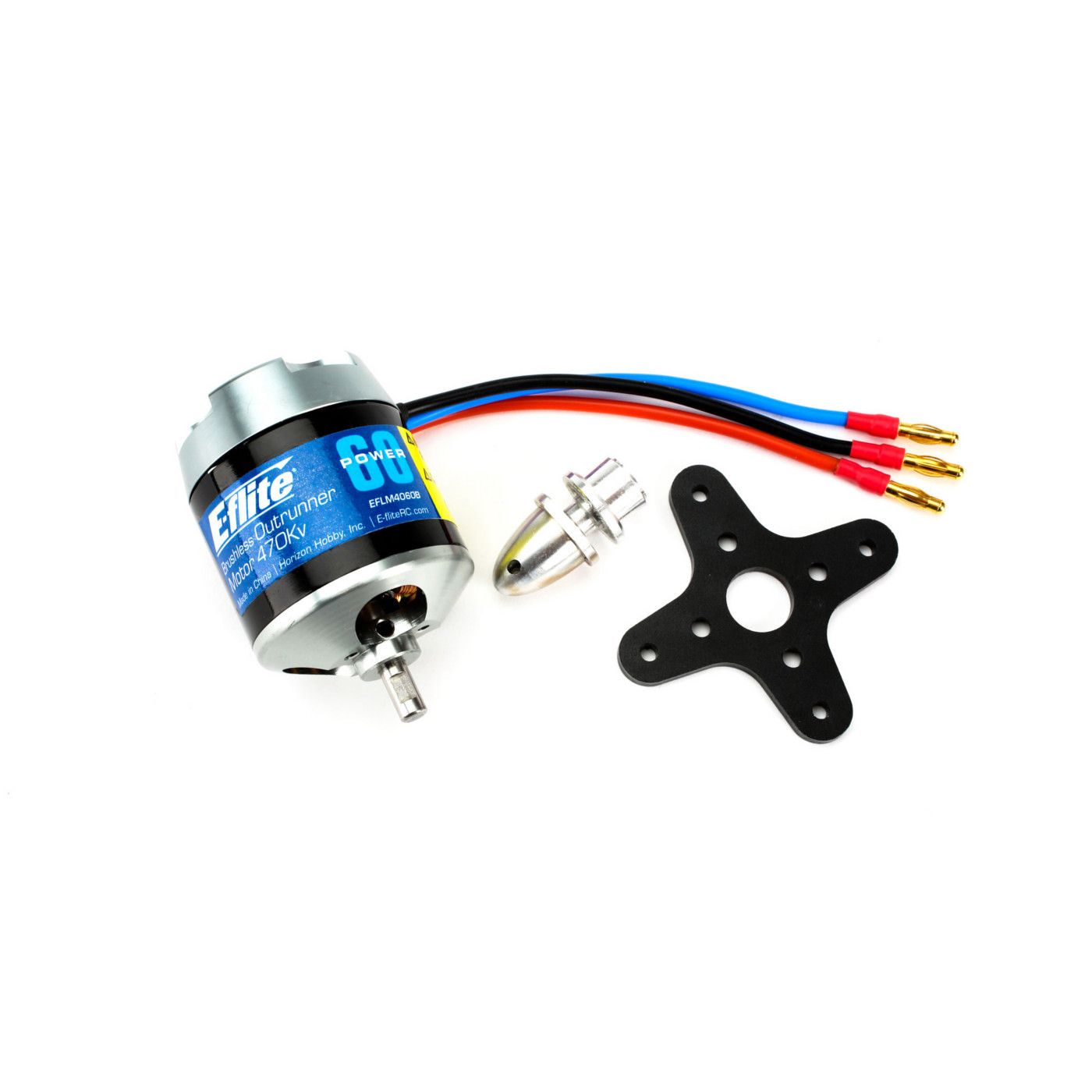

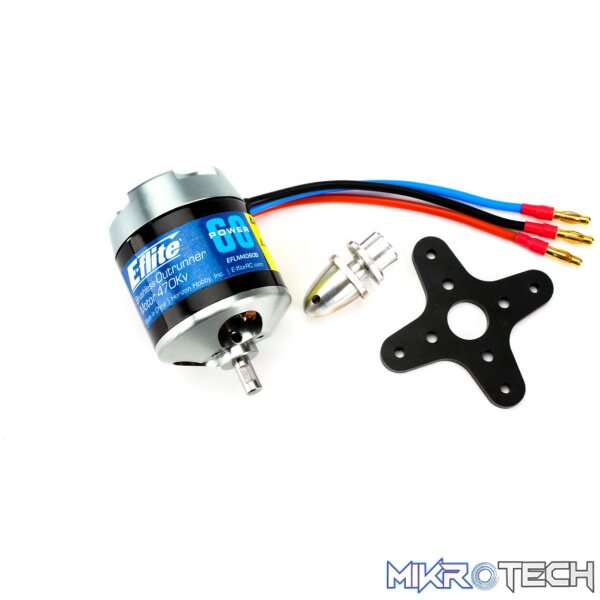

Power 60 Brushless Outrunner Motor 470Kv

The E-flite Power 60 Brushless Outrunner Motor (470 Kv) delivers the performance of a 60-size glow engine, making it ideal for sport, scale, and 3D aircraft weighing 2.7–5.4 kg. With a high-torque, external-rotor design and quiet, efficient operation, it supports up to 1,800 W and excels on 6 S setups.

Features

• Perfect substitute for 60-size glow engines in 2.7–5.4 kg aircraft
• External rotor design for enhanced cooling and torque
• Includes mount, prop adapter, and hardware for secure installation
• Quiet, efficient operation with reliable performance

What’s Included

• Power 60 motor (470 Kv) with mounting hardware and prop adapter

Needed to Complete

• Brushless ESC (80 A recommended)
• 6 S LiPo battery (e.g., 4,400–5,000 mAh)
• Propeller (recommended: 15 × 8 to 17 × 7)

Specifications

• Type: Brushless outrunner
• Kv Rating: 470 Kv
• Voltage: 22.2 V (6 S)
• Continuous Current: 65 A
• Burst Current (15 s): 80 A
• Idle Current (at 20 V): 2.1 A
• Resistance (Ri): 0.02 ?
• Recommended Prop Size: 15 × 8 to 17 × 7
• Wire Gauge: 14 AWG
• Overall Diameter: 50 mm
• Length: 62 mm
• Shaft Diameter: 6 mm
• Weight: 380 g
