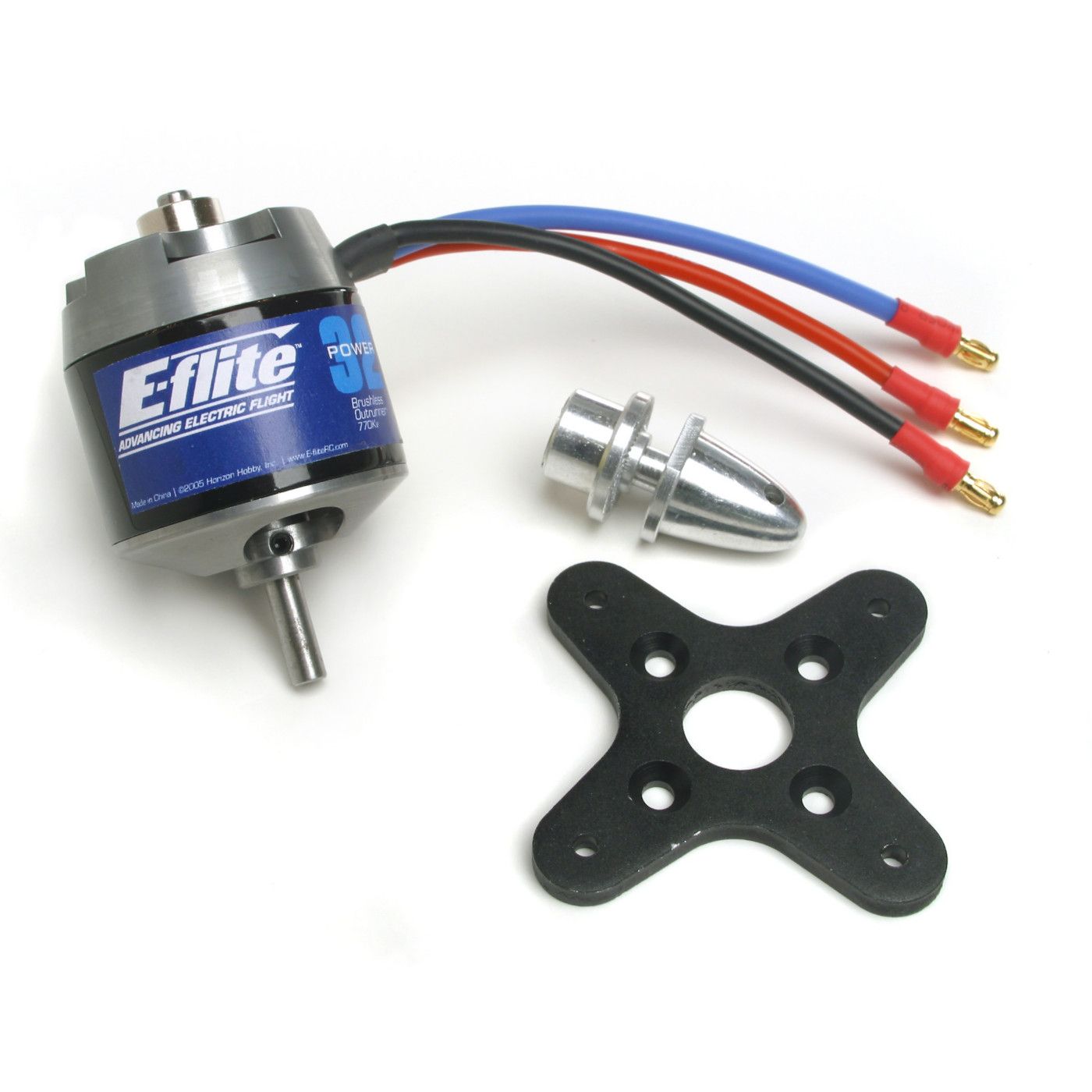

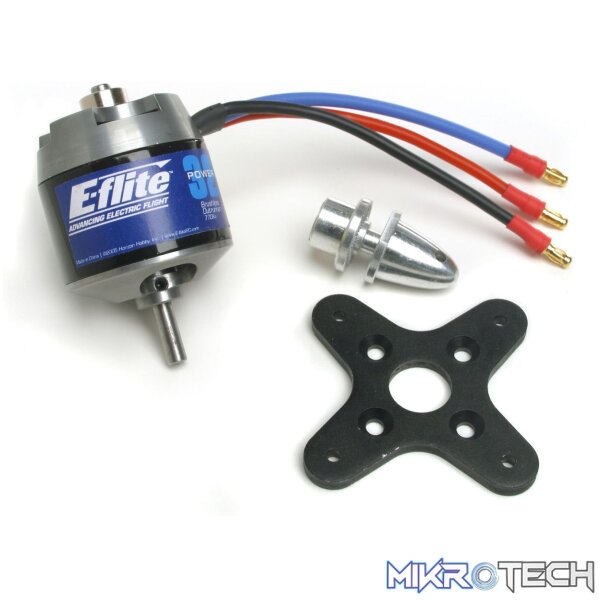

Power 32 Brushless Outrunner Motor 770Kv

The E-flite Power 32 (770 Kv) Brushless Outrunner Motor delivers clean and quiet power equivalent to a 30–36-size glow engine. Designed for sport, scale, and 3D airplanes, it’s ideal for models weighing 1.6–2.7 kg (up to ~2 kg for 3D flight), and supports up to 800 W of input power.

Features

• Equivalent to a 30–36-size glow engine (1.6–2.7 kg airplanes); excellent for 3D models up to ~2 kg
• Supports up to 800 W input power
• High-torque external rotor design with easily reversible 5 mm shaft
• Includes motor mount, prop adapter, and hardware
• Durable construction with ball bearings and hardened steel shaft
• Quiet, lightweight operation
• Slotted 14-pole outrunner rotor for efficient torque delivery

What’s Included

• Power 32 motor (770 Kv) with mounting hardware and prop adapter

Needed to Complete

• 60 A brushless ESC
• 3–5 S LiPo or 10–16 cell NiMH/NiCd battery
• Propeller 11 × 7 to 14 × 10 (10 × 10E tested on 5S in Sundowner 36)

Specifications

• Kv Rating: 770 Kv
• Voltage Range: 12–16.8 V (3–4S LiPo)
• No-Load Current: 2.4 A @ 10 V
• Internal Resistance: 0.02 ?
• Continuous Current: 42 A
• Max Burst Current: 60 A (15–30 s)
• Recommended Prop Size: 11 × 7 to 14 × 10
• Outer Diameter: 42 mm
• Shaft Diameter: 5 mm
• Wire Gauge: 14 AWG
• Weight: ~200 g
