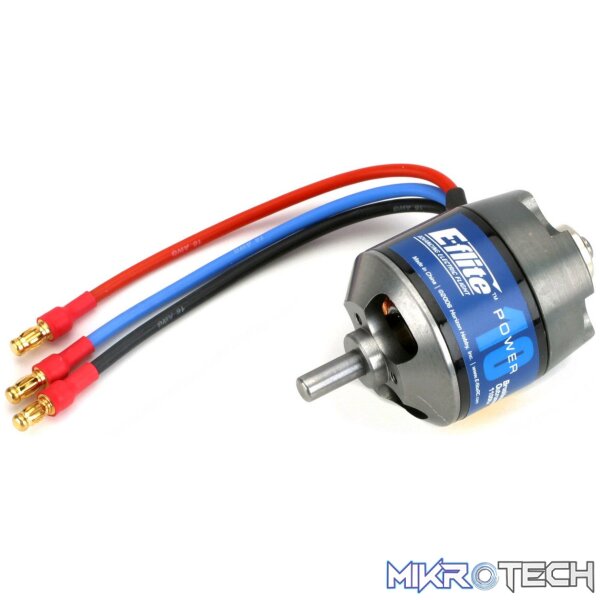

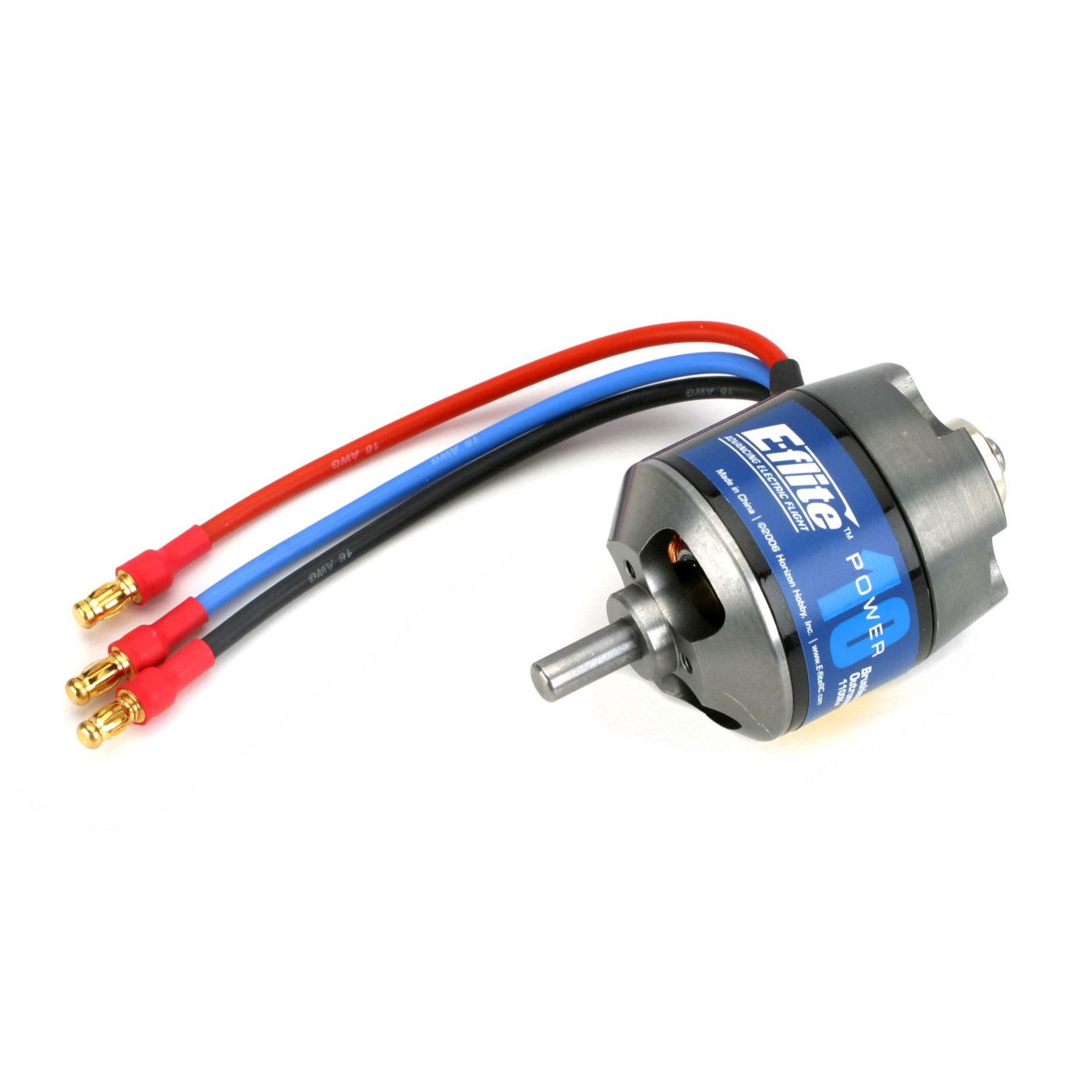

Power 10 Brushless Outrunner Motor 1100Kv

The E-flite Power 10 (1 100 Kv) Brushless Outrunner Motor delivers the power of a 10-size glow engine—ideal for sport, scale, or 3D airplanes weighing approximately 0.91–1.36 kg (32–48 oz), offering up to 450 W of clean and quiet performance.

Features

• Equivalent to a 10-size glow engine for 0.91–1.36 kg airplanes
• Suitable for 3D airplanes up to 1.02 kg (28–36 oz)
• Delivers up to 450 W of power
• High-torque, direct-drive outrunner design
• Includes mount, prop adapters, and mounting hardware
• External rotor with 5 mm reversible shaft
• Slotted 14-pole design for smooth torque
• Durable construction with ball bearings and hardened steel shaft
• Quiet, lightweight operation

What’s Included

• Power 10 motor (1 100 Kv)
• Mount, prop adapters, and mounting hardware

Needed to Complete

• 40 A ESC
• 2S–3S LiPo or 6–10-cell NiMH/NiCd battery
• Propeller: 10 × 5 to 12 × 6

Specifications

• Type: Brushless outrunner
• Kv Rating: 1 100 Kv
• Voltage: 7.2–12 V (2S–3S LiPo)
• No-Load Current: 2.10 A @ 10 V
• Internal Resistance: 0.043 ?
• Continuous Current: 32 A
• Peak Burst Current: 42 A (15 s max)
• Weight: 122 g
• Diameter: 35 mm; Length: 43 mm
• Shaft Diameter: 5 mm
• Wire Gauge: 16 AWG
