Serial Interface

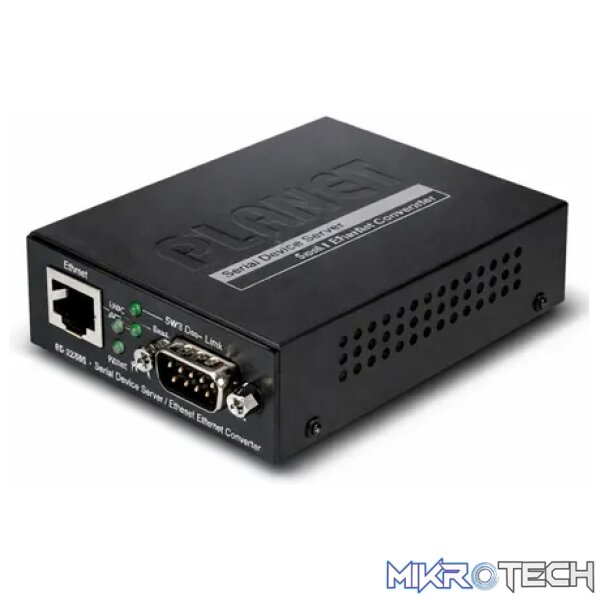

One RS-232 / 422 / 485 port to one 10/100Base-TX or 100Base-FX Media Converter
Cost-effective solution for RS-232 to Ethernet application
Supports RS-232, 4-wire RS-422 or 2/4-wire RS485 operation
Asynchronous serial data rates up to 921600b/s
Ethernet Interface
Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX standard
Supports auto MDI/MDI-X function on RJ-45 Port
Smart Functions
Standard TCP / IP interface and versatile operation modes
Software Protocol Support ARP, ICMP,TCP / IP, UDP, HTTP server, DHCP client, Telnet server/client
Built-in IP-base
Web interface for remote management
Serial operation mode selected via Web management
Pair connection mode for connecting two serial devices over a network
PLANET Smart Discovery utility automatically finds PLANET devices on the network
Firmware upgrade via HTTP protocol
Hardware
Compact size for easy Installation:
Standalone Wall mountable or DIN-rail mounting (optional accessory)
Co-work with PLANET MC family Media Chassis ( MC-700/1000R/1500)
LED indicators for easy network diagnose
Reset button on the front panel for reset to factory default
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 20 × 20 cm |
