Name: Planet IP30 Slim Type 8-Port Industrial Fast Ethernet Switch (-40 to 75 Degree C) - Networking - MikroTech
SKU: ISW-801T
Price: 1979.46 ZAR
Availability: OutOfStock

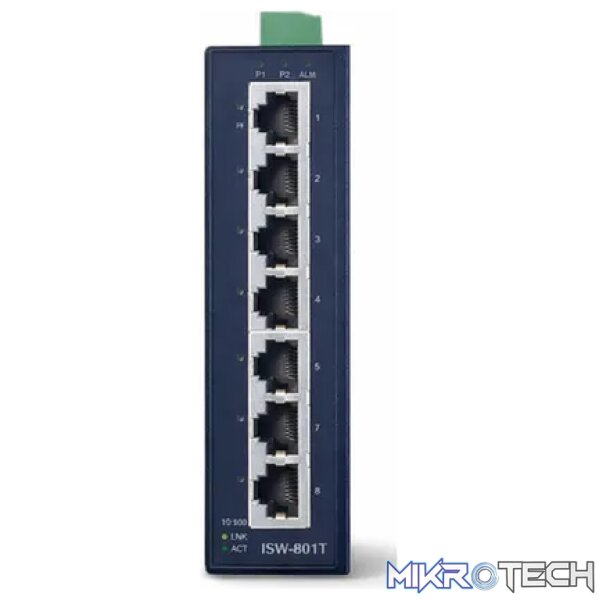

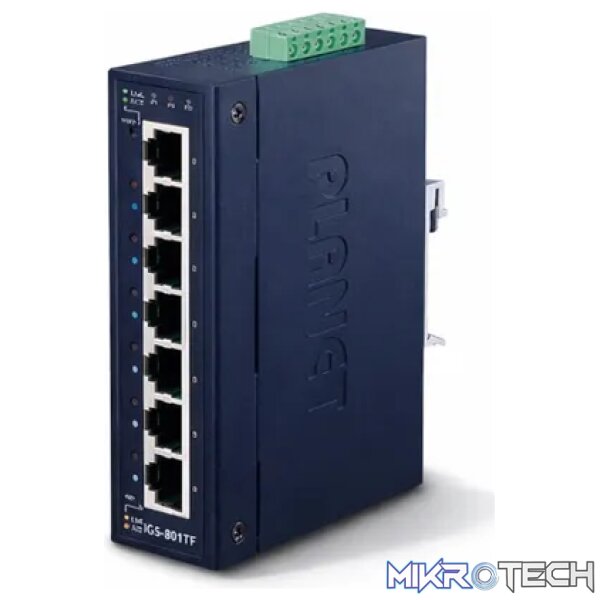

Planet IP30 Slim Type 8-Port Industrial Fast Ethernet Switch (-40 to 75 Degree C) – Networking

R1,979.46 incl. VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

By ticking this box you agree to an account being created using the given email address and to receive waitlist communications by email

Enter your email address to join the waitlist for this product

Product ID: 1381269 Category: Uncategorized

Share This Product On:

Facebook X LinkedIn Reddit Pinterest WhatsApp Messenger Threads Telegram Bluesky Mastodon Tumblr Email

Hardware Specifications
10/100BASE-TX Auto MDI/MDIX Ports	8
LED Indicators	3 x LED for System and Power Green: DC Power 1 Green: DC Power 2 Green: Power Fault1x LED for each Copper Port Green: 10/100 LNK/ACT
Enclosure	IP30-rated metal case
Dimensions (W x D x H)	135 x 87 x 32 mm
Weight	428g
ESD Protection	6KV DC
EFT Protection	6KV DC
Power Requirements	12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/Dissipation	2.1 watts/7.1BTU
Installation	DIN rail kit and wall-mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Switch Specifications
Switch Processing Scheme	Store-and-Forward
Address Table	1K
Buffer Memory	Embedded 448K bits packet buffer
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1.6Gbps
Throughput (packet per second)	1.19Mpps
Network Cables	10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC60068-2-32 (free fall) IEC60068-2-27 (shock-proof) IEC60068-2-6 (vibration-proof)

Weight	1 kg
Dimensions	15 × 20 × 15 cm
