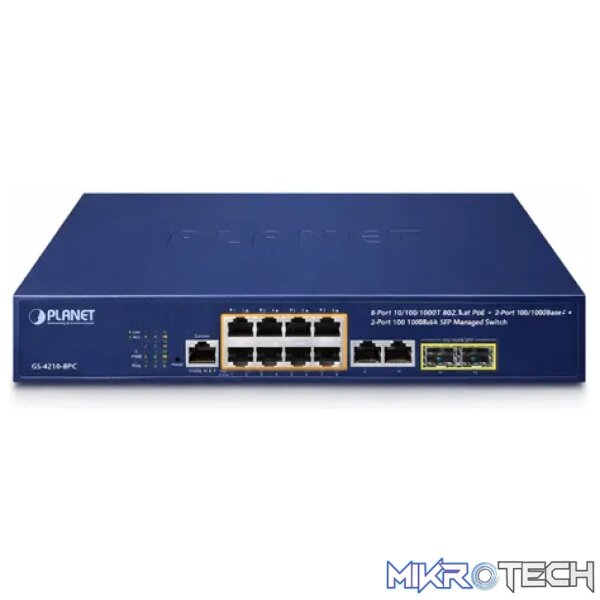

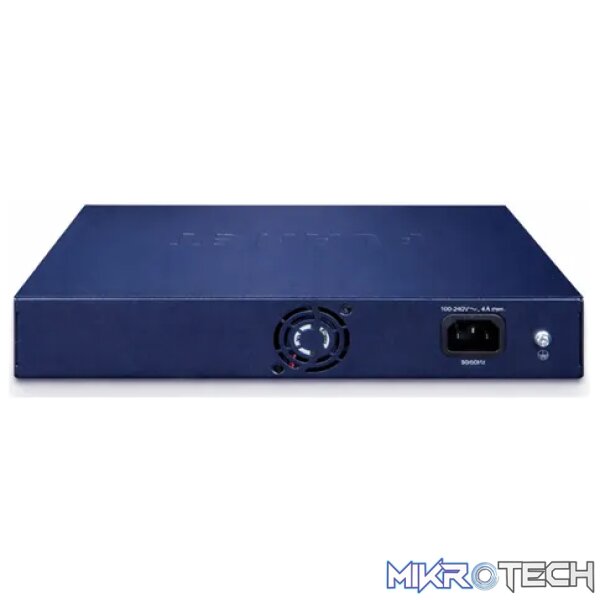

Planet 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch – Networking

8 Port POE Managed Switch

Physical Port

• 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at/af PoE Injector (Port-1 to Port-8)
• 2 100/1000BASE-X mini-GBIC/SFP ports
• RJ45 console interface for switch basic management and setup

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters in standard mode and 250m in extend mode
• PoE management

Per port PoE function enable/disable

PoE port power feeding priority

Per PoE port power allocation

PD classification detection

PD alive check

PoE schedule

Layer 2 Features

• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Supports VLAN

IEEE 802.1Q tagged VLAN

Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)

Protocol VLAN

Voice VLAN

Private VLAN (Protected port)

Management VLAN

GVRP

• Supports Spanning Tree Protocol

STP (Spanning Tree Protocol)

RSTP (Rapid Spanning Tree Protocol)

MSTP (Multiple Spanning Tree Protocol)

STP BPDU Guard, BPDU Filtering and BPDU Forwarding

• Supports Link Aggregation

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

Cisco ether-channel (static trunk)

Maximum 1 trunk group, up to 2 ports per trunk group

• Provides port mirror (many-to-1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)

Quality of Service

• Ingress/Egress Rate Limit per port bandwidth control
• Storm Control support

Broadcast/Unknown-Unicast/Unknown-Multicast

• Traffic classification

IEEE 802.1p CoS

TOS/DSCP/IP Precedence of IPv4/IPv6 packets

• Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

• Supports IPv4 IGMP snooping v2 and v3
• Supports IPv6 MLD snooping v1, v2
• IGMP querier mode support
• IGMP snooping port filtering
• MLD snooping port filtering

Security

• Authentication

IEEE 802.1X Port-based network access authentication

Built-in RADIUS client to co-operate with the RADIUS servers

RADIUS/TACACS+ login user access authentication

• Access Control List

IPv4/IPv6 IP-based ACL/ACE

MAC-based ACL/ACE

• MAC Security

Static MAC

MAC Filtering

• Port Security for Source MAC address entries filtering
• DHCP Snooping to filter distrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• DoS Attack Prevention

Management

• IPv4 and IPv6 dual stack management
• Switch Management Interface

Web switch management

Console/Telnet Command Line Interface

SNMP v1 and v2c switch management

SSHv2, TLSv1.2 and SNMP v3 secure access

• User Privilege Levels Control
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance

Firmware upload/download via HTTP/TFTP

Configuration upload/download via HTTP/TFTP

Dual Images

Hardware reset button for system reboot or reset to factory default

• SNTP Network Time Protocol
• Cable Diagnostics
• Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
• SNMP trap for interface Link Up and Link Down notification
• Event message logging to remote Syslog server
• Four RMON groups (history, statistics, alarms, and events)
• PLANET NMS System and Smart Discovery Utility for deployment management
