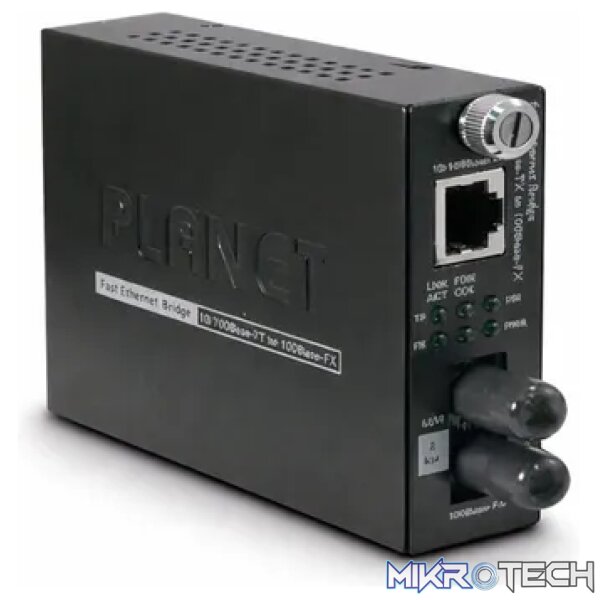

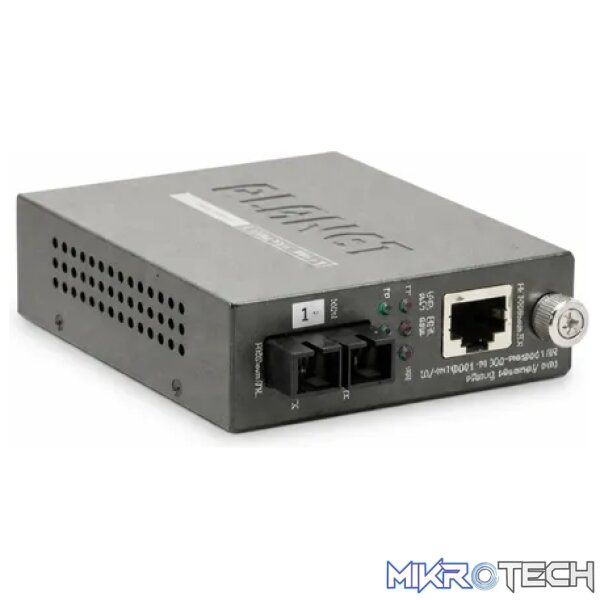

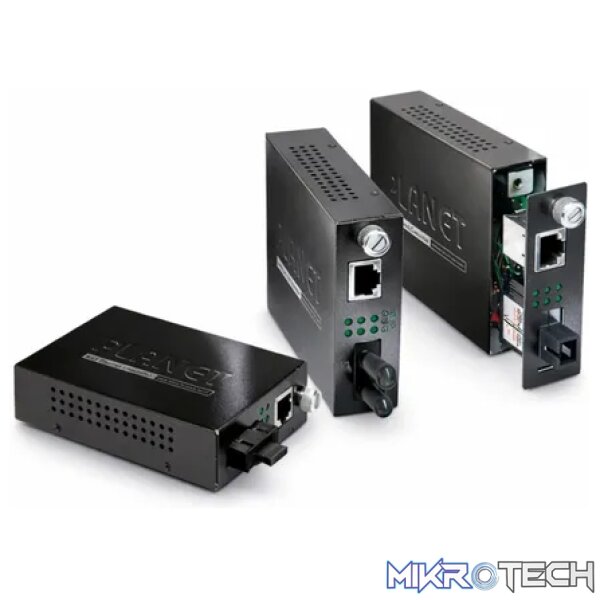

Product Description
| Hardware Specification | |
| Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX and 100BASE-FX | |
| Copper Port | 1 x 10/100BASE-TX port, auto-negotiation, |
| auto-MDI-MDI-X | |
| Optical Port | 1 x 100BASE-FX |
| Fiber Connector | FST-802S35: SC / Single Mode 35km |
| Optical Wavelength | FST-802S35: 1310nm |
| Maximum Launch Power (dBm) | FST-802S35:-8 |
| Minimum Launch Power (dBm) | FST-802S35: -15 |
| Receive Sensitivity (dBm) | FST-802S35:-34 |
| Maximum Input Power (dBm) | FST-802S35:0 |
| Speed | Ethernet: 10/20Mbps for half / full-duplex |
| Fast Ethernet: 100/200Mbps for half / full-duplex | |
| Maximum Forward Packet Size | 1600Bytes |
| DIP Switch | DIP-1: Fiber full / half duplex mode |
| DIP-2: Copper forced mode / auto-negotiation mode | |
| DIP-3: Copper speed 10Mbps / 100Mbps | |
| DIP-4: Copper full / half duplex mode | |
| DIP-5: Fiber LLR (Link Loss Return) enable / disable | |
| DIP-6: Fiber LLCF(Link Loss Carry Forward) enable / disable | |
| LED Indicator | System: PWR |
| TP: LNK/ ACT, FDX/ COL, 100 | |
| FX: LNK/ ACT, FDX/ COL | |
| Power Input | DC 5V, 2A |
| Power Consumption | 6.2 watts/ 21 BTU (maximum) |
| Dimensions (W x D x H) | 94 x 81 x 26 mm |
| Weight | 0.22kg |
| Cable | 10BASE-T: 2-pair Cat3, 4, 5 UTP cable, up to 100 meters |
| 100BASE-TX: 2-pair Cat5 UTP cable, up to 100 meters | |
| 100BASE-FX: | |
| -50/ 125um or 62.5/ 125um multi-mode fiber cable, up to 2km | |
| 9/ 125um single-mode cable, providing long distance of 15/20/35/50/60km | |
| Operating Environment | 0~50 degrees C, 5~90% RH |
| Storage Environment | -10~70 degrees C, 5~90% RH |
| Emission | FCC Class B, CE mark |
| Weight | 1 kg |
|---|---|
| Dimensions | 10 × 20 × 20 cm |
