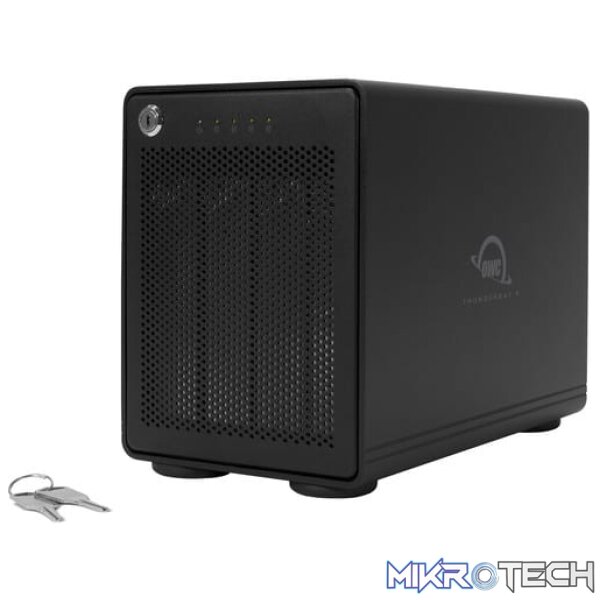

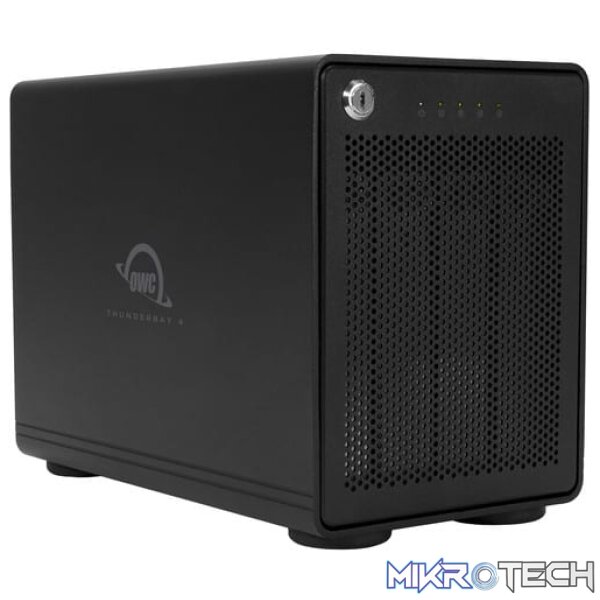

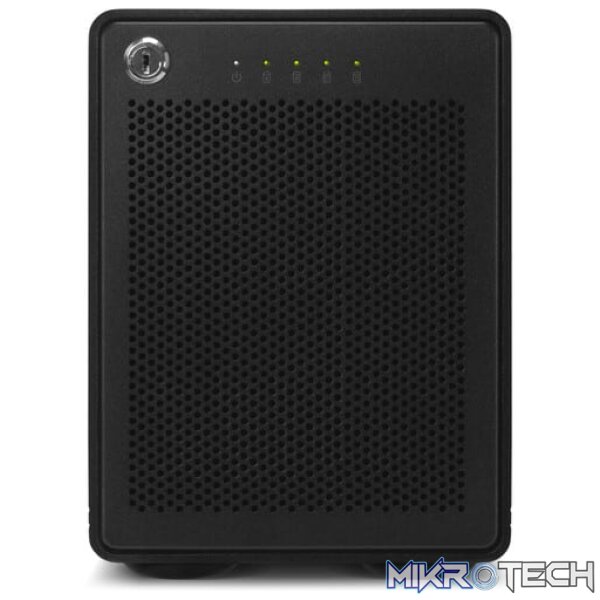

Add RAID 0 storage to your Mac or Windows computer with the ThunderBay 4 4-Bay Thunderbolt 3 RAID 0 Enclosure from OWC / Other World Computing. As you can guess from its name, the ThunderBay 4 features dual Thunderbolt 3 ports, which utilize the USB Type-C connector. There is also a DisplayPort 1.2 port for connecting to a 4K display. The ThunderBay 4 has four drive bays, which supports both 2.5″ and 3.5″ hard drives (2.5″ HDDs do not need adapters). With the included SoftRAID software you can format the ThunderBay 4 to RAID 1. RAID 4, 5, and 1+0 are also supported with a RAID software of your choice.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
RAID and JBOD Support
The ThunderBay 4 comes pre-configured in RAID 5, but also supports RAID 0, 1, 4, 5, and 1+0.
Time-Tested Cooling
Built on OWC’s time-tested enclosure cooling technology, the Thunderbay 4 utilizes an open “flow-thru” vented design with an over-sized 92mm, low turbulence, noise-quieting fan to keep the drives running cool and reliably
Multi-Drive
Daisy-chain up to six ThunderBay 4s for more storage capabilities and increased performance, or connect multiple ThunderBay 4s to multiple Thunderbolt 3 ports to achieve higher speed capabilities.
Vibration Dampened
The ThunderBay 4’s drive isolating design reduces sonic resonance adn is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
DisplayPort 1.2 Support
Dual Thunderbolt ports let you connect the display of your choice that your computer can support, including 4K displays.
OWC Thunderbolt Cable
The ThunderBay 4 comes with a 6.6′ (2m) certified OWC Thunderbolt 3 cable.
FEATURES

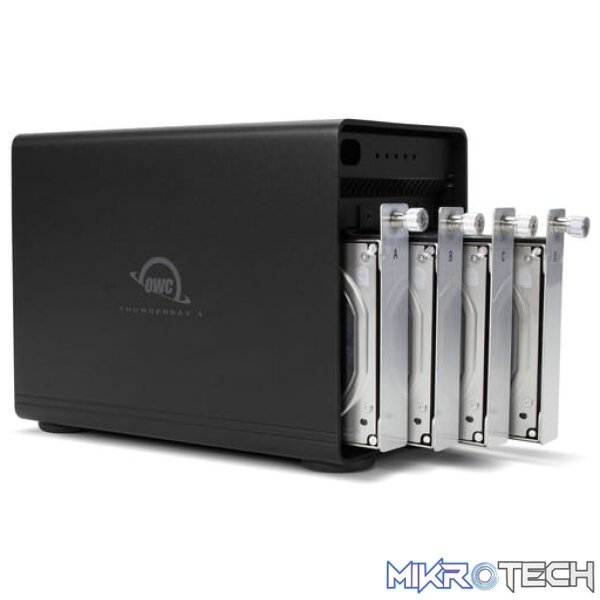

- 4 x 3.5″ SATA III 6 Gb/s Drive Bays
- Thunderbolt 3 (USB Type-C) Interface
- Supports RAID 0, 1, 4, 5, and 1+0
- Pre-Configured in RAID 5
| Weight | 5.10 kg |
|---|---|
| Dimensions | 34 × 23 × 28 cm |
| Software Requirements | macOS 10.12 or later Windows 10 or later |
| Hardware Requirements | Mac or PC featuring Thunderbolt 3 interface Mac or PC featuring Thunderbolt or Thunderbolt 2 interface |
| Interface (Chipset) | (2) Thunderbolt 3 (Intel DSL6540) (1) DisplayPort |
| Max Transfer Rate | Thunderbolt 3: 40 Gb/s (5000 MB/s) |
| JBOD / RAID Support | JBOD: Utilize each of the four drives independently RAID: Use the included SoftRAID software RAID to setup the ThunderBay 4 for RAID 0, 1, 4, 5, and 10 |
| Drives Supported | (4) 3.5″ SATA 6Gb/s drives or (4) 2.5″ SATA 6Gb/s drives SATA revision 3.0 (6Gb/s) compliant Compatible with SATA revisions 2.0 (3Gb/s) and 1.0 (1.5Gb/s) |
| Kensington Lock Slot | Yes |
| LED | Yes (Power and disk activity) |
| Plug and Play | Yes |
| Power | Power Supply AC input: 100 – 230V |
| Environment | Environmental (Operating) Temperature (°F) 50° – 95° Temperature (°C) 10° – 35° Environmental (Non-Operating) Temperature (°F) -40° – 149° Temperature (°C) -40° – 65° |
| Dimensions | Height: 7.0 in (177 mm) Width: 5.3 in (135 mm) Length: 9.6 in (245 mm) |
| Weight | 3.9 kg (8.6 lbs) |
