OWC 14 Port Thunderbolt3 Dock Space Grey
R3,849.99 incl. VAT
The OWC Thunderbolt 3 Dock delivers convenience with 14 ports, while keeping desktops clutter-free. Portable devices connect to the front and static devices connect to the rear. This dock charges your notebook and mobile devices.
Out of stock

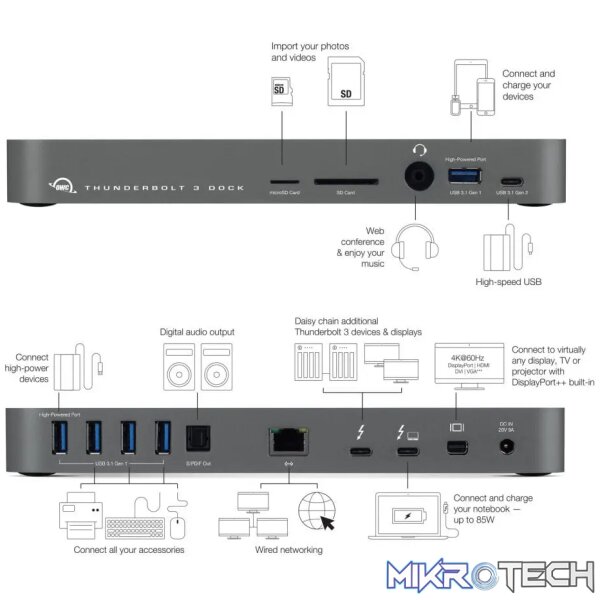

The OWC 14 Port Thunderbolt 3 Dock is equipped with 14 various ports to reduce reconnecting devices when moving to and from your desk. The dock’s front is designed for the easy connection of your portable devices, headphones and media cards. The front of the dock features a multitude of ports for your static devices. The OWC Thunderbolt 3 Dock provides 85W of power to your computer via the Thunderbolt 3 connection and has multiple, high-power USB3.1 ports to charge your mobile devices.
OWC’s Dock Ejector software safely disconnects all connected drives in a single click, protecting against data loss. Its Thunderbolt 3 ports provide peripheral power and support up to six devices per port.
Features:
- Thunderbolt Certified for Windows and Mac
- Thunderbolt 3 transfer speeds of up to 40Gb/s
- 14 various connectivity ports for portable and static devices
- Charge your notebook and mobile devices
- Connect two 4K displays or one 5K display
- Thunderbolt daisy-chaining supported
Specifications:
- Front interfaces:
- microSD 4.0 media card reader
- SD 4.0 media card reader
- Hybrid 3.5 mm headphone / mic jack
- USB 3.1 Gen 2 Type-C port – power delivery 5V up to 3A (15W)
- USB 3.1 Gen 1 Type-A port – compliant with Battery Charging 1.2 spec
- Back interfaces:
- Thunderbolt 3 (USB Type-C) dedicated power delivery port supporting up to 85W
- Thunderbolt 3 (USB Type-C) port
- Mini DisplayPort 1.2 (supports DP++)
- 4x USB 3.1 Gen 1 Type-A ports – with one port compliant with Battery Charging 1.2 spec
- Gigabit Ethernet port
- S/PDIF digital audio output port
- Dimensions: 23 x 8.9 x 2.5Â cm
- Â Weight: 544g
- Power: External UL-listed universal auto-switching
- AC input: 100 ~ 240V, 50/60Hz
- DC output: 20V, 9A
What’s In The Box:
- OWC Thunderbolt 3 Dock – Space Grey x1
- Thunderbolt 3 cable x1
- External power supply and cable x1
| Weight | 1.44 kg |
|---|---|
| Dimensions | 31 × 9 × 13 cm |
| Software Requirements | OS macOS 10.12 or later Windows 10 or later Driver High-power USB support is required for compatibility with the Apple SuperDrive and Apple USB keyboard, and is required to enable high-speed charging for Apple iPads, iPhones and other higher-power capable devices. To enable high-power USB support, an easy software update is required, including restart following this installation. |
| Hardware Requirements | Any Thunderbolt 3 equipped computer |
| Bootability | Compatible with bootable USB devices in MacOS |
| Chipsets | Thunderbolt 3: Intel DSL6540 USB Type-A: Fresco Logic FL1100EX (x2) USB Type-C: ASMedia ASM1142 Ethernet: Intel i210 S/PDIF Audio: C Media CM6533 Headphone / Mic: C Media CM6533 SD 4.0: Genesys Logic GL3227 Mini DisplayPort DP++: Parade PS181 |
| Device Ports | (1) Thunderbolt 3 port (dedicated power delivery port) (1) Thunderbolt 3 port (for downstream devices) (1) mini DisplayPort 1.2 (supports DP++) (4) USB 3.1 Gen 1 Type-A ports (rear) – 1 compliant with Battery Charging 1.2 spec (1) USB 3.1 Gen 1 Type-A port (front) – compliant with Battery Charging 1.2 spec (1) USB 3.1 Gen 2 Type-C port (front) – power delivery 5V up to 3A (1) Gigabit Ethernet port (1) S/PDIF digital audio port (output only) (1) SD 4.0 media card reader (front) (1) Micro SD 4.0 media card reader (front) (1) Hybrid 3.5 mm headphone / mic jack |
| Media Card Support | SD, SDHC, and SDXC cards up to 2TB UHS-II speeds up to 312 MByte/s (HD312) |
| Display Support | Supports one 5K display @ 60Hz or two 4K via Thunderbolt 3 port and Mini DisplayPort. Dual displays require a native Thunderbolt 3 display or the appropriate Thunderbolt 3 adapter. Dual 4K setups will run at different refresh rates depending on which OS and connection types are being utilized. |
| Power | Can power / charge TB3 laptops up to 85W External UL-listed universal auto-switching power supply AC input: 100 ~ 240V, 50/60Hz DC output: 20V, 9A Adapter plugs for international use |
| Environmental (Operating Temperature) | (°F) 32° – 104° (°C) 0° – 40° |
| Environmental (Non-Operating Temperature) | (°F) -4° – 158° (°C) -20° – 70° |
| Dimensions | Height: 25 mm (1.0 in) Width: 230 mm (9.1 in) Length: 89 mm (3.5 in) |
| Weight | 522 g (18.4 oz) |
