Product Description

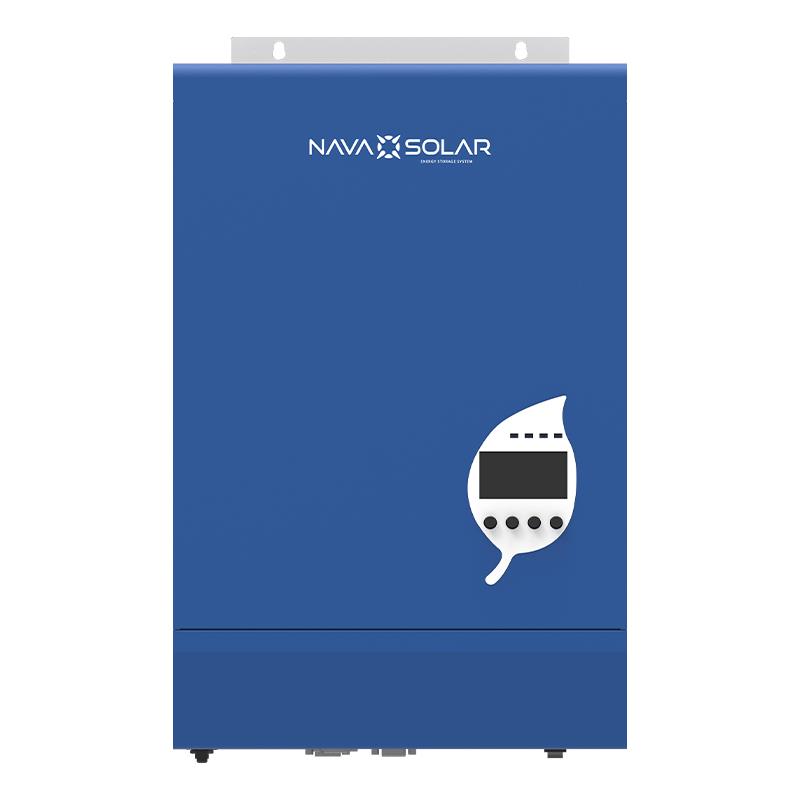

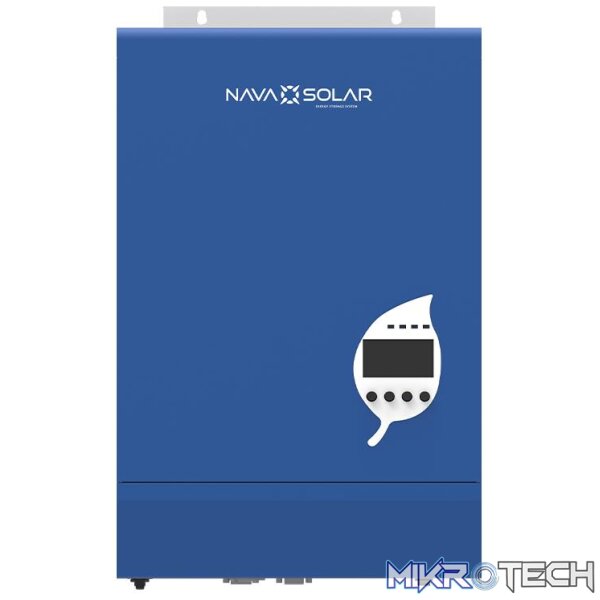

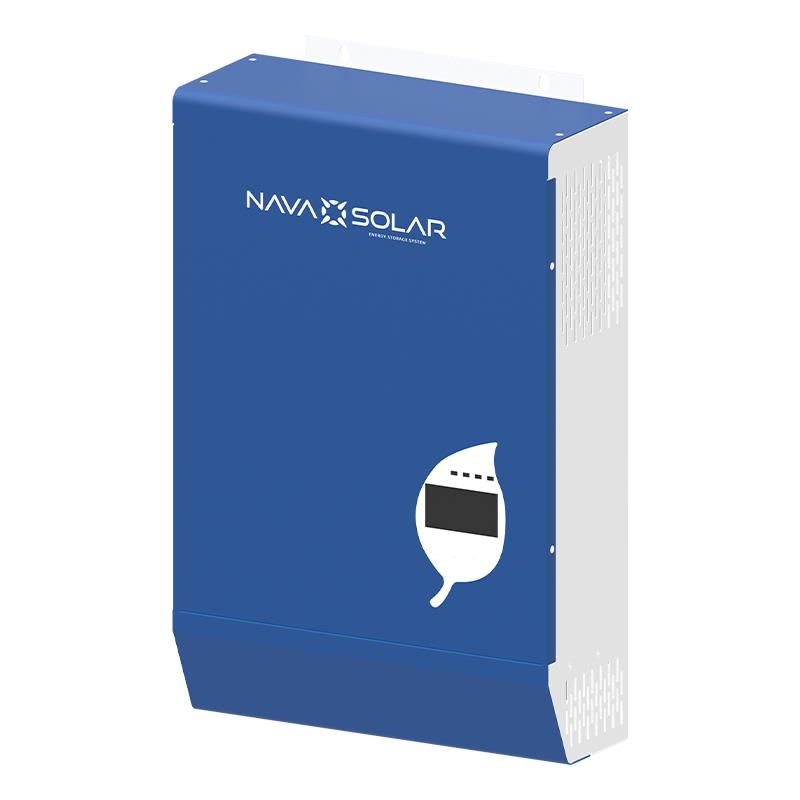

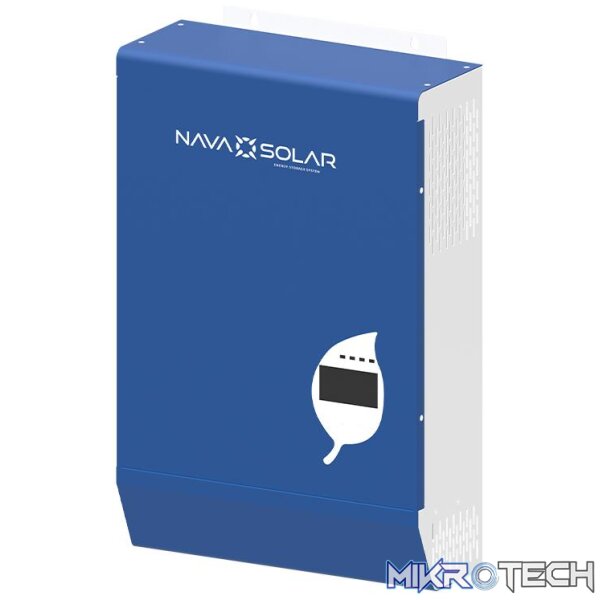

NavaSolar Off-grid Solar Inverter – X Series 24v
FEATURES:
- Pure sine wave solar inverter
- Output power factor up to 1.0
- Compatible to AC mains or generator inputs
- Considerable PV input types
- Build-in smart solar charger (PWM/MPPT)
- Battery independent design(5kW)
- Auto restart while AC is recovering
- Configurable AC/Solar input priority via LCD setting
- Selectable input voltage range for home appliances and personal computer loads
SPECIFICATIONS:
| Nominal Battery System Voltage | 24VDC |
| Parallel Capability | No |
| Operation Without Battery | No |
| INVERTER OUTPUT | |
| Rated Power | 3000W |
| Surge Power | 6000W |
| Wave Form | Pure Sine Wave |
| AC Voltage Regulation(Batt.Mode) | (220VAC~240VAC) ±5% |
| lnverter Efficiency(Peak) | 93.5% |
| Transfer Time | 10ms(typical) |
| AC INPUT | |
| Voltage | 208/220/230/240VAC |
| Selectable Voltage Range | 170~280Vac(for personal Computer) |
| 170~280Vac(for personal Computer) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| BATTERY | |
| Normal Voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 145VDC |
| PV Array Voltage Range | MPPT 30~115VDC |
| Maximum PV lnput Power | 1500W |
| Maximum Solar Charge Current | 60A |
| Maximum Efficiency | 98% |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 120A |
