Features:
Air Flow
PC-Q28 thermal solution, one 140mm fan in the front input cold air into the system,the 120mm fan on the top and the PSUÂ’s fan bring the hot air out.
New side panel installation design
Simple entry, just pushed up to release the side panel, and push down on the side panel for closing.
HDD / SSD Space
PC-Q28 can hold up to four 3.5? HDD and a 2.5? SSD in the HDD cage.The HDD cage can be remove for without tool. Drive rack in the bottom of the chassis, where you can mount two 3.5? drives. It also support two 2.5? drives or a 3.5? and a 2.5? drives. (The HDD height will affect the expansion card installation space)
Compatibility
- VGA Card length:290mm
- PSU Space:170mm
- CPU Cooler height:100mm
Dual LED Power Switch
(Blue LED for Power on / Purple LED for HDD reading)
Multi-media I/O ports
USB3.0 / HD Audio

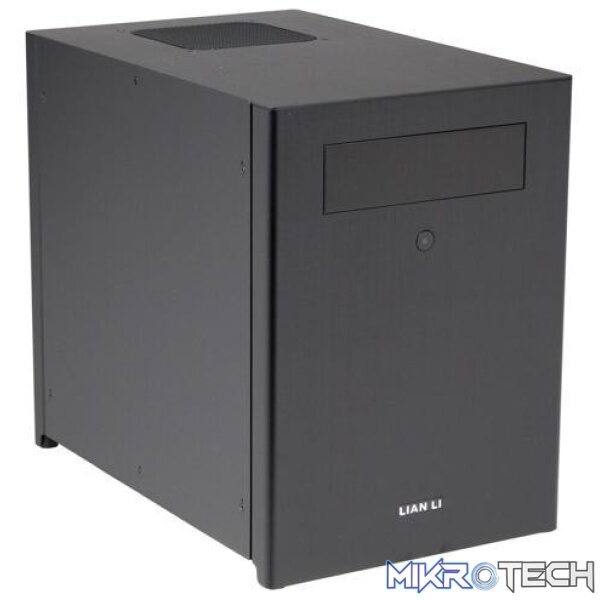

| Model | PC-Q28 |
|---|---|
| Case Type | Mini Tower Chassis |
| Dimensions | (W) 227mm (H) 305mm (D) 345mm |
| Color | Black |
| Front bezel Material | Aluminum |
| Side Panel | Aluminum |
| Body Material | Aluminum |
| Net Weight | 3.2 kg |
| 5.25" drive bay (External) | 1 |
| 3.5" drive bay (External) | None |
| HDD bay | 3.5-Inch HDD x4 / 2.5-Inch HDD x1 3.5-Inch HDD x2 or 2.5-Inch HDD x2 ( It depends on the type of card you use. ) |
| Expansion Slot | 2 |
| Motherboard | Mini-ITX Mini-DTX |
| System Fan (Front) | 140mm Fan x1 |
| System Fan (Top) | 120mm Fan x1 |
| I/O Ports | USB 3.0 x 2 / HD Audio |
| Maximum Compatibility | VGA Card length: 290mm PSU length: 170mm CPU cooler height: 100mm |
| PSU | ATX PSU (Optional) |
| Package Dimensions | (W)274mm (H)399mm (D) 359mm |
| Gross Weight | 3.7KG |
