Features:
Excellent cooling
PC-Q03 is designed to maximize the natural flow of air through vent holes located on the side and rear panels to cool components.
Removable HDDs Tray and slim ODD module
The removable HDDs tray supports two internal 2.5-inch HDDs with easy installation and services. When the HDD tray is removed, you can install one internal 3.5″ HDD. Slim ODD module is also included to support slim ODD or one of external 2.5-inch HDD with easy installation and services. The PC-Q03 also comes with a mounting bracket for Micro-ATX PSU.
Multi-media I/O Ports
The I/O panel allows easy access to two USB 3.0 port, Audio In & Out (supports HD Audio) jacks.
Tool-less Side Panel installation
There are a jointer for join the side panel to the chassis, for easy removement and attachment of the side panel.
Small but complete
The compact PC-Q03 offers enough space for all your must components with support for 160mm long PSU, 180mm long VGA card and 60mm high CPU cooler.

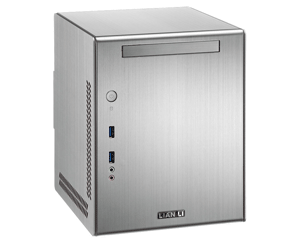

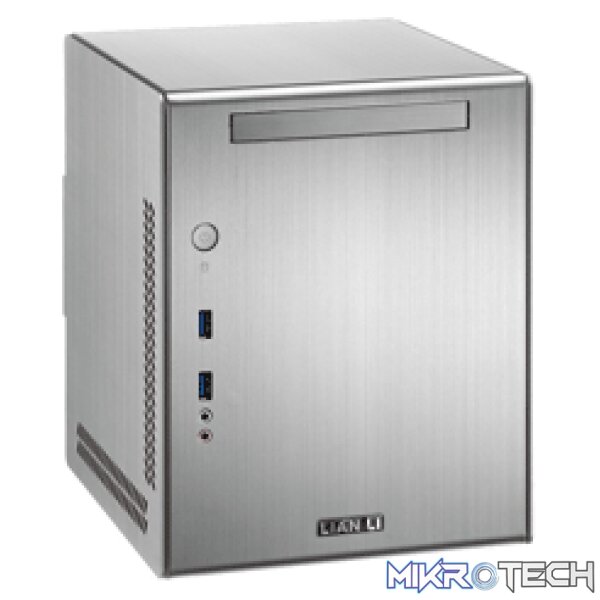

| Model | PC-Q03 |
|---|---|
| Case Type | Mini Tower Chassis |
| Dimensions | (W) 199mm x (H) 245mm x (D) 210mm |
| Front bezel Material | Aluminum |
| Color | Black / Silver |
| Side Panel | Aluminum |
| Body Material | Aluminum |
| Net Weight | 1.57KG |
| 5.25" drive bay (External) | 1( Slim ODD ) |
| 3.5" drive bay (External) | None |
| HDD bay | 3.5-Inch HDD x1 (Using 2.5-inch space)/ 2.5-Inch HDD x2 |
| Expansion Slot | 1 |
| Motherboard | Mini-ITX /Mini-DTX |
| System Fan (Front) | None |
| System Fan (Top) | None |
| System Fan (Rear) | None |
| I/O Ports | USB 3.0 x 2 / HD Audio |
| Package Dimensions | (W) 230mm x (H) 308mm x (D) 259mm |
| Power Supply | Standard ATX PS2 (Optional ) |
| VGA Card length | 180mm |
| PSU length | 160mm |
| CPU cooler height | 60mm |
