Product Specifications

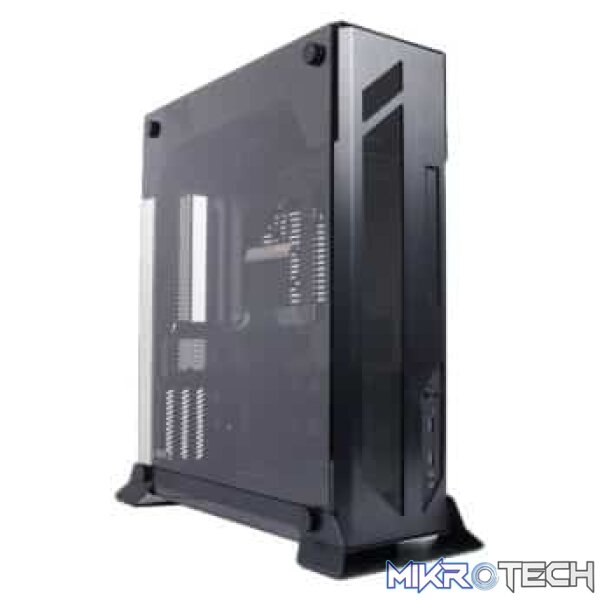

| Model | PC-O5S |
|---|---|
| Case Type | Mini Chassis |
| Dimensions | (W)384mm (H)465mm (D)148mm |
| Color | Black |
| Side Panel | Tempered Glass |
| Body Material | Aluminum |
| Net Weight | 6.4kg |
| 5.25" Drive Bays | 1 (Slim ODD) or 3.5″/2.5″ HDD x1 |
| Drive Bays | HDD Rack: 3.5″ x3 + 2.5″ x1 Behind the MB tray: 3.5″ x1 + 2.5″ x1 or 2.5″ x2 On the MB tray: 3.5″ x1 + 2.5″ x1 or 2.5″ x2 (Occupies PCI slot space) |
| Expansion Slot | 4 |
| PCI-E 16X Riser Cable | 1 (Gen 3.0) |
| M/B Type | mini-ITX |
| System Fan | Top:120mm fan x2 Rear:140mm fan x1(Optional) |
| I/O Ports | USB3.0 x 2 HD Audio |
| Maximum Compatibility | VGA length: 190mm (175mm when using a VGA card with a front-located power plug) PSU length: 140mm Cooler height: 85mm |
| Space of Radiator | (W)300mm (D)130mm (H)60mm |
