Overview:

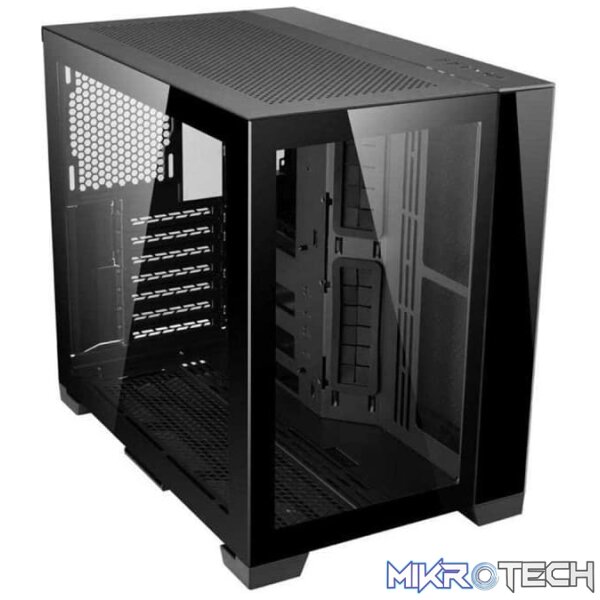

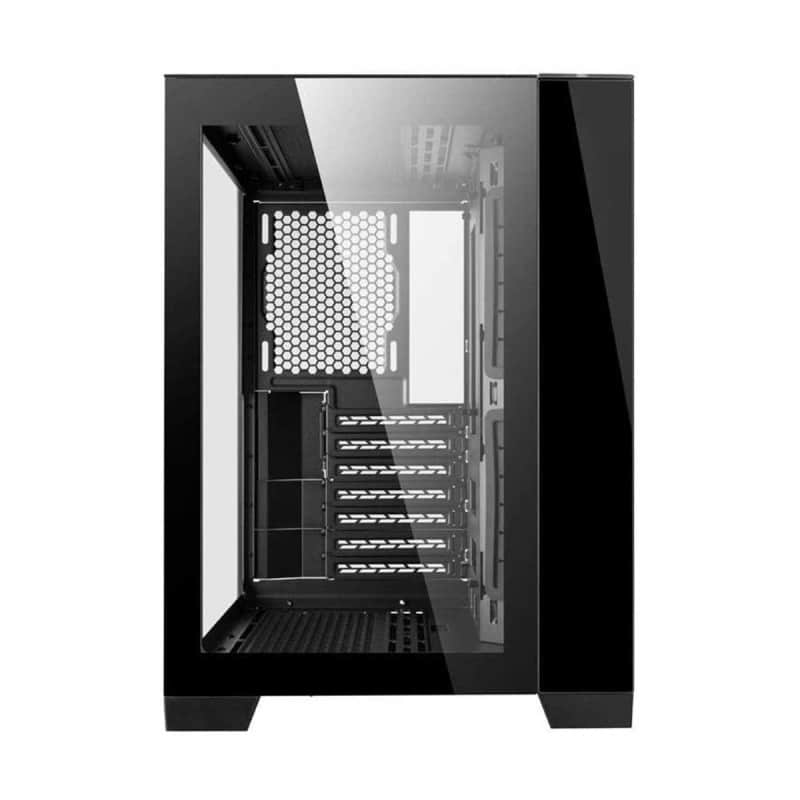

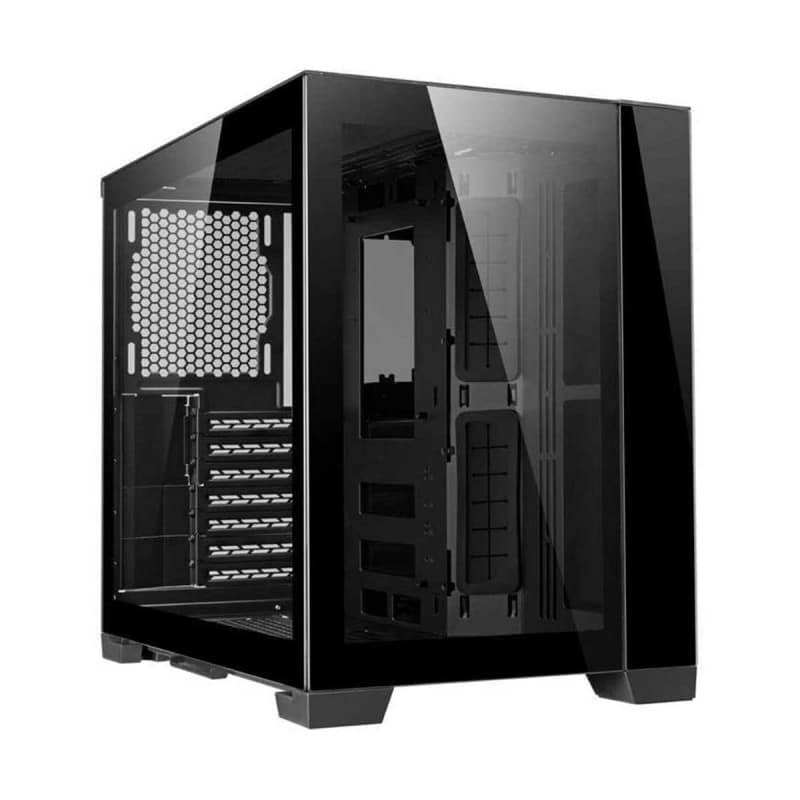

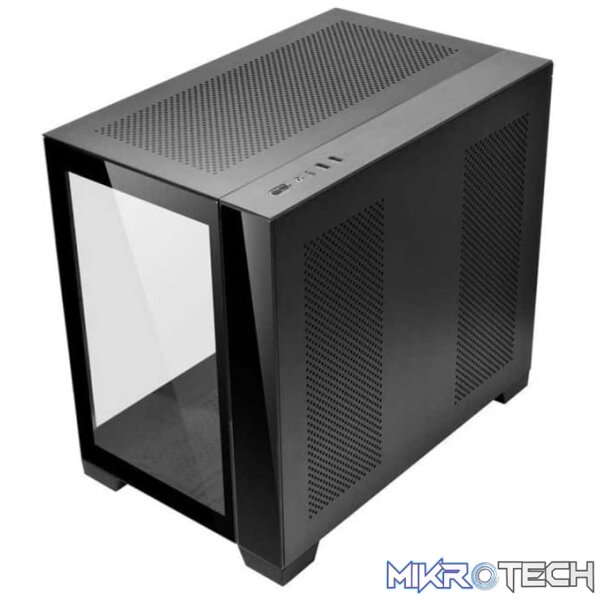

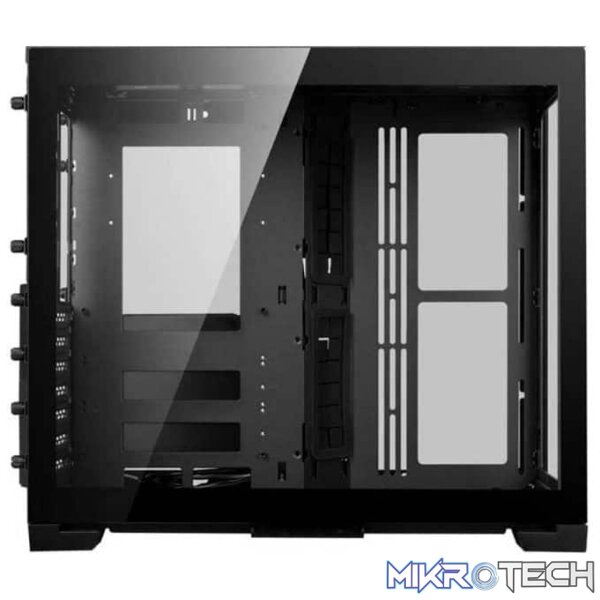

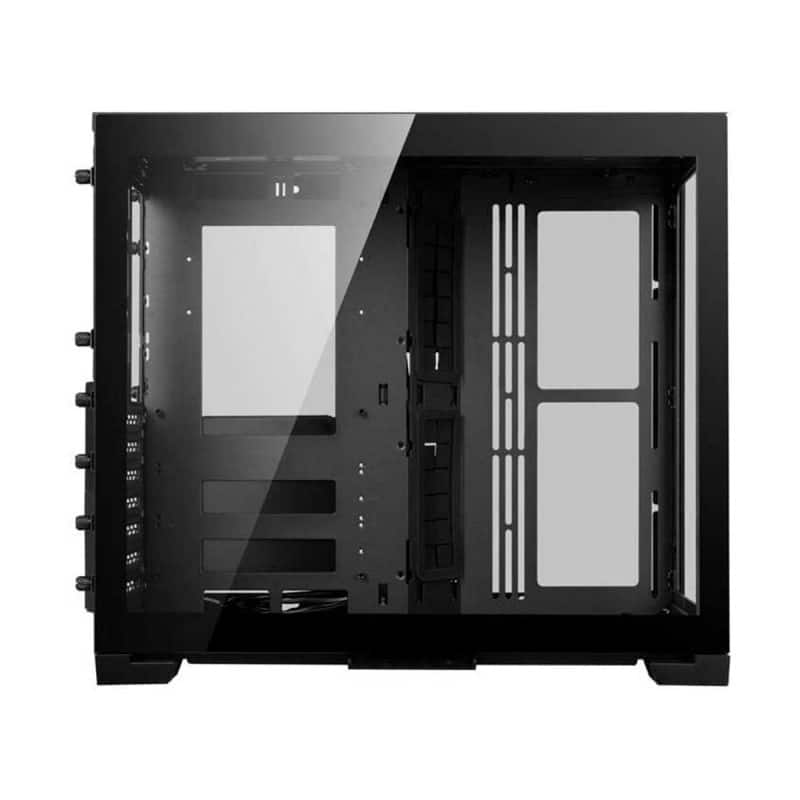

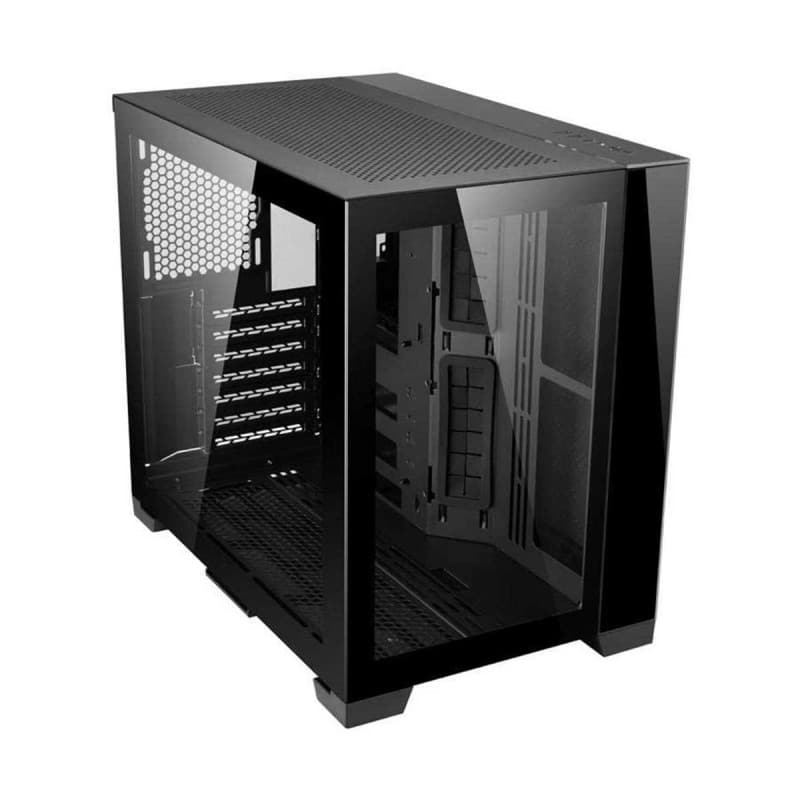

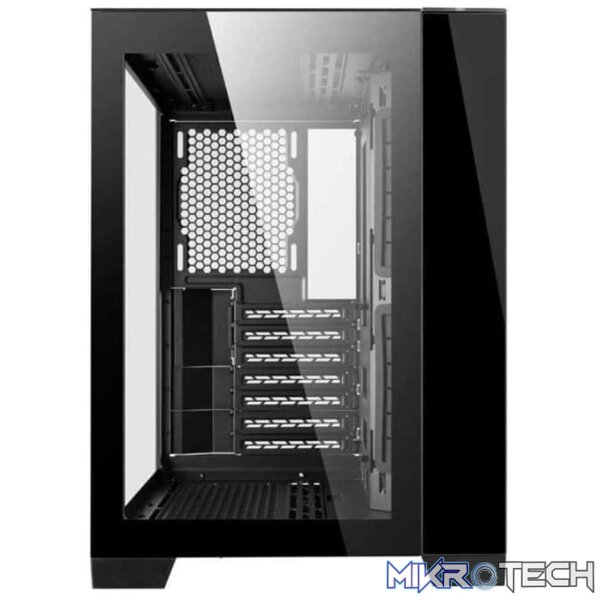

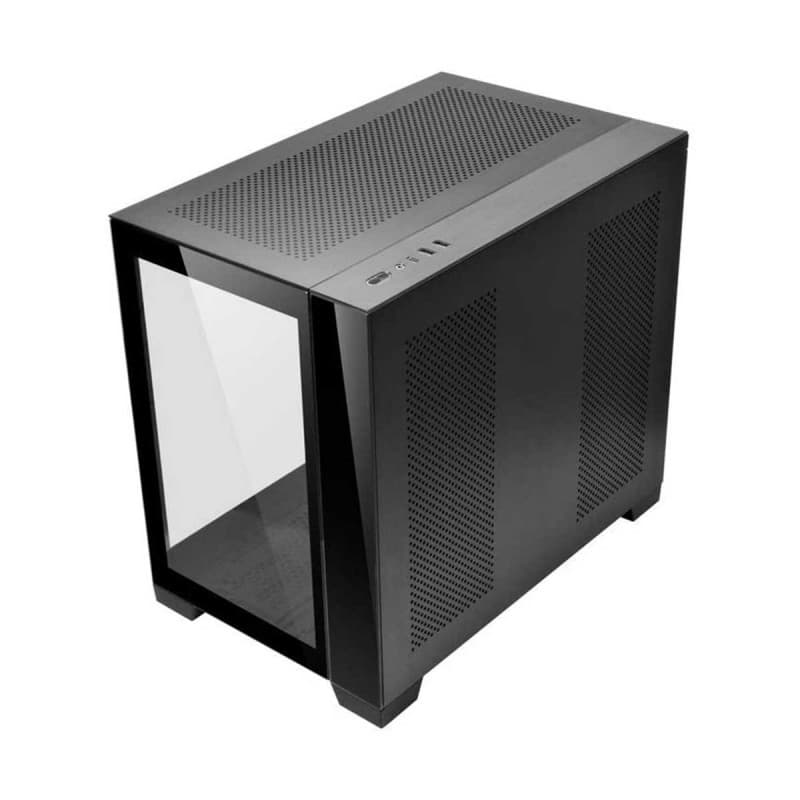

O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of users choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.
Features:
THINK BIG, BUILD SMALL !
With the capacity and flexibility of the O11D Mini, you can expand your creativity and water-cooling potential inside its compact frame.
CONFIGURATION OF YOUR CHOICE MODULAR BACK PANEL
Decide how many expansion slots you need. Calculate the size of your fans & accessories.
Pick your motherboard type. 3 kinds of back panels to meet your demand!
SIDE RADIATOR CONFIGURATION WITH LONG GPU
The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.
WITH WATER COOLING IN MIND MODULAR PUMP STAND
Friendly to custom water cooling users, the three different pump stands included can accommodate different scenarios.
FLAT PUMP STAND
IDEAL FOR MOUNTING THE PUMP DIRECTY AT THE BOTTOM OF THE CASE.
ELEVATED PUMP STAND
MOUNTING THE PUMP NEXT TO THE 240/280MM RADIATOR. EASILY MATCH INTERFACE.
FLOATING PUMP STAND
MOUNTING ABOVE A 120MM FAN ON A RADIATOR. EASILY MATCH INTERFACE.
EXQUISITE APPEARANCE
With a blend of brushed aluminum and tempered glass, the O11D Mini not only looks classic and modern, but also has a high-quality feel and touch on the exterior.
A SERIES OF O11 DYNAMIC
As a member of the O11 family, the O11D Mini is designed to support a maximum number of radiators to optimize the water-cooling potential, and this even with a smaller frame.
DUAL-CHAMBER DESIGN FOR CABLE MANAGEMENT
Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.
COMPLETE DUST PROTECTION
All 3 ventilation intake sides are equipped with magnetic dust filters and a removable dust tray
to prevent the dust from entering the case.
| Product Name | O11 Dynamic MINI |
|---|---|
| MODEL | O11D Mini-X |
| COLOR | Black |
| DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm |
| MOTHERBOARD | ATX/ Micro-ATX/ Mini-ITX |
| PSU | SFX/ SFX-L |
| MATERIAL | 0.8mm SPCC (body) 1mm SPCC (interior, back panel) 4 mm Tempered Glass 2mm Aluminum (top and left panel) |
| FAN SUPPORT | Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm |
| RADIATOR SUPPORT | Top: 360mm or 280mm or 240mm radiator Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator |
| GPU LENGTH CLEARANCE | 395mm |
| CPU COOLER HEIGHT CLEARANCE | 170mm |
| VGA Length | 370mm |
| DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) |
| EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) |
| IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button |
| DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side |
