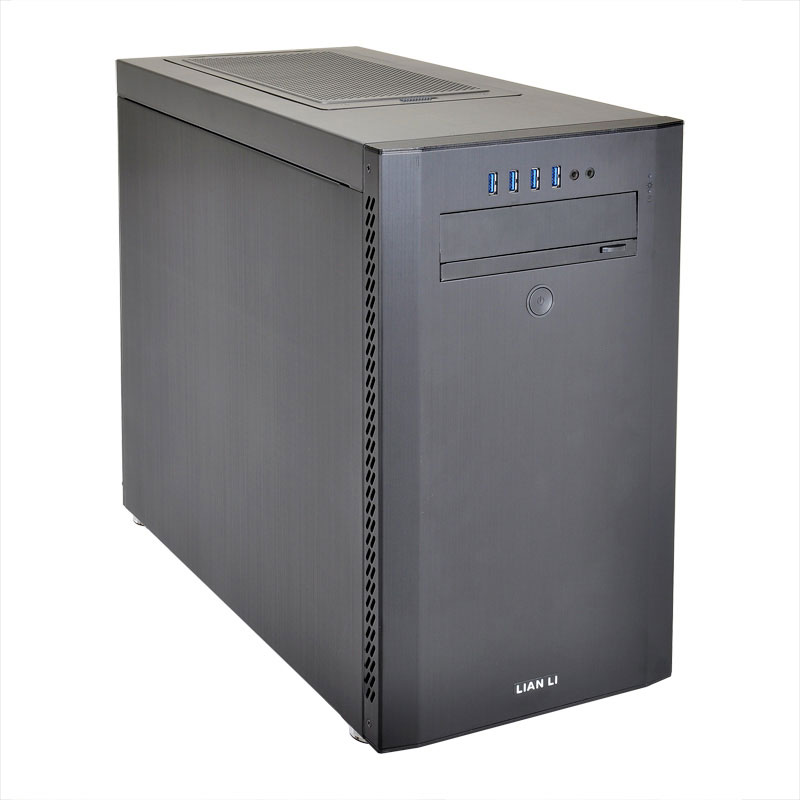

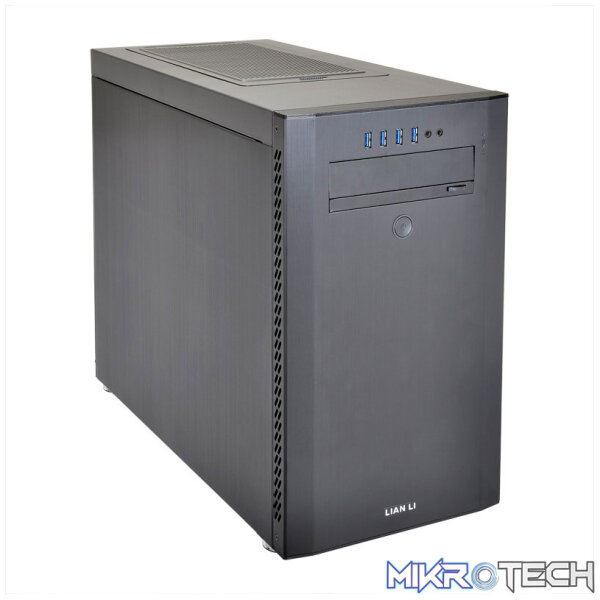

Product Description
Features:
Thermal solution
- The pc-a51 sports a reverse airflow design in which cool air is pulled into the chassis from the rear filtered 120mm fan. The front 140mm fan above the front-mounted psu pulls hardware-damaging hot air out of the case.
- Vent holes on the front panel
- Rear fan filter
- Top radiator mount with filter
New tool-less hdd tray system
- Hard disk installation is quick and easy.
- Supports five 3.5 or 2.5 hdds.
- The hdd tray can be removed to make more room for high-end graphics cards.
- Front-mounted psu
- The front mounted psu allows the pc-a51 to be shorter and smaller while still providing full hardware capabilities.
Integrated water cooler support
- The pc-a51 is designed to support the majority of commercially available integrated water coolers.
Compatibility
- Graphics card length: 280mm ~ 400mm (max)
- Psu length: 160mm
- Cpu cooler height: 175mm
- 240mm or 280mm radiator
- Cable management
- 30mm
- Anit-vibration clips
- Usb 3.0 / hd audio
- High-quality aluminum feet
- Rubber grommet for cables
- Vented pci brackets
- Liquid cooling holes
- Air filter
- Tool-less optical drive mounting
Product Specifications
| Case Type | Mid Tower Chassis |
|---|---|
| Dimensions | (W)230mm (H)393mm (D)489mm |
| Color | Black Silver Internal Black(A51WX) Red & Black(A51WRX) |
| Front bezel Material | Aluminum |
| Side Panel | Aluminum A51WX / A51WRX(Transparent) |
| Body Material | Aluminum |
| Net Weight | 4.9kg |
| 5.25" drive bay (External) | 1 with Cover (C-02-1) |
| 3.5" drive bay (External) | None |
| HDD bay | 3.5″ / 2.5″ HDD x5 2.5″ HDD x1(base) |
| Expansion Slot | 7 |
| Motherboard | ATX Micro-ATX |
| System Fan (Front) | 140mm Fan |
| System Fan (Rear) | 120mm Fan |
| System Fan (Top) | 140mm or 120mm Fan x2 (Optional) |
| I / O Ports | USB3.0 x 4 HD Audio |
| Maximum Compatibility | VGA Card length: 280mm – 400mm(Max) PSU length: 160mm CPU cooler height:175mm 240mm or 280mm Radiator Cable Management Space: height 30mm |
| PSU | ATX PSU (Optional) |
| Package Dimensions | (W)470mm (H)290mm (D)588mm |
| Gross Weight | 5.5kg |
| MEAS | 3 CUFT |
