Features:
Thermal-Flow
The power supply units in the front, 120mm fan (rear) intake cool air into the system, 120mm fan (HDD cage) exhaust the hot air out of the system, through the vent holes on the front panel.
Front Mounted PSU
Chassis become smaller, but still easy to be service, the perfect ballance for space & hardware performance.
Supports three 3.5″ HDDs and two 2.5″ HDDs
HDD cage, using thumb screws with rubber suspension, supports three 3.5″ HDDs.
Tool-less PCI Design x8
vented PCI brackets, using thumb screws.
USB3.0 Multi-media I/O ports
Users can easily access USB3.0 (20 pin Header plug) and HD Audio ports.
Tool-less Optical Drive Mounting
Supports two stanrdard 5.25″ optical Drives.
Maximum Video Card Size
280mm

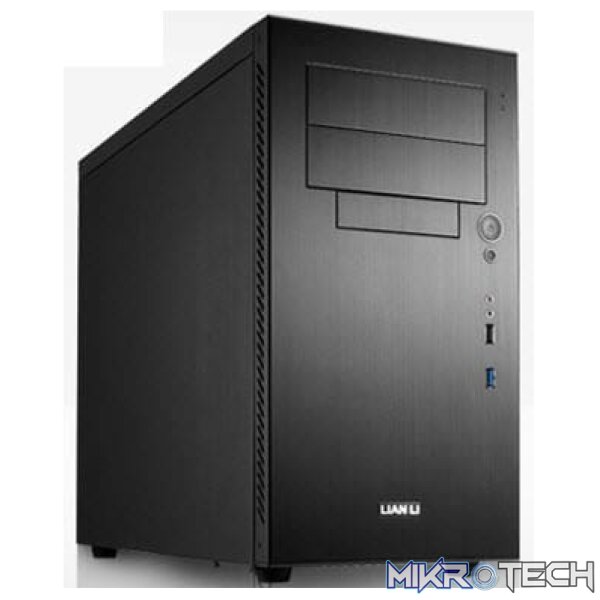

| Model | PC-A05FN |
|---|---|
| Case Type | Mid tower chassis |
| Dimensions | (W) 210mm x (H) 385mm x (D) 500mm |
| Front bezel Material | Aluminum |
| Color | Black |
| Side Panel | Aluminum |
| Body Material | Aluminum |
| Net Weight | 4.4KG |
| 5.25" drive bay (External) | 2 |
| 3.5" drive bay (External) | 1 |
| HDD bay | 3.5” HDD x 3 / 2.5” HDD x 2 |
| Expansion Slot | 8 |
| Motherboard | ATX / Micro-ATX / Mini-ITX |
| System Fan (Front) | 120mm Fan x 1 |
| System Fan (Top) | 140mm Fan Hole x 1 ( Fan not included ) |
| System Fan (Rear) | 120mm Fan x 1 |
| I/O Ports | USB 3.0 x 1 / USB 2.0 x 1 / HD Audio |
| Maximum Video Card Size | 280mm |
