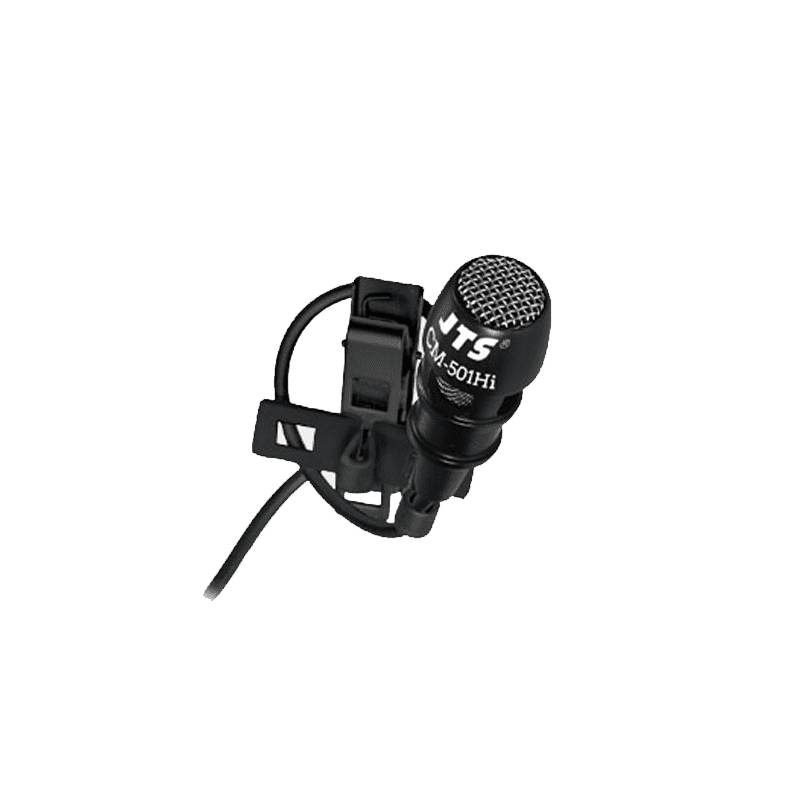

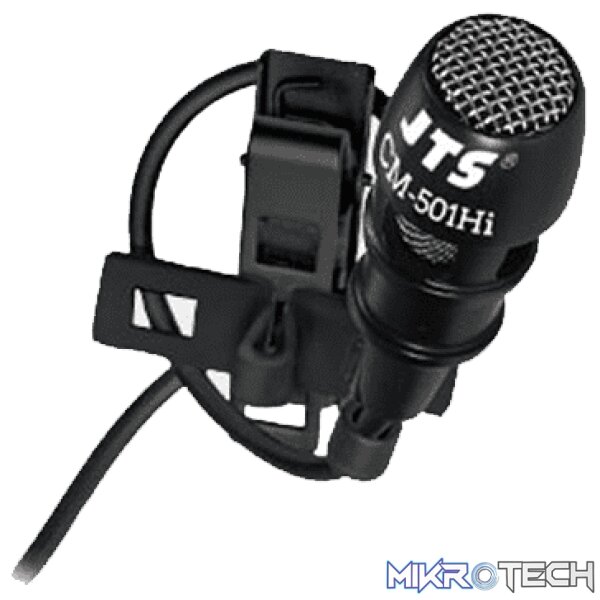

Jts – Cm-501Hic4 Condenser Lapel Microphone With 4 Pin Mini Xlr

The CM-501HiC4 deploys a high sensitivity capsule with unidirectional pick up pattern. It provides maximum gain before feedback. Wide frequency response and dynamic range assure excellent sound reproduction. The latest clip set, CLP-258, provides versatile application. Single and dual microphone pick up are at your choice. CLP-258 assures optimal
picking up for different dressings.

SPECIFICATIONS:

• Type :
  Uni-directional Condenser
•
  Frequency Response :
  100 to 15,000Hz
•
  Polar Pattern :
  Cardioid
•
  Output Level(at 1,000Hz) :
  -54±3 dB* (2mV) *0dB=1V /?bar
•
  Impedance Rated impedance is :
  3.7k?
•
  Max. SPL for 1%THD :
  115dB
•
  Standard Operating Voltage :
  5Vdc
•
  Operation Voltage Range :
  3~10 Vdc
•
  Current consumption :
  Max. 0.5mA
•
  Output Connector:
  TA4F
•
  Net :
  Weight 21.5g
