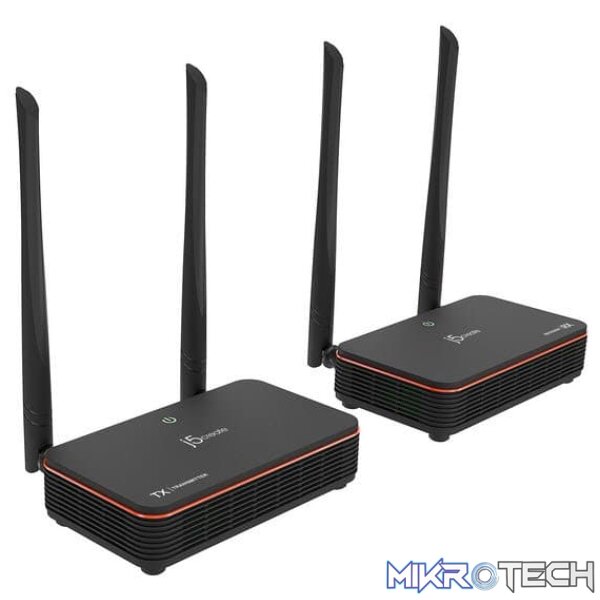

j5create JVAW50 Wireless Display HDMI & USB Extender
R3,619.99 incl. VAT
Only 1 left in stock
Overview:
The JVAW50 HDMI™ over Wireless Extender includes a transmitter and receiver kit. It can send a high definition video and audio signal to an HDMI™ enabled TV set, projector or LCD PC monitor display device with receiver distance up to 60 meters and nearly zero latency.
Users can extend other HDMI™ sources, including DVD players, Blu-ray™ players, PCs, notebooks and gaming machines (ex. Sony® PS4®, Nintendo Switch™). The JVAW50 is fully HDCP compliant via HDMI™, supporting resolutions up to 1080p and stereo digital audio. The extender also supports the transfer of IR remote control signals to the receiver side.
Basic product functions and application scenarios: converts the passage of the HDMI™ or IR signal into a wireless signal, converting it into a flexible means of transmission and reception. It addresses the issue of the TV being too far away from the host by eliminating the need for wires, allowing the TV to be moved outdoors for long distance use.
During meetings, projectors or large touch screens mounted high above can also be used to create a wireless conference room and/or a wireless media environment.
Features:
- Wireless 5G: Stable connection, high quality, and low latency under 60 ms
- Antenna 5 dB 2 x 2: Longer distance up to 200 ft (60m)
- Supports the transfer of IR remote control signals
- Supports 480p/576p/720p/1080p/480i/576i/720i/1080i
- Supports 1080p HDMI 1.3 and HDCP 1.2
- A flexible audio/video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
- Compatible with PS4® and Nintendo Switch™ game systems, Blu-ray™ players, set-top boxes and more
- Supports USB™ 2.0 wireless extender unit (works with USB™ keyboards and mice)
| HDMI Connector | Type-A 19-pin female input x1 |
|---|---|
| LED | LED x1 (with 3 colors) Red: Power on Orange: Waiting for pairing Green: TX / RX pairing completed Red flashing light : TX / RX pairing |
| Enclosure Type | Plastic |
| Enclosure Color | Black |
| Enclosure Dimensions | 135 x 76 x 33.5 mm |
| Product Weight | 150.5g |
| Power Supply | Input: 100-240V AC, 50-60 Hz, 0.4A Output: 5V DC, 2A, 10W |
| Power Consumption | 5V DC, 6.5W |
| Operational Temperature | +32 to +104°F (0 to +40°C) |
| Storage Temperature | -40 to +158 °F (-40 to +70 °C) |
| Relative Humidity | 20% to 80% RH, noncondensing |
| Regulatory Compliance | CE, FCC, RCM, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE |
| HDMI Compliance | HDMI v1.3 |
| HDCP Compliance | HDCP 1.2 |
| Video Impedance | 100 ? |
| HDMI Audio Formats | Stereo digital audio |
| Video Resolution | Input Resolution Range: 640×480 to1600x1200 and 1920×1080, 480p, 576p, 720p, 1080p @ 60/50Hz Output Resolution Range: – 640×480, 800×600, 1024×768, 1280×768, 1280×800, 1280×1024, 1360×768, 1366×768, 1400×1050, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1080 – HDTV 480p, 576p, 720p, 1080p, 480i, 576i, 720i, 1080i |
| Wireless Frequency Range | IEEE 802.11ac (5 GHz Band I, Band IV, CE only Band I) |
| Wireless Channel Bandwidth | 20 MHz or 40 MHz or 80 MHz |
| RF Output Power | +15 dBm +/-1 dBm |
| Distance | Up to 60 meters |
| Antenna Type | Dual external antenna (+5 dBi) |
| Security | 128/256 bit AES based encryption and WPA2 authentication protocol to protect data. |
| IR Return Frequency | 30 – 60 kHz |
| ESD Protection | Human body model: air-gap discharge: ±8 kv contact discharge: ±4 kv |
| OVP Protection | Voltage protection up to DC 20 volts |
