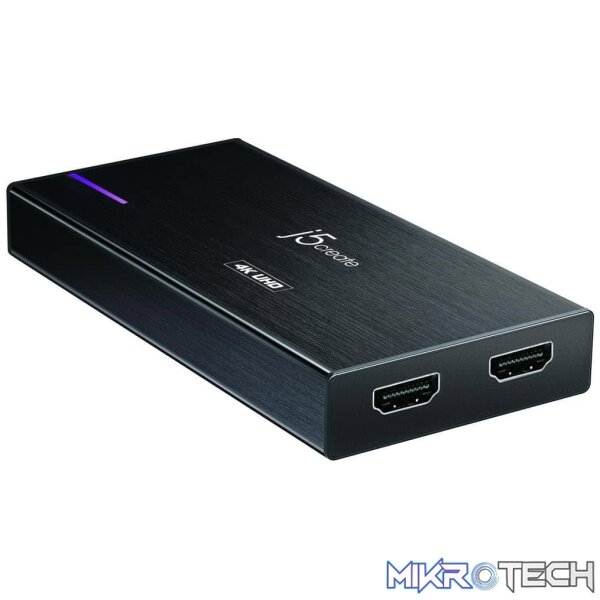

j5create JVA04 HDMI to USB Type-C Game Capture Station
R2,599.99 incl. VAT
Only 8 left in stock
Product Description
Overview:
Our Game Capture Station, the JVA04, supports 1080p @ 60 fps Full HD video capturing with 4K @ 60 fps input and pass-through. Easily run on your Windows® or macOS® laptop/desktop with no driver needed. Supports live commentary streaming, party chat voice mix and mic in for newer consoles. It is compatible with other video editing software, perfect for assisting quick, live video editing.
Features:
- 4K pass-through support (4K @ 60 fps)
- Capture resolution up to 1080p @ 60 fps
- Audio recording mixed – 3.5 mm Aux and Mic in
- Supports party chat voice for newer consoles
- Driver free on Windows® and macOS®
- Low power consumption with high performance
- Free j5create capture software allows you to capture and stream games on your PC or notebook
- Aluminum design and LED light
Product Specifications
| OS | Windows 7/8.1/10, macOS 10.8 or later, Linux Driver Installation required on Windows 7 |
|---|---|
| Video Input | HDMI (up to 4K @ 60 fps) |
| Video bypass | HDMI (up to 4K @ 60 fps) |
| Video Capture Resolution | 480i @ 60 fps 576i @ 50 fps 480p @ 60fps 4576p @ 50 fps 720p @ 50 fps 720p @ 60 fps 1080i @ 50 fps 1080i @ 60 fps 1080p @ 25 fps 1080p @ 30 fps 1080p @ 50 fps 1080p @ 60 fps |
| USB | Interface: USB Type-C 3.1 Gen1 Device: UAC, UVC |
| Video Loop Resolution | 480i @ 60 fps 576i @ 50 fps 480p @ 60 fps 576p @ 50 fps 720p @ 50 fps 720p @ 60 fps 1080i @ 50 fps 1080i @ 60 fps 1080p @ 24 fps 1080p @ 25 fps 1080p @ 30 fps 1080p @ 50 fps 1080p @ 60 fps 4Kp @ 60 fps *Does not support HDR, 1440p, ultra-wide monitor |
| Audio In/Out | 1. Headset: 4-pole 3.5 mm phone jack (Mic in/Audio out) *Stereo microphone supported 2. Game controller: 4-pole 3.5 mm phone jack (Mic out/Audio in) |
| Audio Frequency | 48 KHz |
| Compression | USB 3.0: MJPG/YUV 4:2:2 *Uncompressed USB 2.0: MJPG *Up to 1080p @ 60 fps |
| Encode Format | MP4, H.264 / AVC + AAC |
| LED Light | Power on: Purple USB 3.0 connection: Blue (Uncompressed) USB 3.0 connection: Purple (MJPG) USB 2.0 connection: Orange |
| Power Consumption | USB 3.0 Normal: 850 mA, Max:1050 mA USB 2.0 Normal: 800 mA, Max:1000 mA |
| Case Material | Aluminum |
| Dimensions | Main body: 133.8 (W) x 64.5 (H) x 17.5 (D) mm |
| Weight | Approximately: 142.5g |
| Storage Temperature | -10 – 65°C |
| Storage Humidity | 85% non-condensing |
| Operation Temperature | 0 – 40°C |
| Operation Humidity | 80% non-condensing |
